Compressor Inlet Sensor: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain refrigerant, drain. Refer to: REFRIGERANT, DRAINING

Remove luggage compartment, front. Refer to: LUGGAGE COMPARTMENT, FRONT

Courtesy of VOLVO CARS CORPORATION

NOTE:

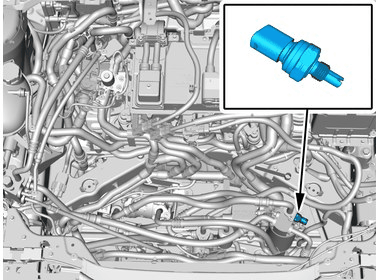

Orientation view

CAUTION:

Make sure that all openings are sealed.

CAUTION:

Note the routing of the lines and hoses.

Courtesy of VOLVO CARS CORPORATION

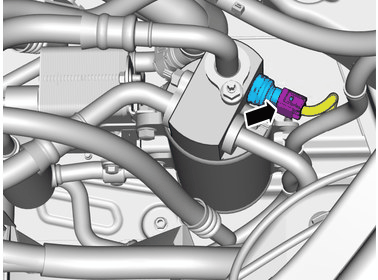

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

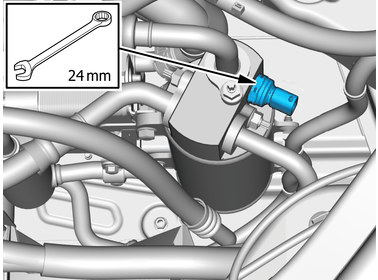

Remove the part carefully

Torque: A/C pressure and temperature sensor, 7Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Be extra careful when removing or installing this component.
