Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove the A/C compressor. Refer to: AC COMPRESSOR

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

NOTE:

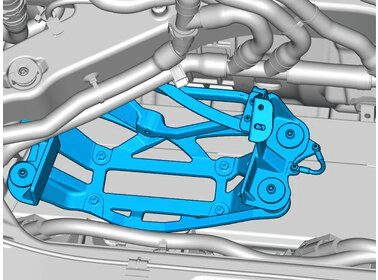

Orientation view

Courtesy of VOLVO CARS CORPORATION

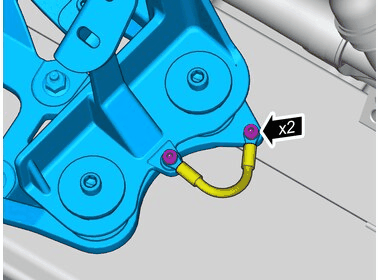

Remove the screws.

Torque: Ground cable screw, to bracket, 3.5Nm
Torque: M8, 24Nm

Remove the marked part.

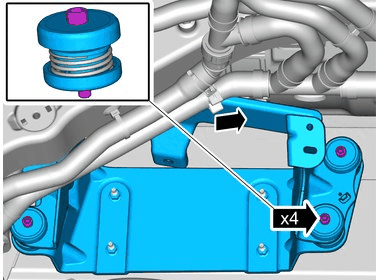

Courtesy of VOLVO CARS CORPORATION

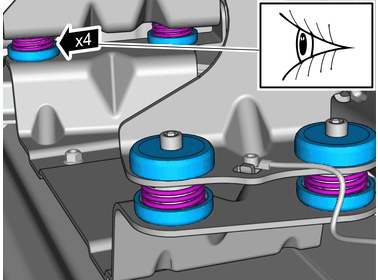

Remove the screws.

Torque: Spring rubber bushing screw, to bracket, 15.5Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

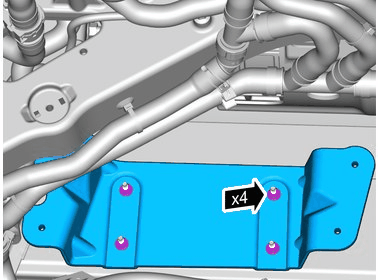

Remove the nuts.

Torque: M6, 10Nm

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.

CHECK

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components is positioned correctly.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

NOTE:

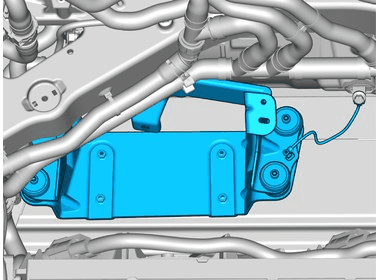

Orientation view

Courtesy of VOLVO CARS CORPORATION

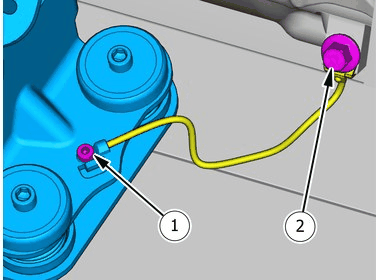

Remove the screws.

Torque: Ground cable screw, to bracket, 3.5Nm

Remove the marked part.

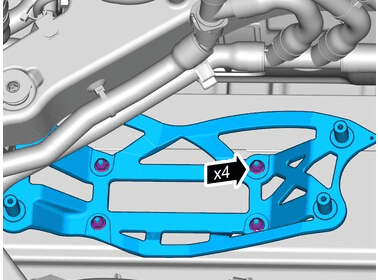

Courtesy of VOLVO CARS CORPORATION

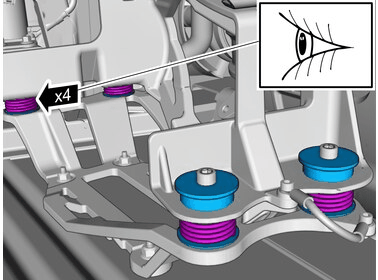

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

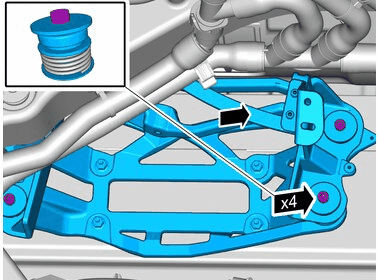

Remove the nuts.

Torque: M6, 10Nm

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.

CHECK

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components is positioned correctly.

ALL VEHICLES

Install the A/C compressor. Refer to: AC COMPRESSOR
