Window Control Switch Front [2018-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

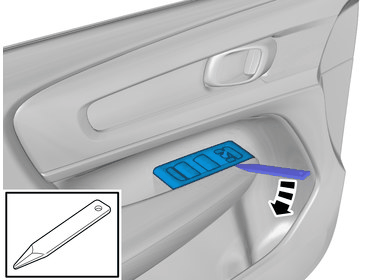

GLL1030771Courtesy of VOLVO CARS CORPORATION
NOTE:

Only use moderate force.

Remove the marked part.

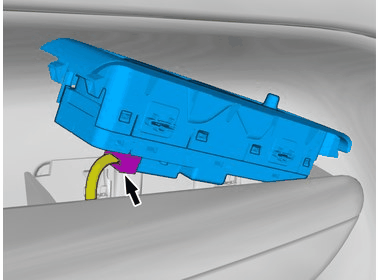

GLL1030907Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.
