OBD Firewall Module (OFM) [2018-2020]: Removal

Remove front seat. Refer to: FRONT SEAT

Courtesy of VOLVO CARS CORPORATION

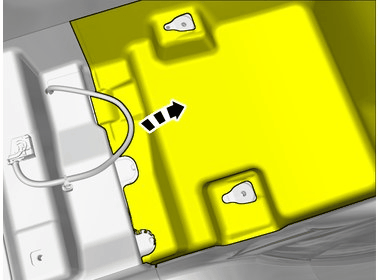

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

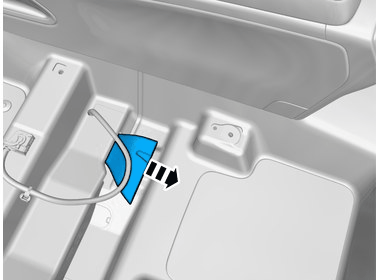

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

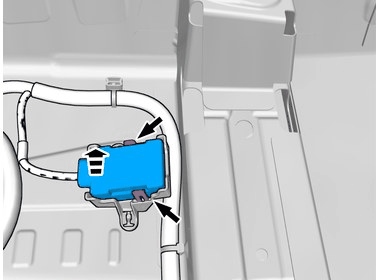

Depress the locking device.

Disconnect the connector.
