Memory Systems

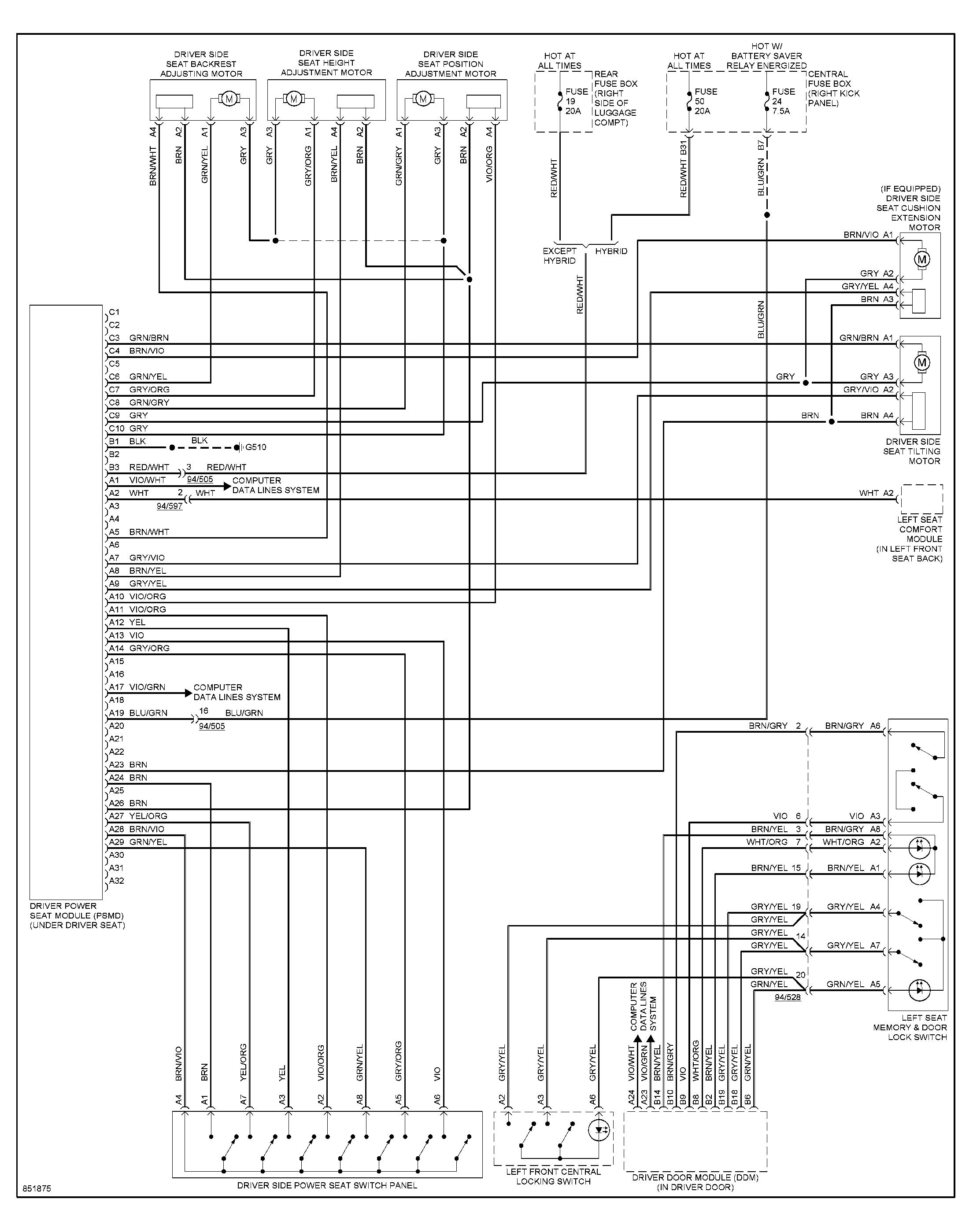

Fig 1: Driver"s Memory Seat Circuit

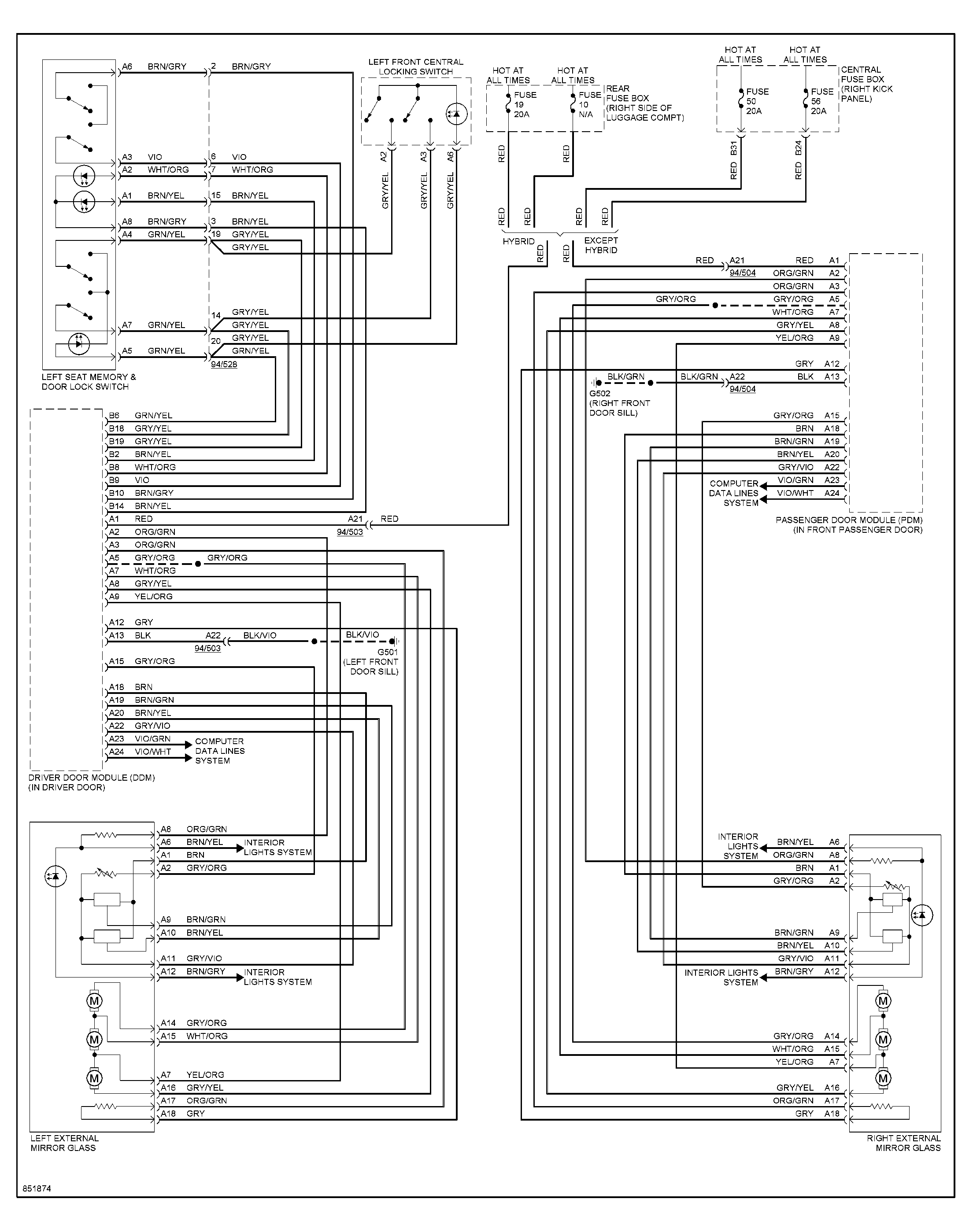

Fig 2: Memory Mirrors Circuit

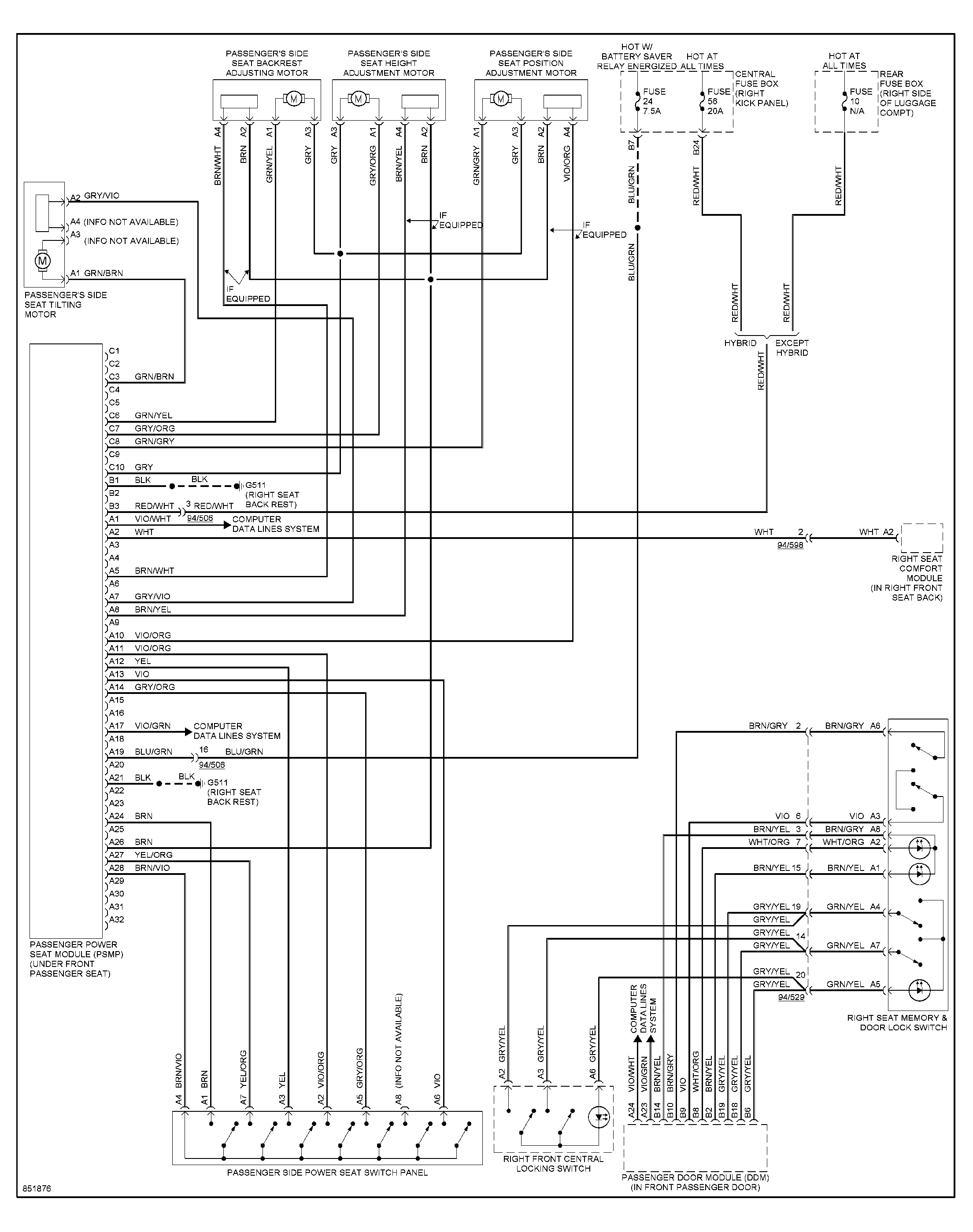

Fig 3: Passenger"s Memory Seat Circuit
