Computer Data Lines

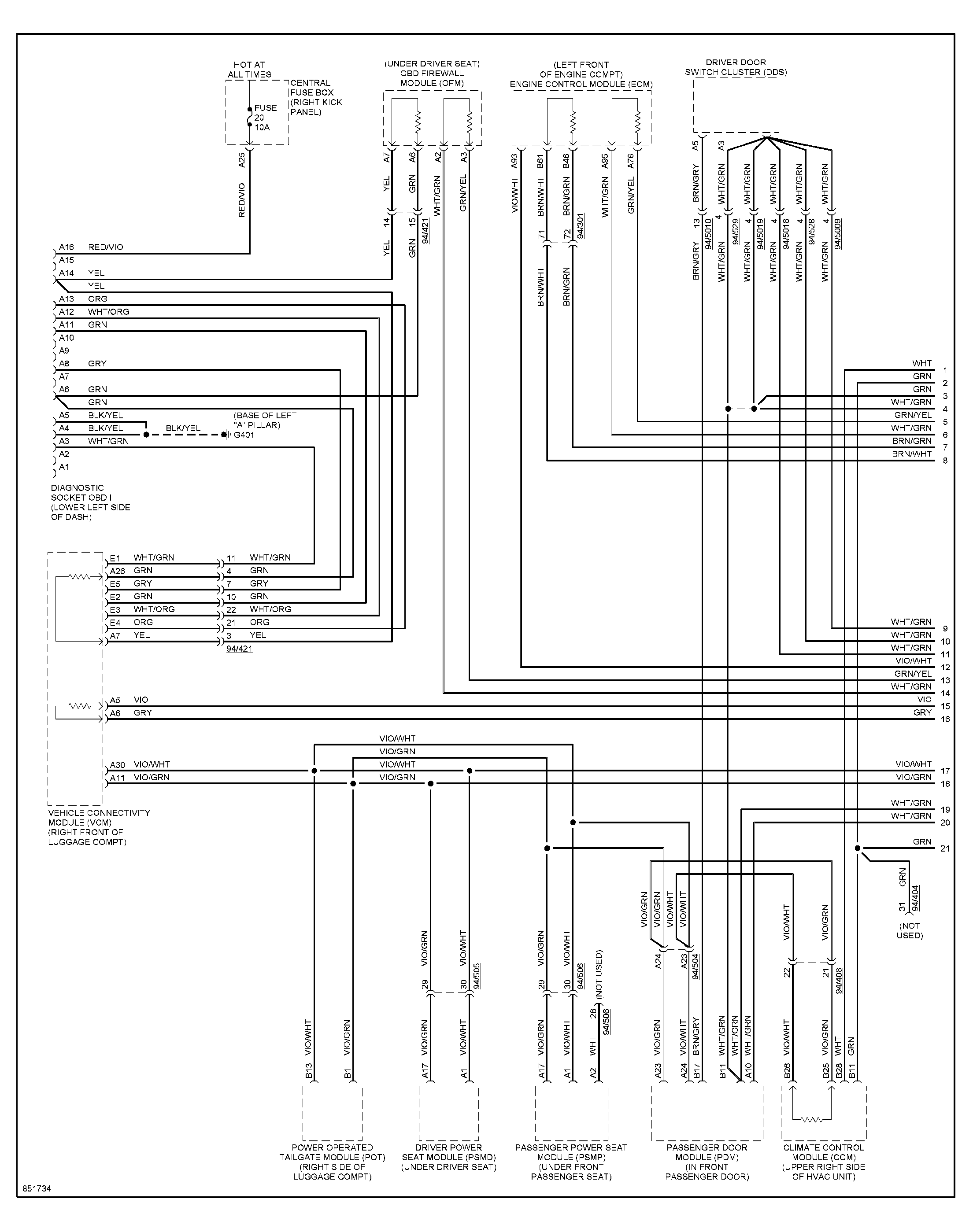

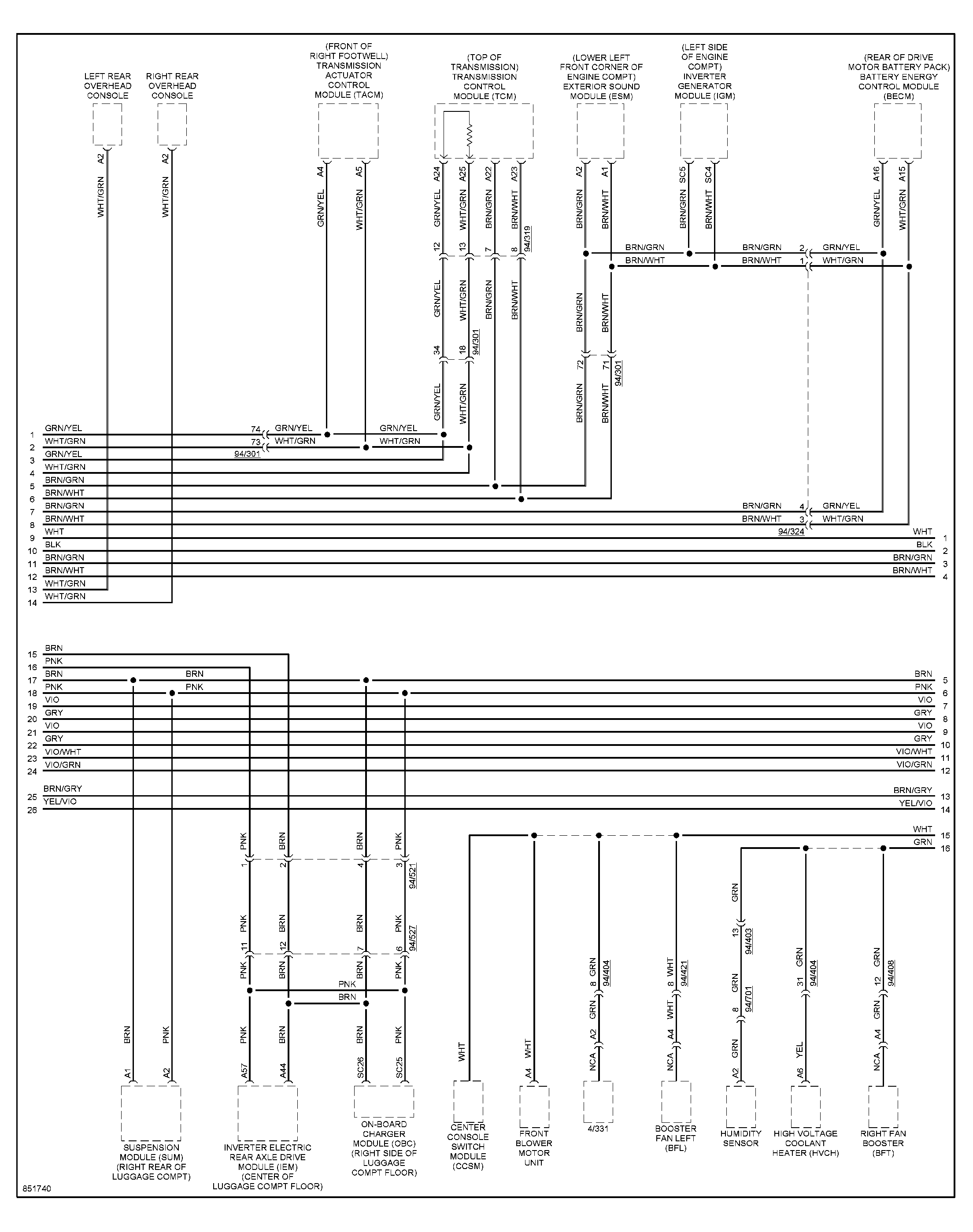

Fig 1: Computer Data Lines Circuit, Except Hybrid (1 of 5)

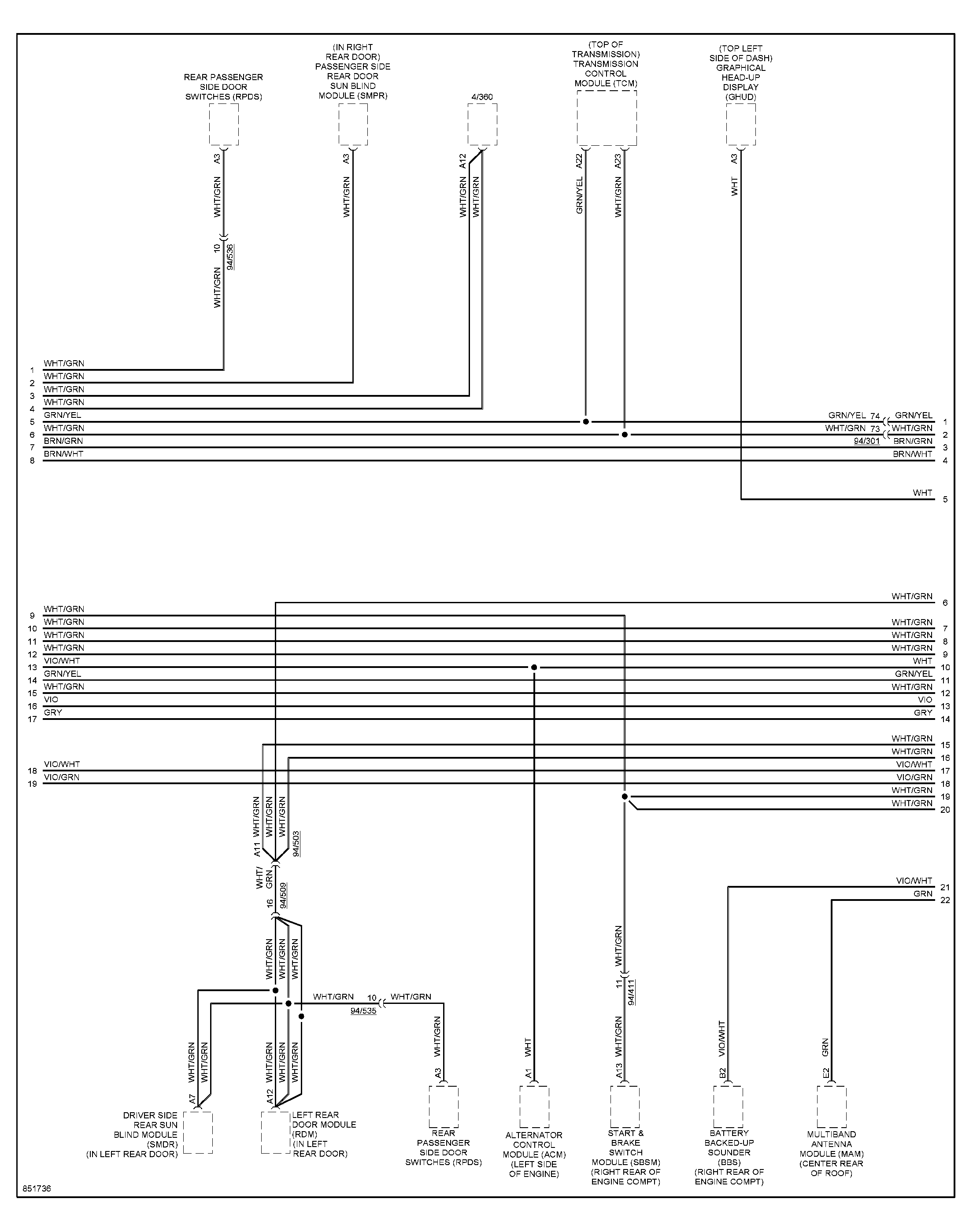

Fig 2: Computer Data Lines Circuit, Except Hybrid (2 of 5)

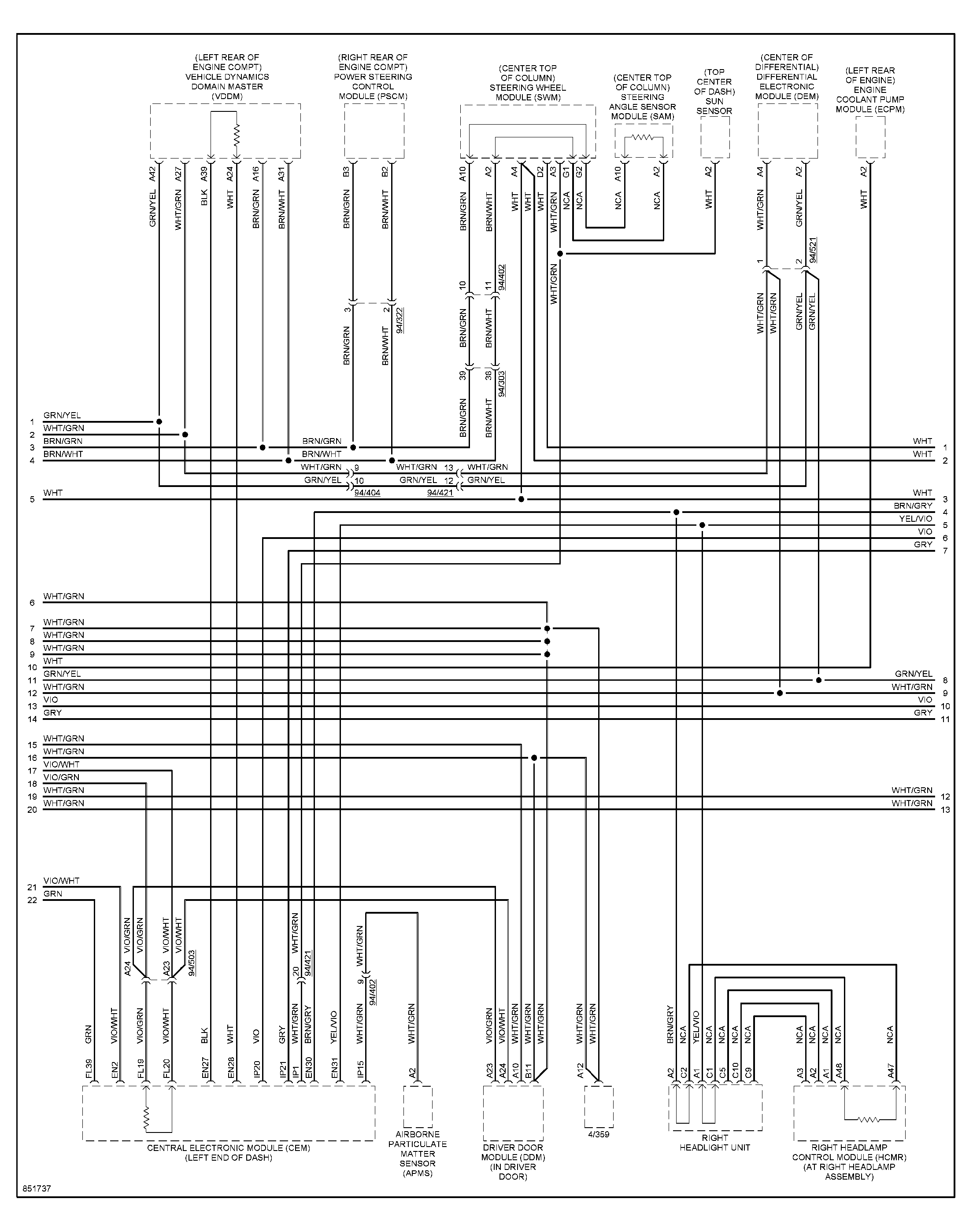

Fig 3: Computer Data Lines Circuit, Except Hybrid (3 of 5)

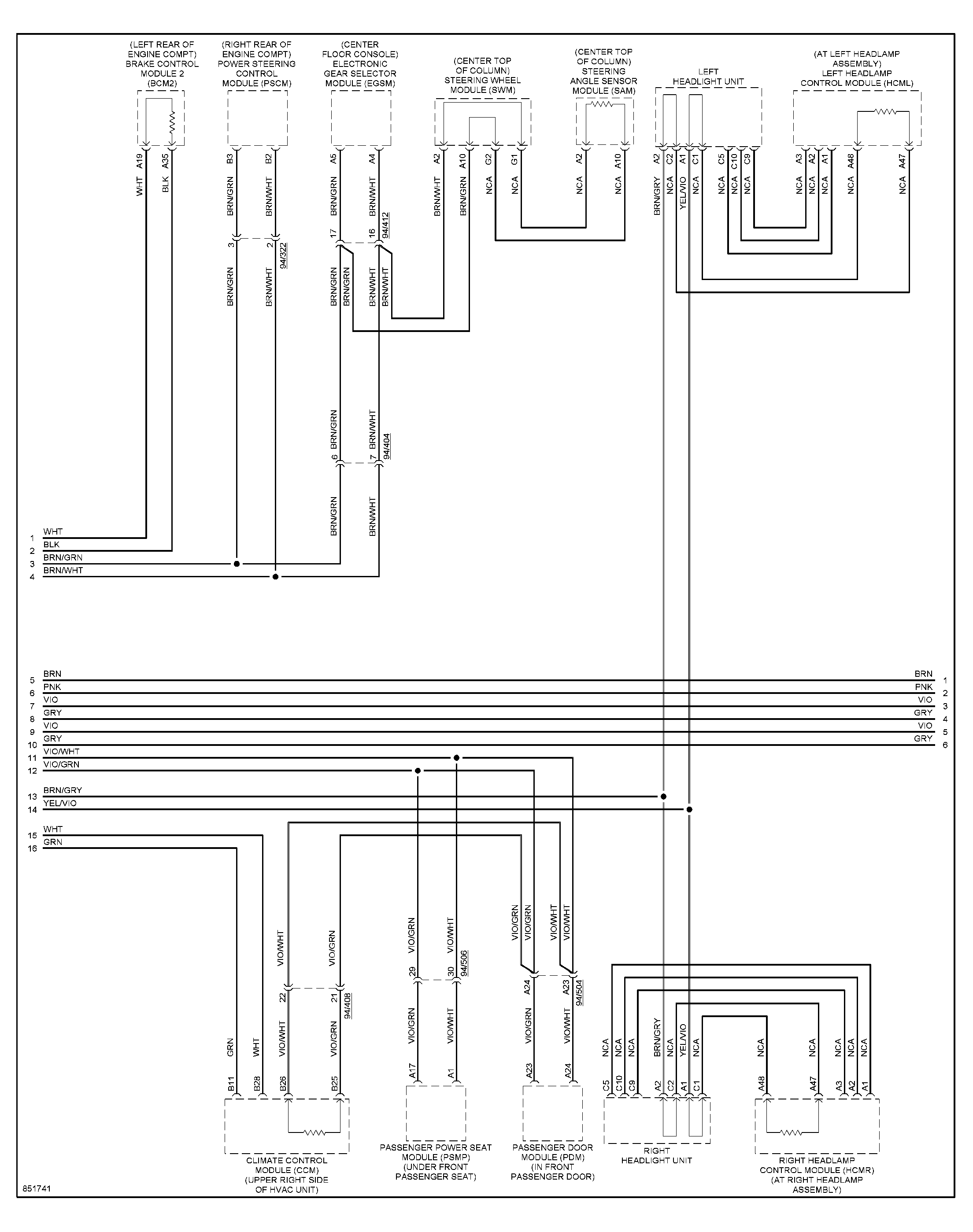

Fig 4: Computer Data Lines Circuit, Except Hybrid (4 of 5)

Fig 5: Computer Data Lines Circuit, Except Hybrid (5 of 5)

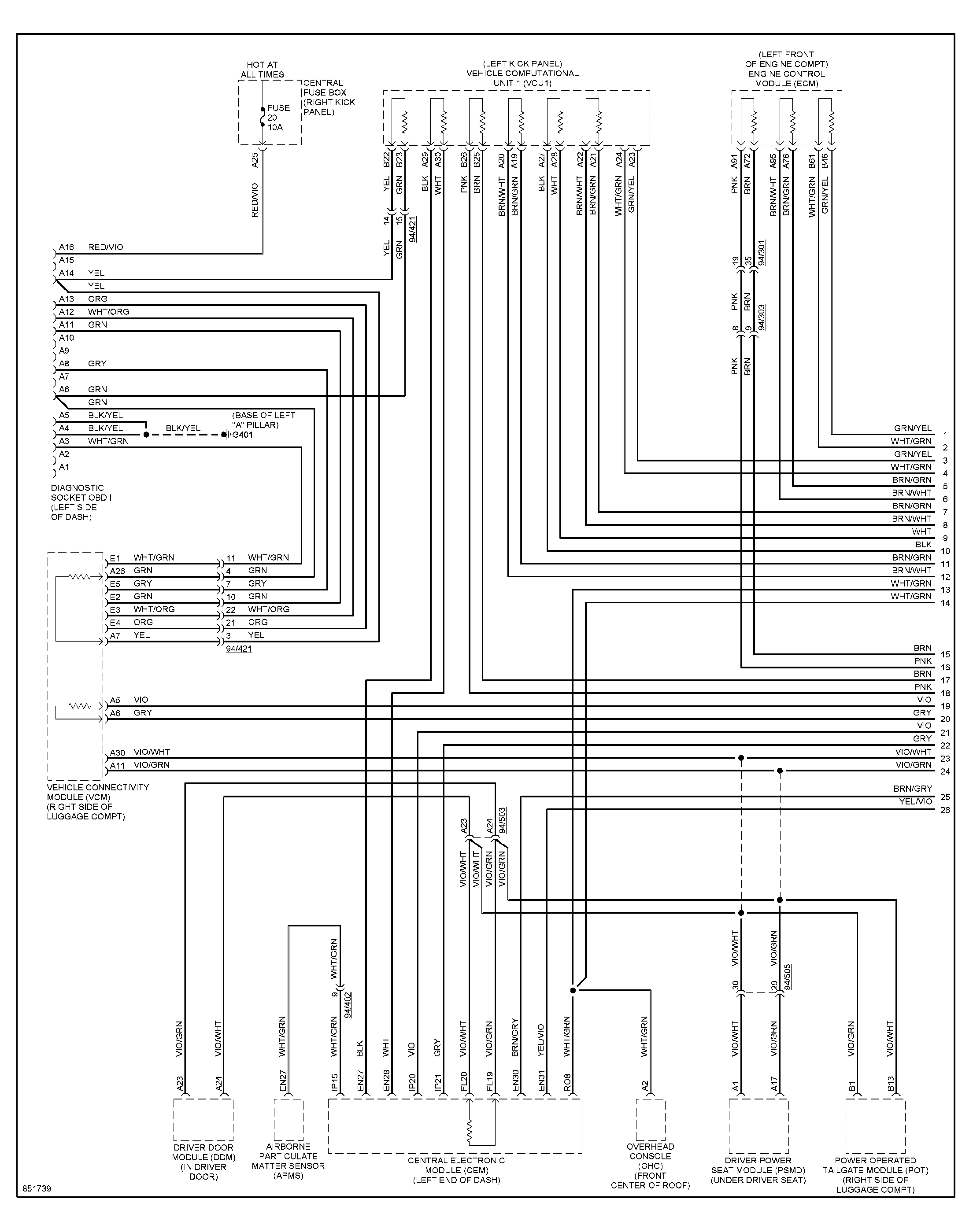

Fig 6: Computer Data Lines Circuit, Hybrid (1 of 4)

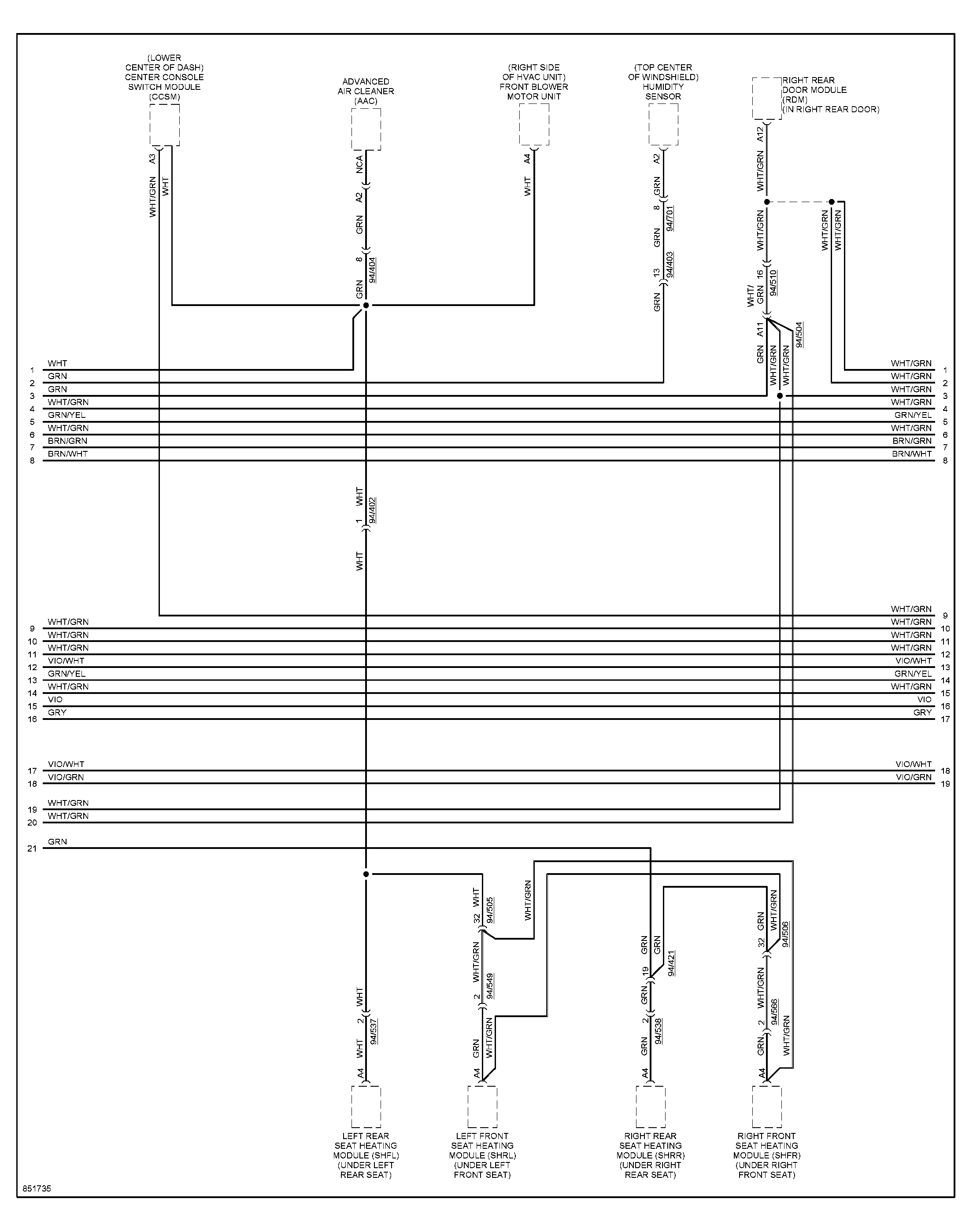

Fig 7: Computer Data Lines Circuit, Hybrid (2 of 4)

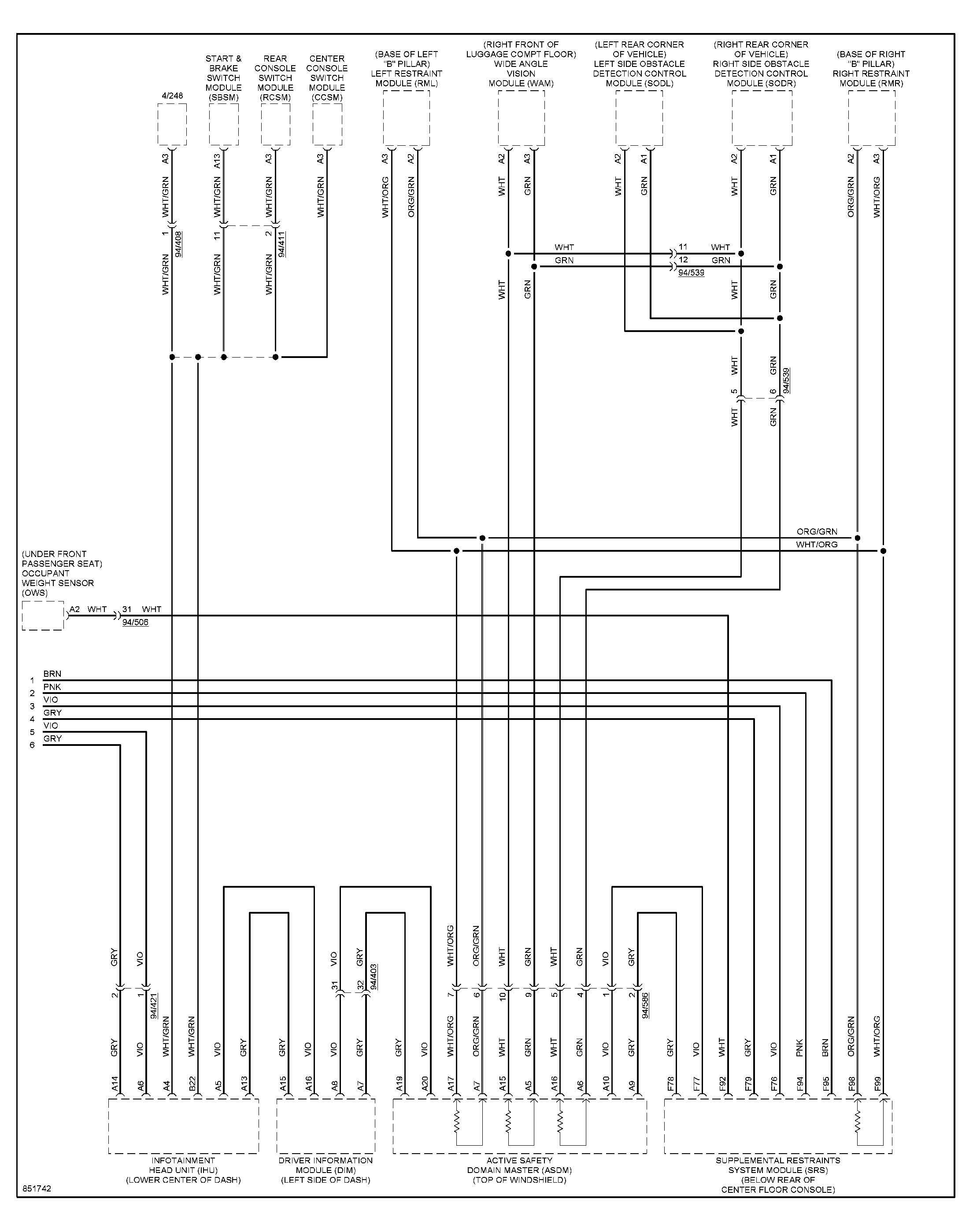

Fig 8: Computer Data Lines Circuit, Hybrid (3 of 4)

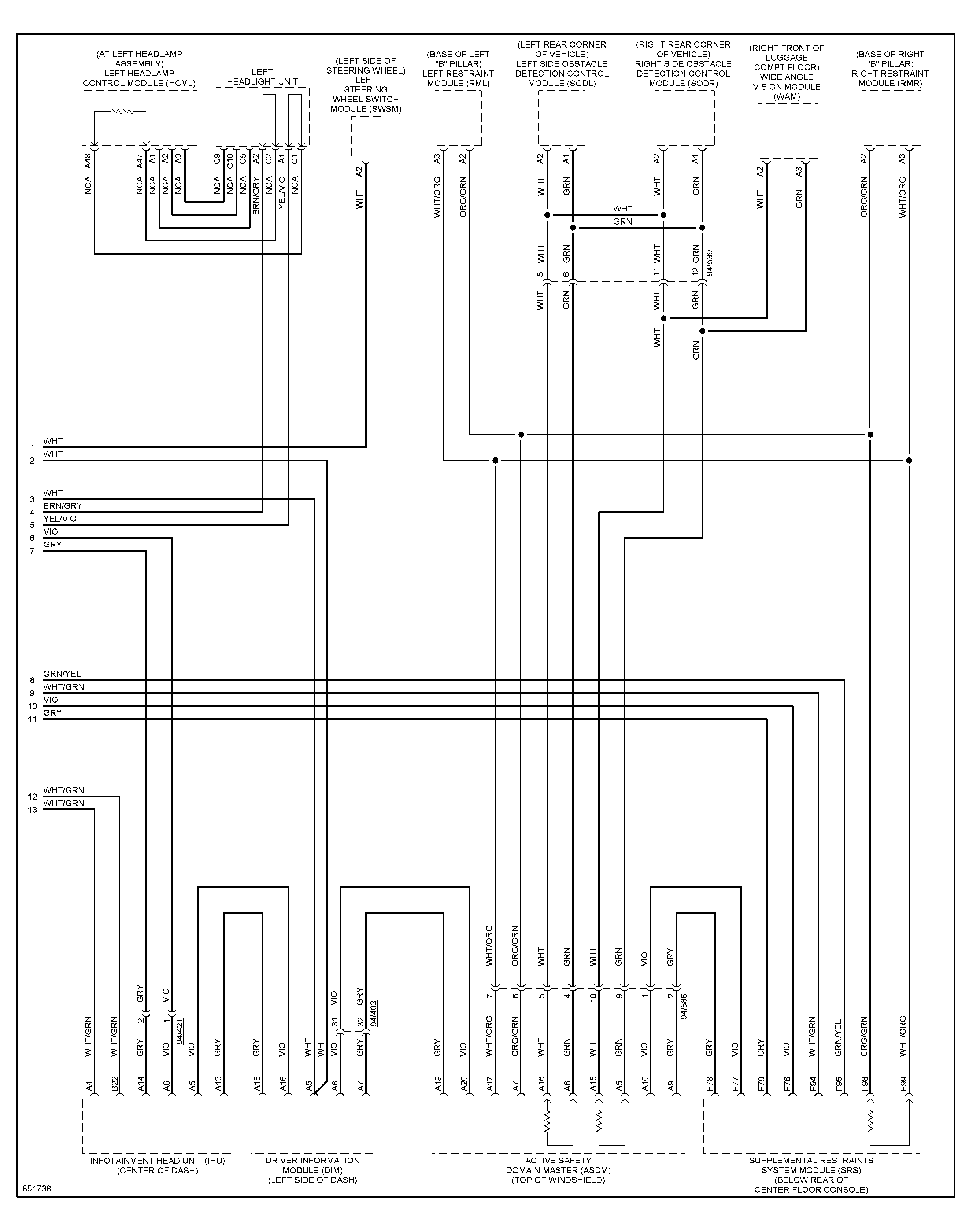

Fig 9: Computer Data Lines Circuit, Hybrid (4 of 4)
