Transmission [2021, B420T, AWF8G55 AWD]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES .

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION	951 2923 Hydraulic hole cylinder  Tool number:  951 2923 Tool description:  Hydraulic hole cylinder Tool boards:  65
Courtesy of VOLVO CARS CORPORATION	999 7251 Press tool  Tool number:  999 7251 Tool description:  Press tool Tool boards:  40
Courtesy of VOLVO CARS CORPORATION	999 7721 Fixture  Tool number:  999 7721 Tool description:  Fixture Tool boards:  43

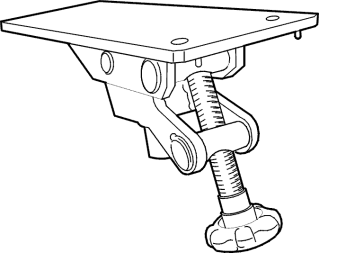

Courtesy of VOLVO CARS CORPORATION	999 5463 FIXTURE (IN/OUT LIFT-GEARBOXES) M56, AW50-42  Tool number:  999 5463 Tool description:  FIXTURE (IN/OUT LIFT-GEARBOXES) M56, AW50-42 Tool boards:  40

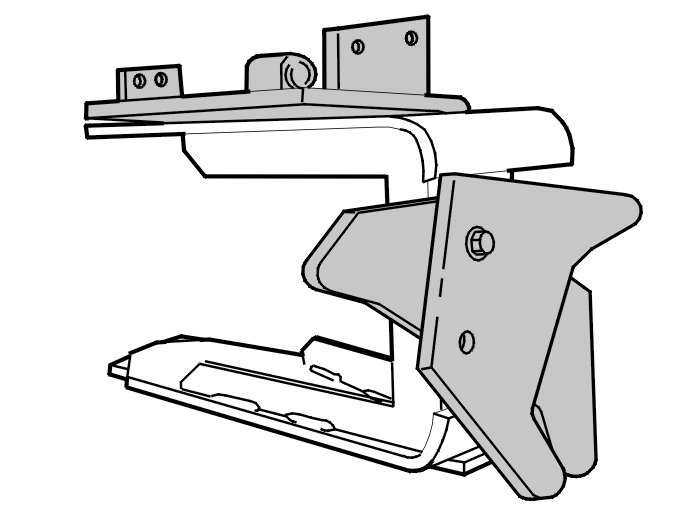

Courtesy of VOLVO CARS CORPORATION	999 5972 FIXTURE (UNIVERSAL/TRANSAXLES)  Tool number:  999 5972 Tool description:  FIXTURE (UNIVERSAL/TRANSAXLES) Tool boards:  43

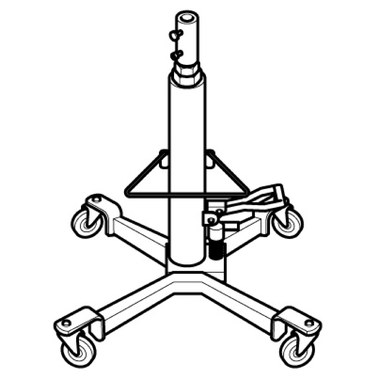

Courtesy of VOLVO CARS CORPORATION	998 5972 JACK (HYDRAULIC)  Tool number:  998 5972 Tool description:  JACK (HYDRAULIC) Tool boards:  40
