Transmission Control Module (TCM) [2019, B4204T28, TG-81SC | 2020-2022, B4204T28; B4204T39, TG-81SD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

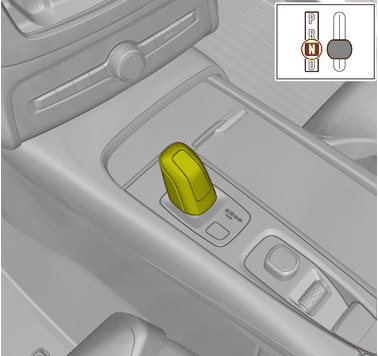

Make sure that the selector lever is in the neutral (N) position.

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

Remove transmission actuator. Refer to: [TRANSMISSION ACTUATOR]

Courtesy of VOLVO CARS CORPORATION

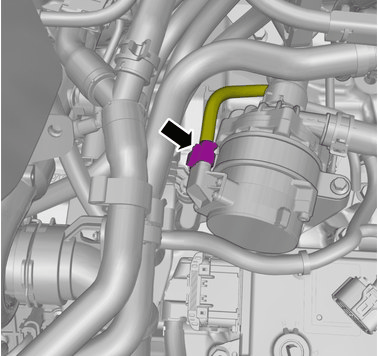

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

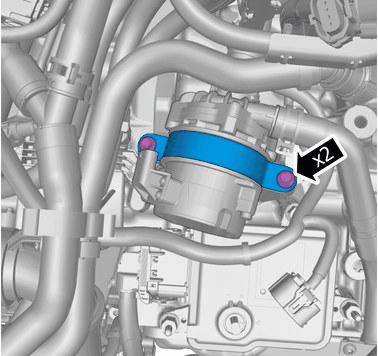

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

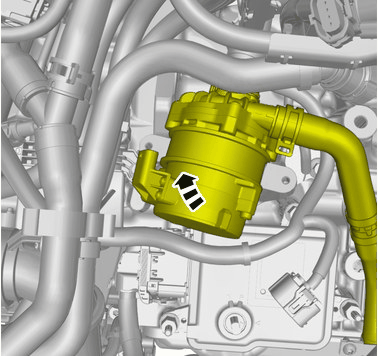

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully
