Selector Lever Assembly [2021, B420T, AWF8G55 AWD | 2021-2022, B420T2, AWF8G45 AWD; AWF8G45 Fwd]: Removal

Remove floor console frame. Refer to: [FLOOR CONSOLE FRAME]

Courtesy of VOLVO CARS CORPORATION

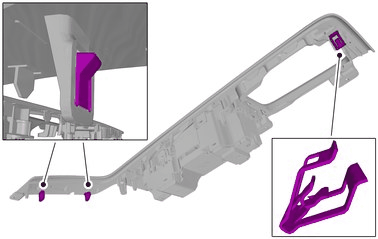

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

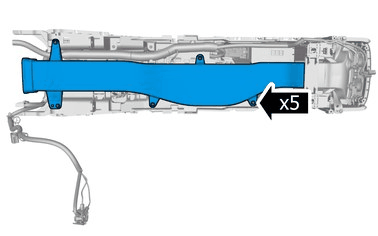

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

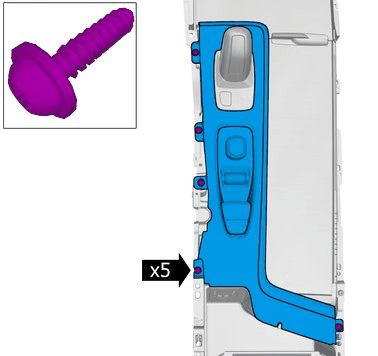

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

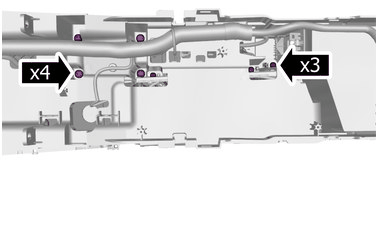

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

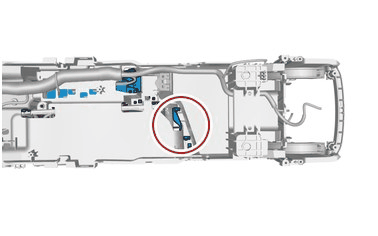

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

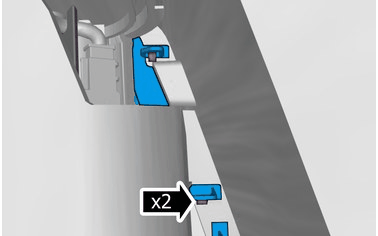

CAUTION:

Take extra care when handling the component.

Release the catches.

Courtesy of VOLVO CARS CORPORATION

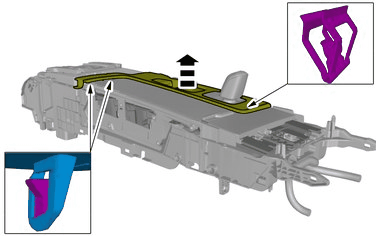

CAUTION:

Take extra care when handling the component.

Loosen the marked detail/details.

Use: Interior trim remover

Courtesy of VOLVO CARS CORPORATION

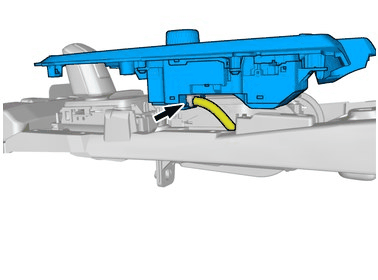

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the marked part.
