Removal And Installation

REMOVAL

Remove front storage compartment, floor console. Refer to: [FRONT STORAGE COMPARTMENT, FLOOR CONSOLE]

Courtesy of VOLVO CARS CORPORATION

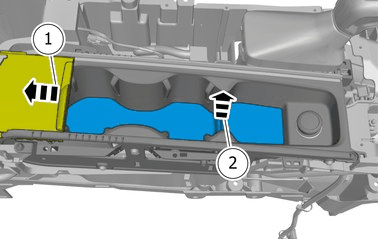

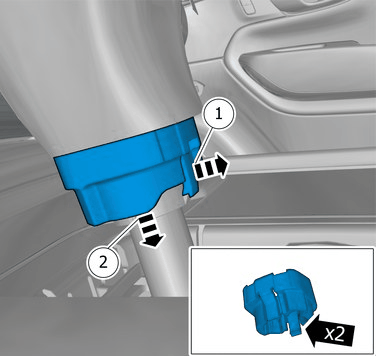

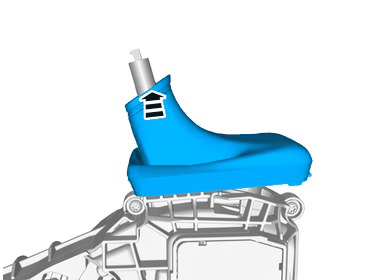

Fold marked part aside.

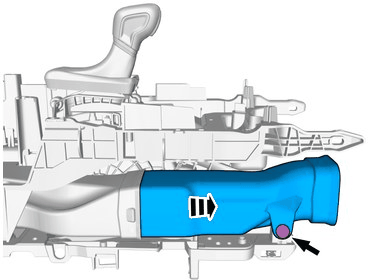

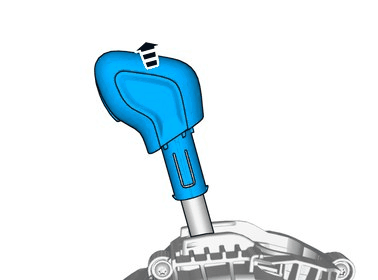

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

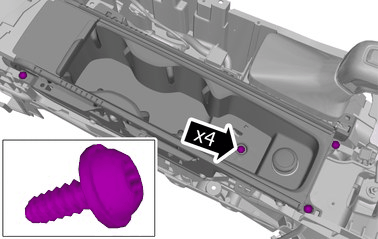

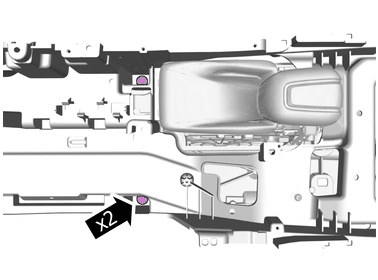

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

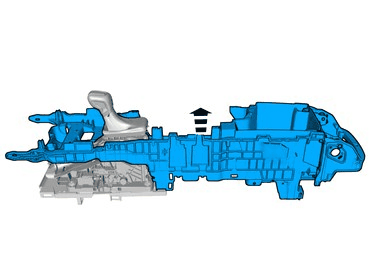

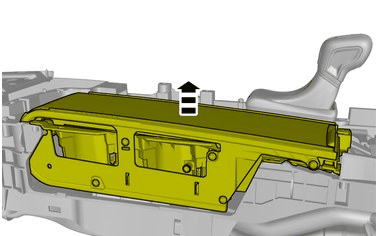

Lift the marked component up

Courtesy of VOLVO CARS CORPORATION

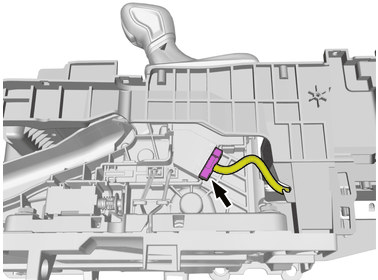

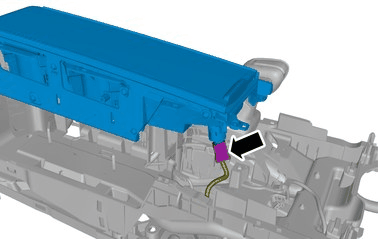

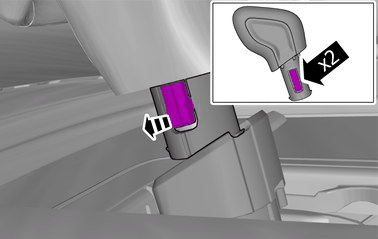

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Fold marked part aside.

VEHICLES WITH 4-ZONE AIR CONDITIONING SYSTEM A/C

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

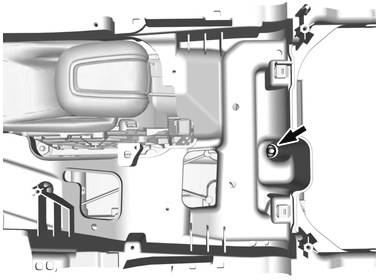

Remove the nut.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

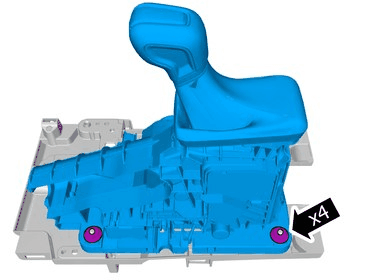

Remove the nuts.

Remove the marked part.

Torque:  M6, 10Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
