Steering Column [2019-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Disassemble battery disconnection and connection. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

Remove steering wheel. Refer to: [STEERING WHEEL]

Remove panel steering column. Refer to: [PANEL STEERING COLUMN]

Remove instrument panel lower. Refer to: [INSTRUMENT PANEL LOWER]

Courtesy of VOLVO CARS CORPORATION

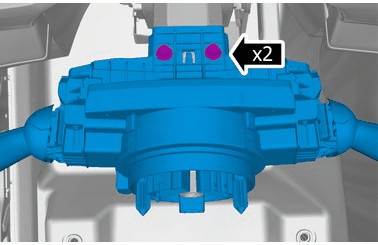

Remove the screws.

Use hands only.

Courtesy of VOLVO CARS CORPORATION

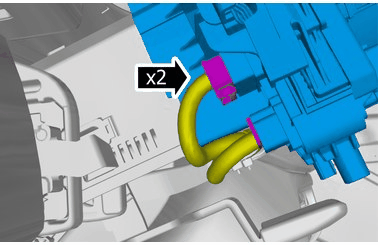

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

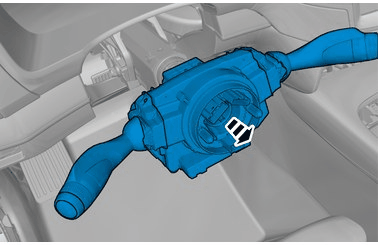

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

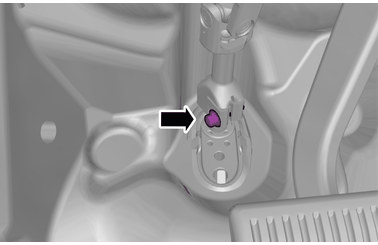

Remove the screw.

Torque: steering column to steering gear (steering shaft joint), 24Nm

Courtesy of VOLVO CARS CORPORATION

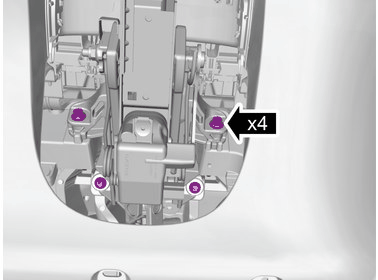

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the sharp edge does not damage the surrounding component.

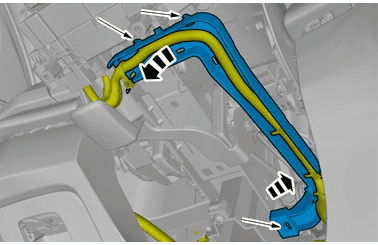

Remove the marked part.
