Side Impact Protection (8/51 - 8/52) [2019-2022]: Description

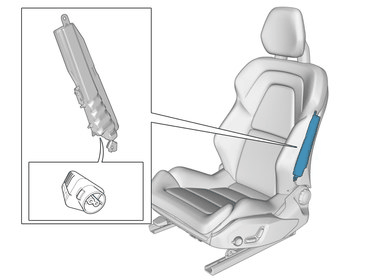

GLL1043412Courtesy of VOLVO CARS CORPORATION

The vehicle is equipped with two side impact protection airbags, one in each front seat. The airbags protects the hip and part of the torso in the event of a side collision.

An igniter is used to deploy the airbag. In the event of a deployment, the propellant in the inflator is ignited and generates a gas that inflates the airbag.

Only the airbag closest to the point of impact is deployed if a side collision is detected by the Supplemental Restraint System Module (SRS).
