Lambda Probe, Front [2022, B4204T28 | 2022, B4204T39]: Removal

Courtesy of VOLVO CARS CORPORATION

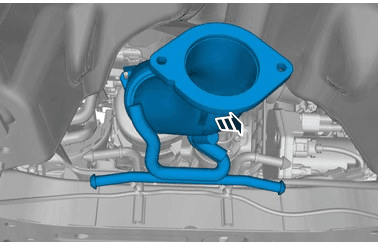

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

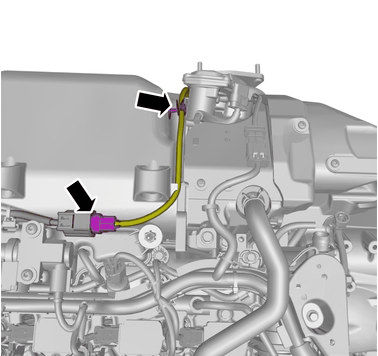

Release the connector's catch.

Disconnect the connector.

Loosen the clip.

See information about lifting points body. Refer to: [JACKING POINTS BODY]

Courtesy of VOLVO CARS CORPORATION

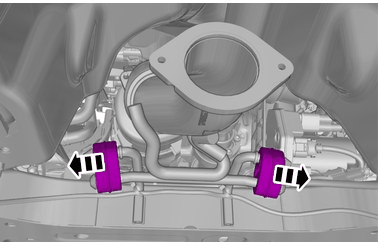

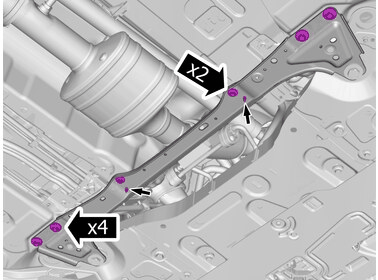

Loosen the clips.

Remove the screws.

1. Torque:  M8, 24Nm
2. Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

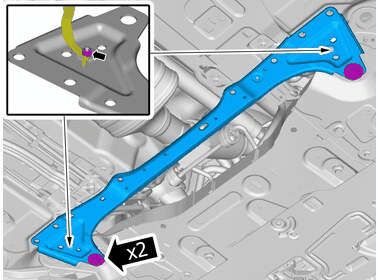

Remove the screws.

Remove the nuts.

Remove the marked part.

Torque:  Subframe to chassis (rear screws)

• Stage 1: 140Nm
• Stage 2: 150°

Courtesy of VOLVO CARS CORPORATION

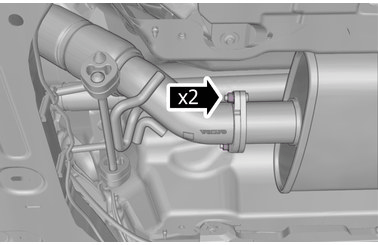

Remove the nuts.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

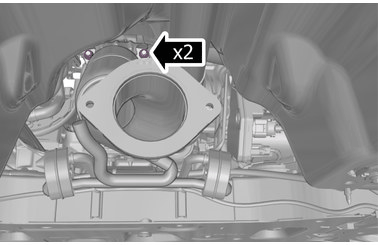

Remove the nuts.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

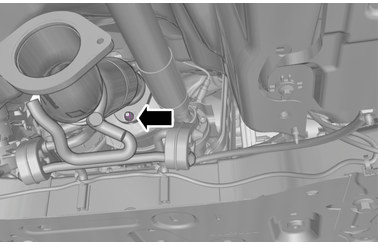

Remove the nut.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

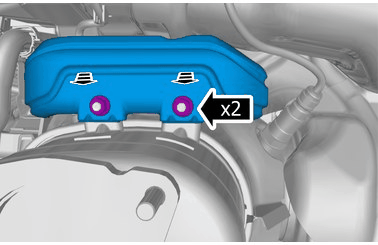

Remove the nuts.

Torque:  M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

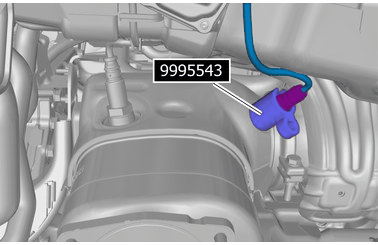

Remove the marked part.

Special Tool: 999 5543 Socket NV-22

Torque:  Lambda probe, tightening, 45Nm
