Lambda Probe, Front [2021-2022, B420T2]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the screws.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

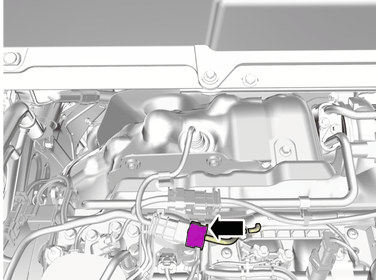

Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|

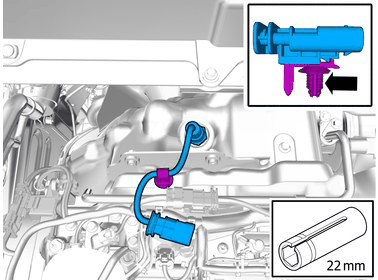

Loosen the clips.
Remove the marked part.
Torque:
Lambda probe, tightening, 45Nm
