Lambda Probe, Front [2021, B420T]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the screws.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

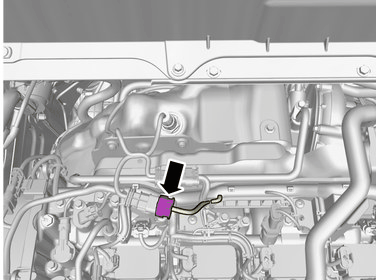

Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the cable harness clips.

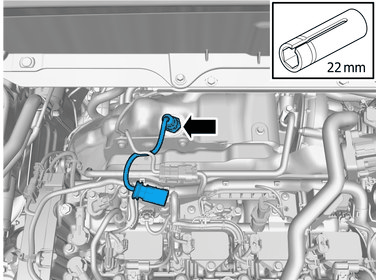

Loosen the marked detail.
Use:
Sleeve, lambda probe 22 mm
Torque:
Lambda probe, tightening, 45Nm
