Lambda Probe, Front [2019-2021, B4204T23]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

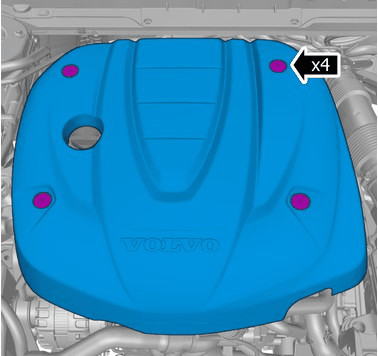

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

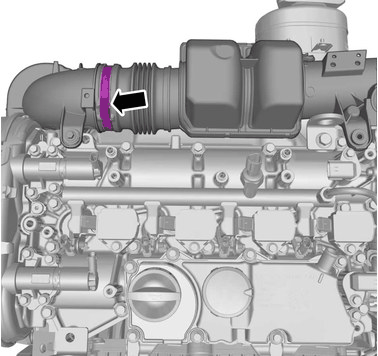

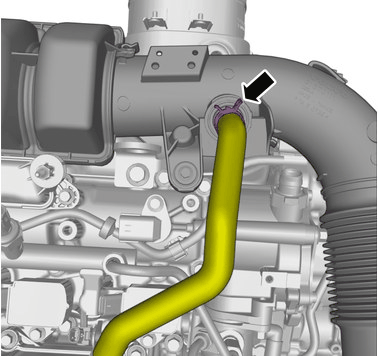

Loosen the hose clamp.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

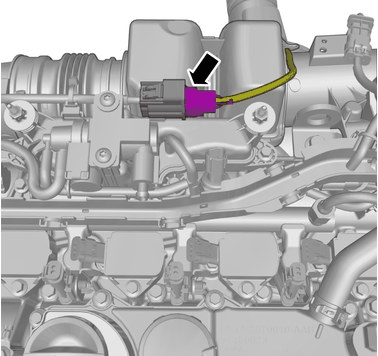

Release the connector's catch.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

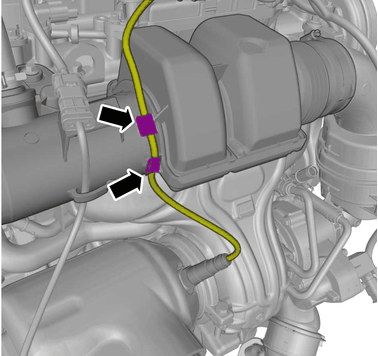

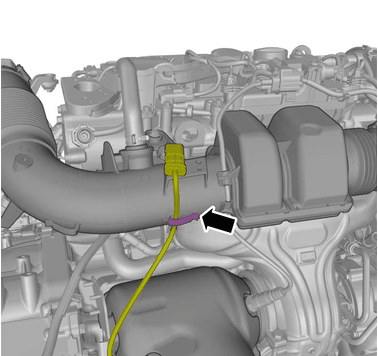

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

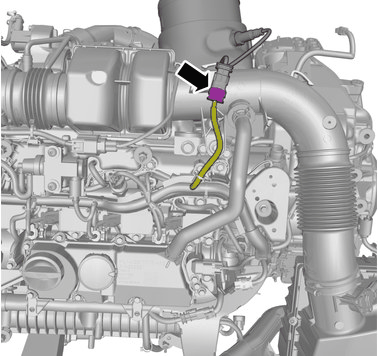

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

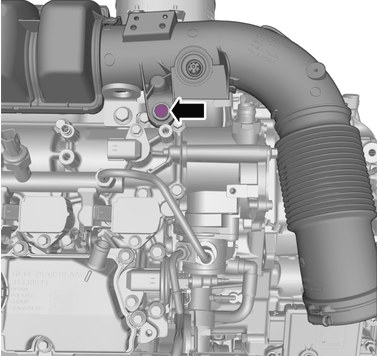

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

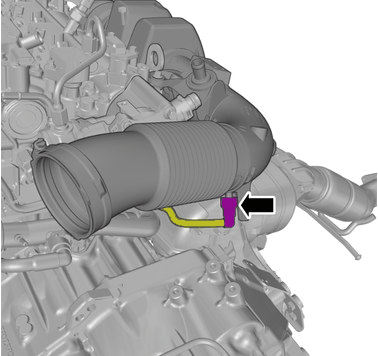

Release the lock.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

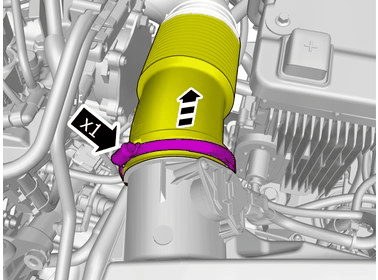

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

HINT: It may be necessary to twist or turn the component.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

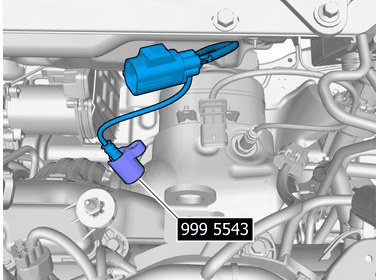

Remove the marked part.

Torque:  Lambda probe, tightening, 45Nm

Special Tool: 999 5543 Socket NV-22
