Lambda Probe, Center [2021, B420T | 2021-2022, B420T2]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Remove the secondary bulkhead panel RH. Refer to: [SECONDARY BULKHEAD PANEL RH]

Courtesy of VOLVO CARS CORPORATION

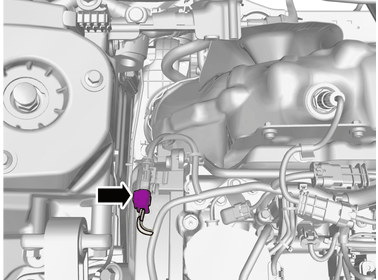

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

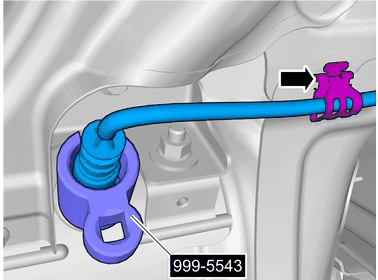

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

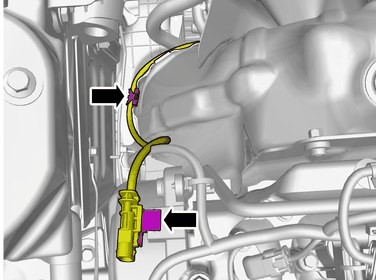

Loosen the clip.

Remove the marked part.

Torque: Lambda probe, tightening, 45Nm
