Removal And Installation

REMOVAL

Drain cooling system, draining, filling, and bleeding. Refer to: [COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING]

Remove the air filter housing. Refer to: [AIR CLEANER HOUSING]

Courtesy of VOLVO CARS CORPORATION

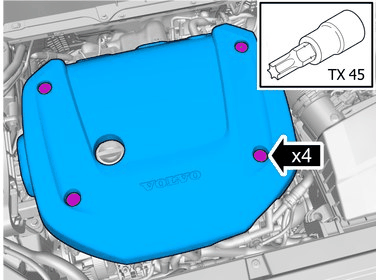

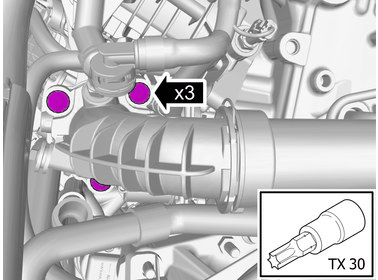

Remove the screws.

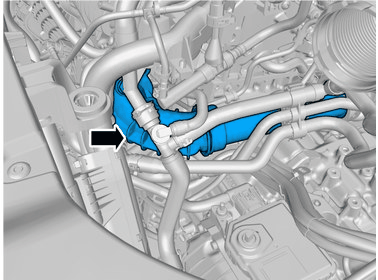

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

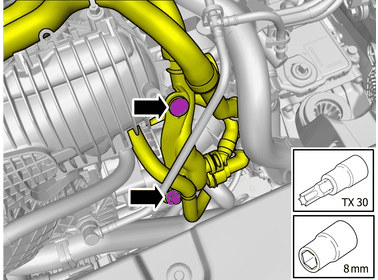

Remove the screws.

Fold marked part aside.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

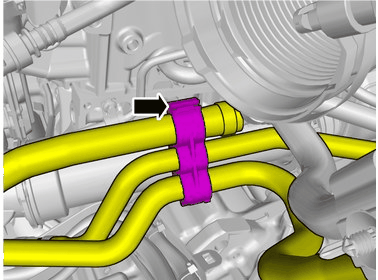

Loosen the clip.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

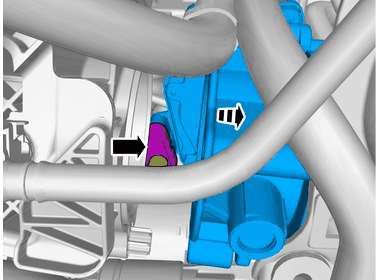

Release the locks.

Courtesy of VOLVO CARS CORPORATION

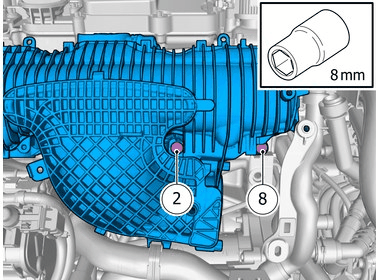

Remove the screws.

Torque:  Throttle body, 7Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

HINT: It may be necessary to twist or turn the component.

Courtesy of VOLVO CARS CORPORATION

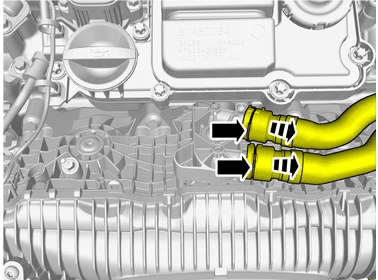

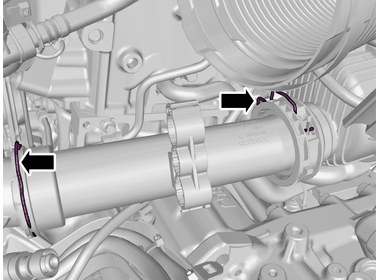

Loosen the hose clamps.

Undo the hoses from the connections.

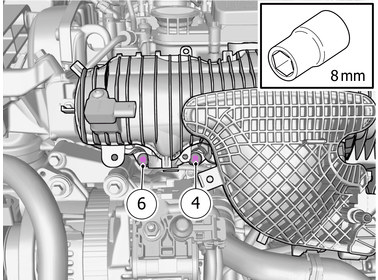

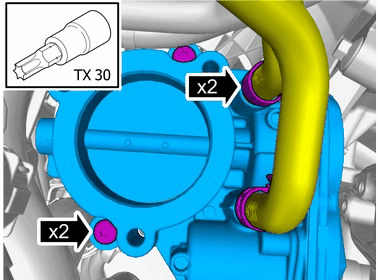

Remove the screws.

Torque:  Throttle body, 7Nm

Courtesy of VOLVO CARS CORPORATION

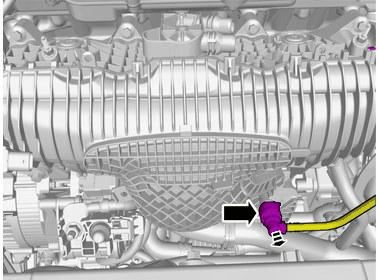

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

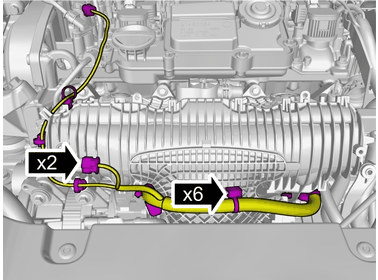

Remove the cable harness clips.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

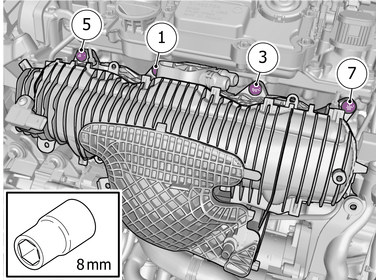

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Torque:  M6, 10Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

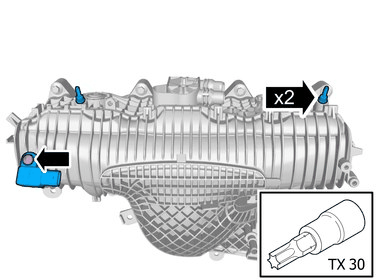

Remove the screws.

INSTALLATION

To install, reverse the removal procedure.
