Induction Pipe [2021, B420T]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain cooling system, draining, filling, and bleeding. Refer to: [COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING]

Courtesy of VOLVO CARS CORPORATION

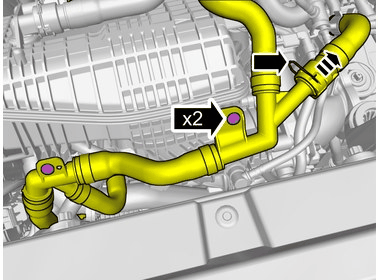

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

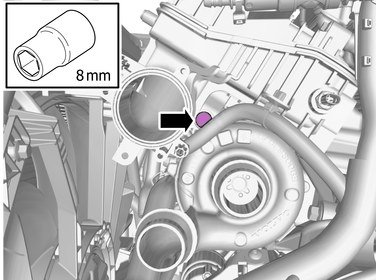

Release the locks.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

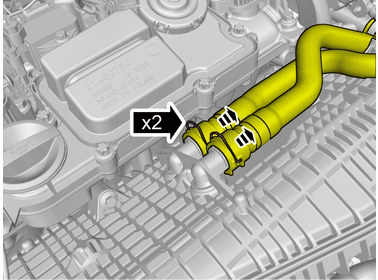

Remove the screws.

Release the lock.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

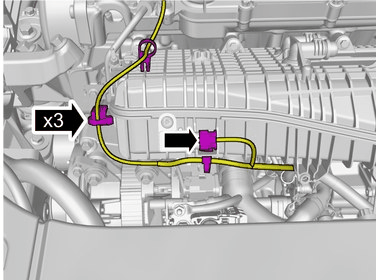

Disconnect the connector.

Remove the cable harness clips.

Remove the air filter housing. Refer to: [AIR CLEANER HOUSING]

Courtesy of VOLVO CARS CORPORATION

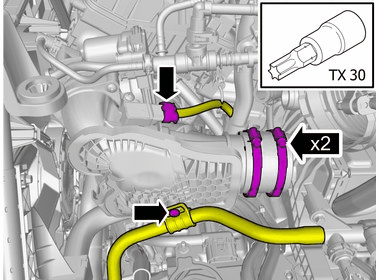

Disconnect the connector.

Remove the screw.

Loosen the hose clamps.

Courtesy of VOLVO CARS CORPORATION

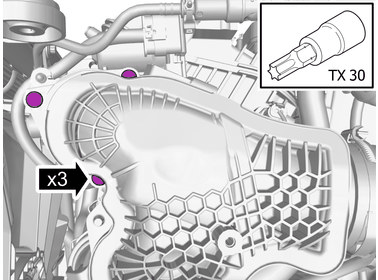

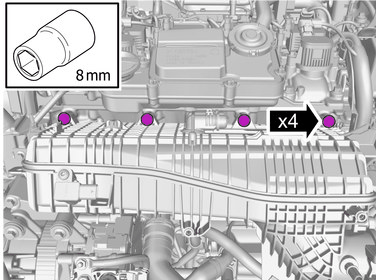

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

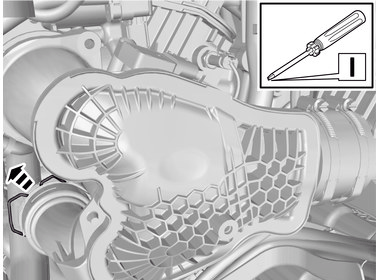

Release the lock.

Courtesy of VOLVO CARS CORPORATION

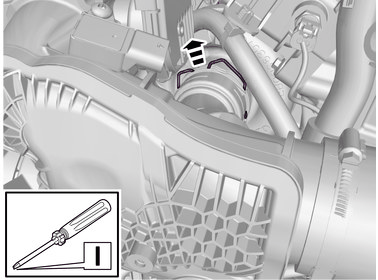

Release the lock.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

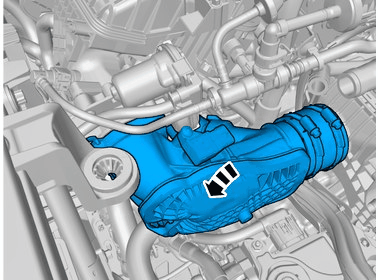

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

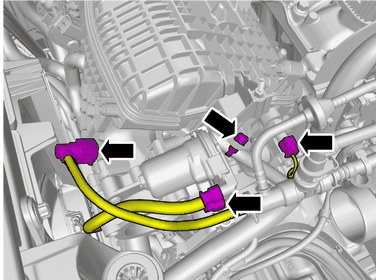

Release the lock.

Undo the hose from the connection.

Disconnect the connectors.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

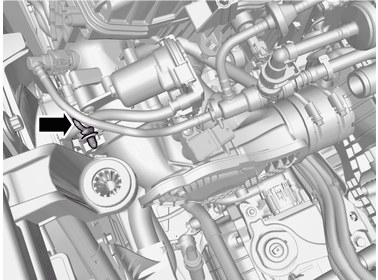

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

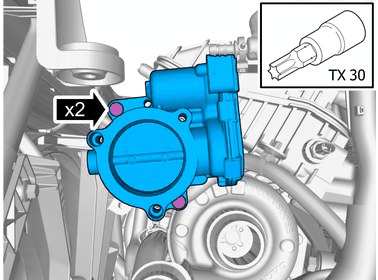

Remove the screws.

Remove the marked part.

Torque: Throttle body, 7Nm

Courtesy of VOLVO CARS CORPORATION

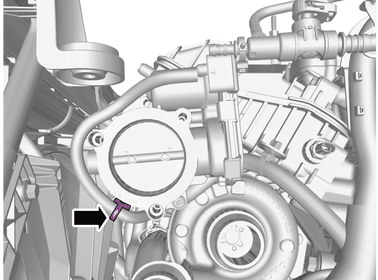

Remove the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

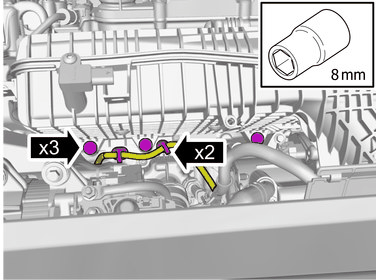

Remove the cable harness clips.

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

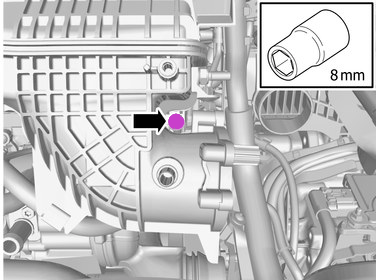

Remove the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

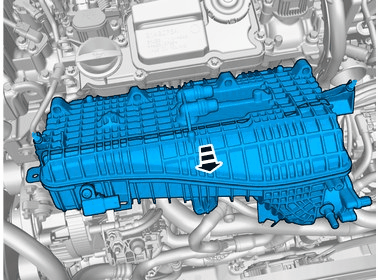

Remove the marked part.
