Induction Pipe [2021, B420T]: Installation

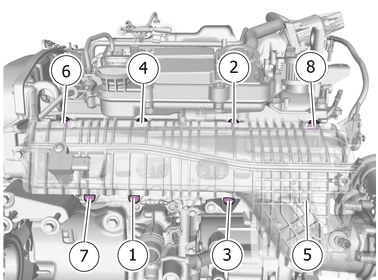

GLL1045712Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure to follow the correct sequence during installation.

Tighten the bolts.

Torque:  M6, 10Nm

To install, reverse the removal procedure.
