Removal And Installation

REMOVAL

Courtesy of VOLVO CARS CORPORATION

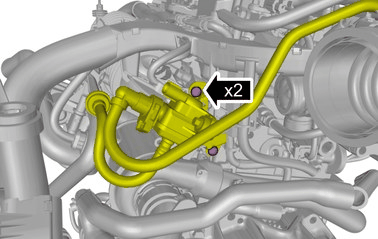

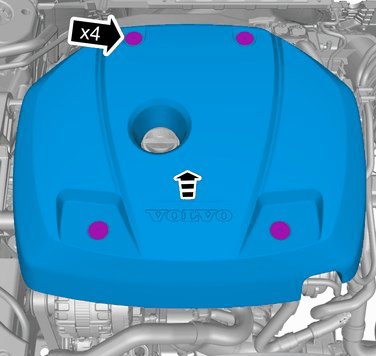

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

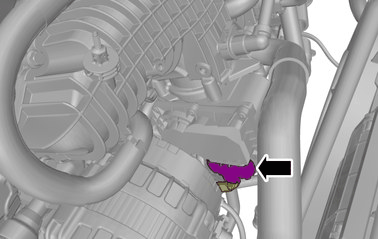

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

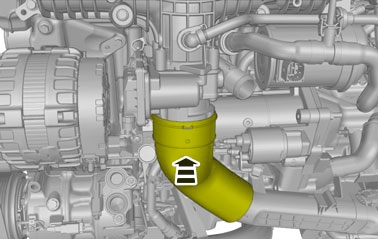

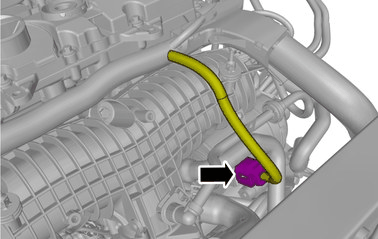

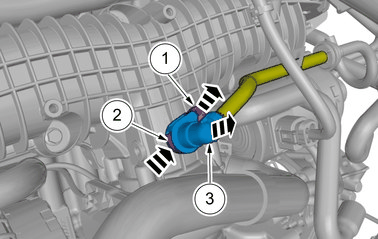

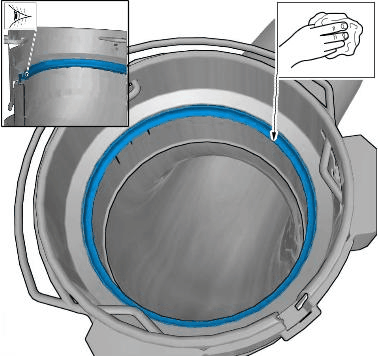

Detach the following items:

1. Loosen the clip.
2. Depress the locking device.
3. Remove the hose.

Courtesy of VOLVO CARS CORPORATION

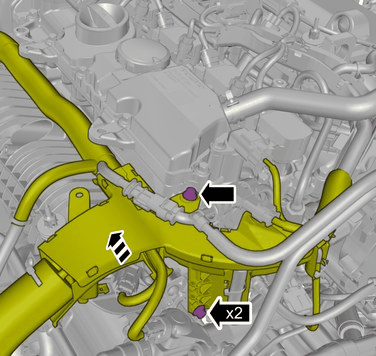

Remove the screw.

Fold marked part aside.

Torque:  M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

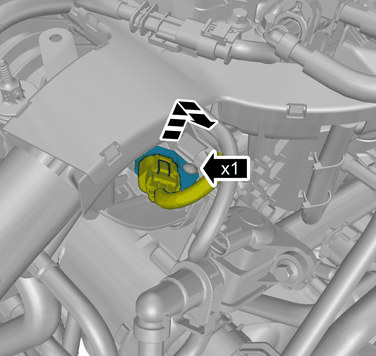

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

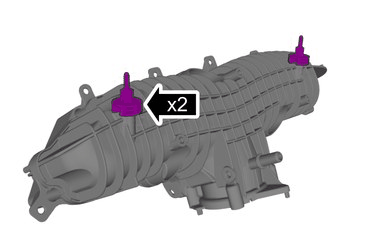

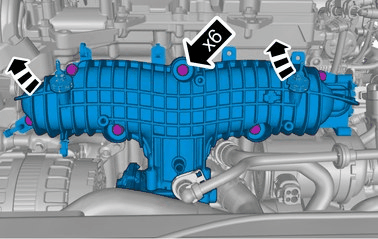

Remove the screws.

Fold marked part aside.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

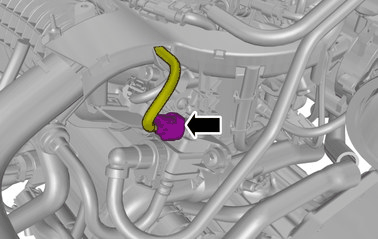

Remove the screw.

Remove the part carefully

Torque:  Manifold absolute pressure MAP sensor, 3.5Nm

Courtesy of VOLVO CARS CORPORATION

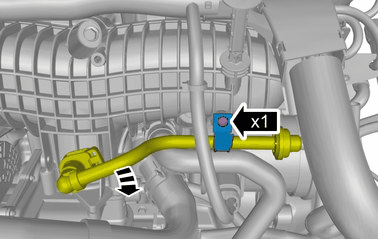

Remove the screws.

Torque:  EVAP valve bracket, to Inlet manifold, 5Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

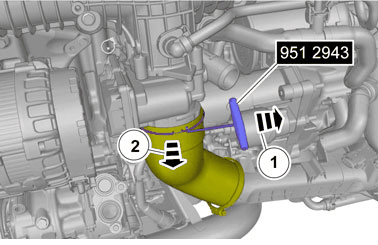

Special Tool: 951 2943 L-hook

Detach the following items:

1. Loosen the clip.
2. Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

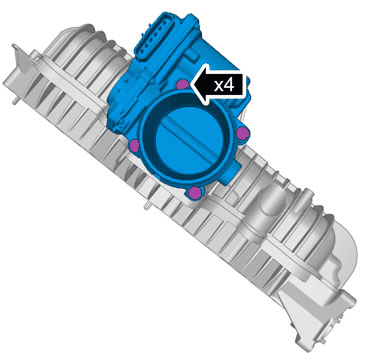

Remove the screws.

Torque:  M7, 17Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  Engine cover bracket, to Intake manifold, 6Nm

INSTALLATION

To install, reverse the removal procedure.
