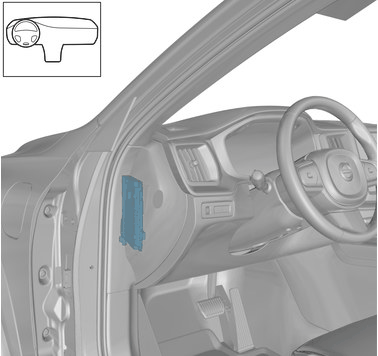

Central Electronic Module (CEM) [2019-2022]: Removal

Perform battery disconnecting and connecting. Refer to: [BATTERY DISCONNECTING AND CONNECTING]

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

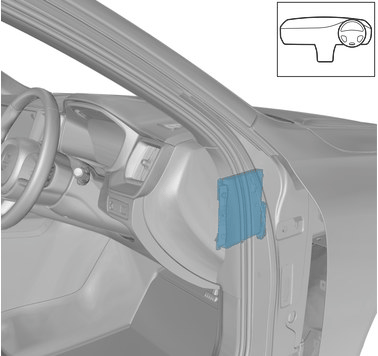

Remove airbag driver's side knee. Refer to: [DRIVER'S KNEE AIRBAG]

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

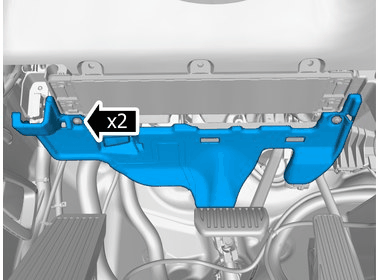

Remove the screws.

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

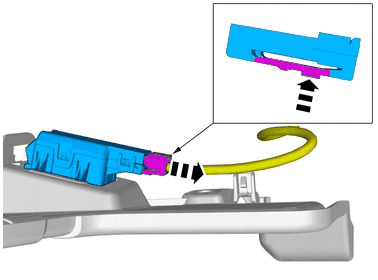

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

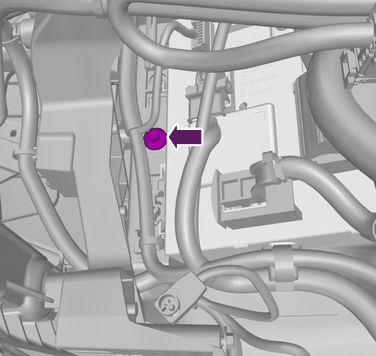

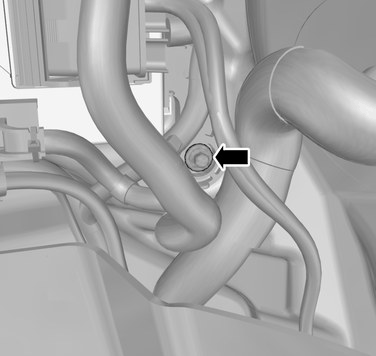

Remove the screw.

Torque:  M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

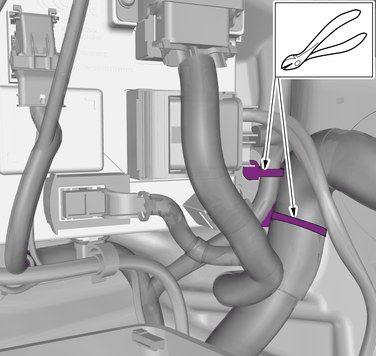

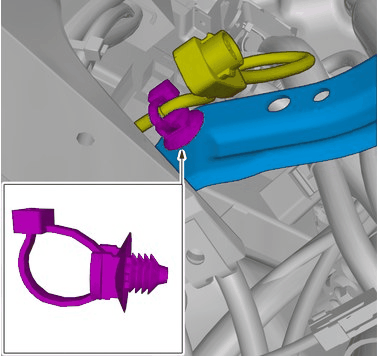

Remove the clip.

Check that the fasteners are undamaged before installation. If not, they must be replaced with new ones.

Courtesy of VOLVO CARS CORPORATION

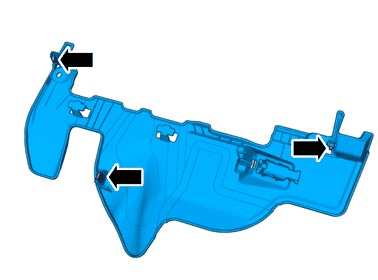

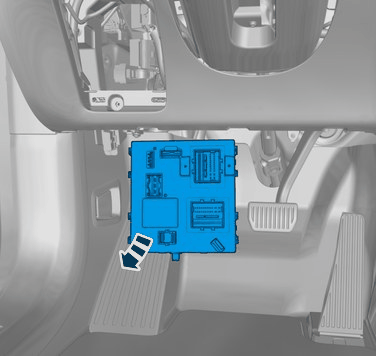

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

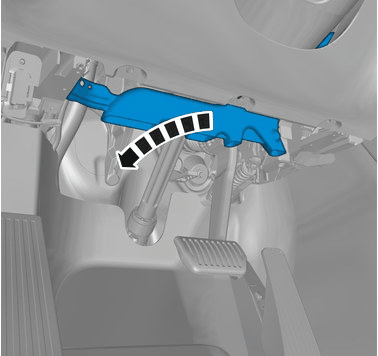

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

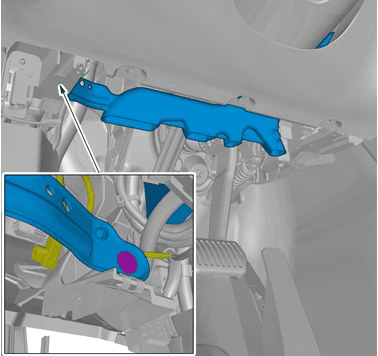

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

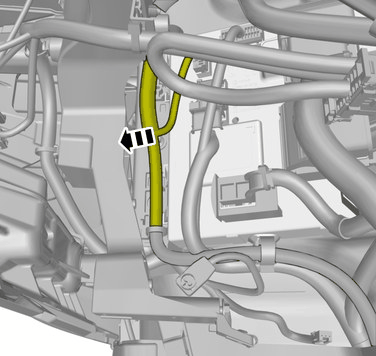

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

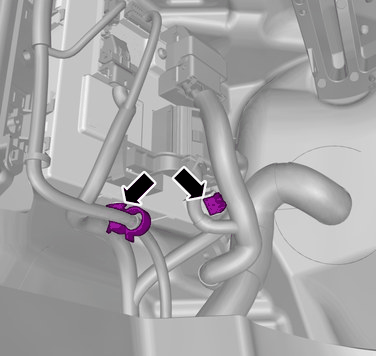

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

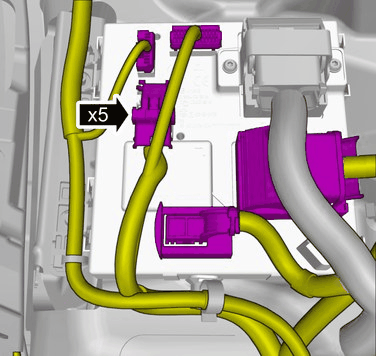

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

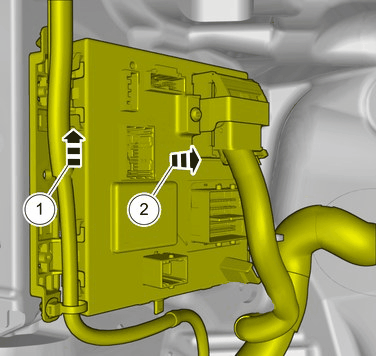

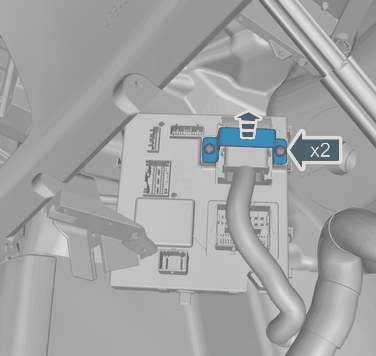

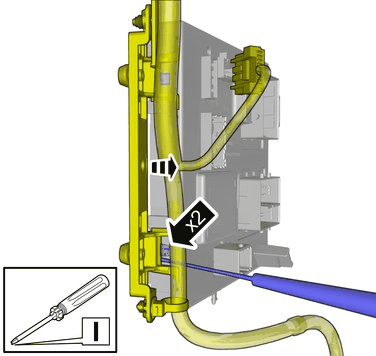

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

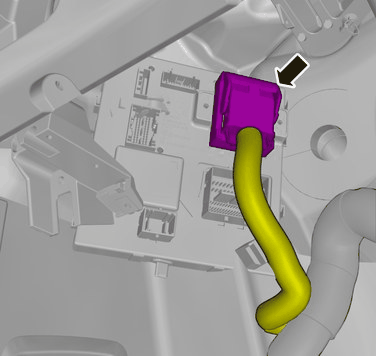

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION
