Lower Control Arm With Variant Code Ag01 And CB01 And RI01: Installation
NOTE:
Do not fully tighten the nut yet.

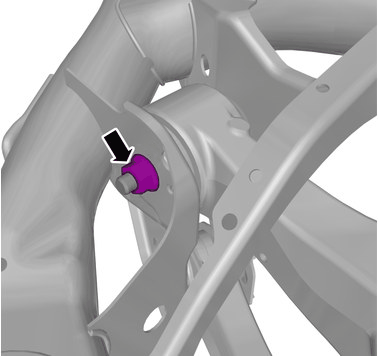

Install the marked component.
Install the nut.

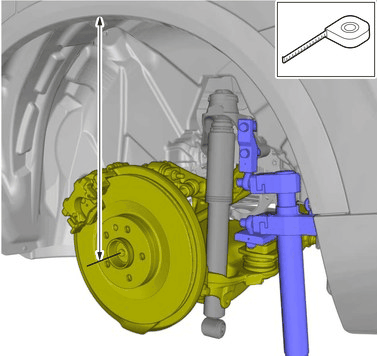

Ensure that the vehicle is adapted to normal status. Refer to: [NORMAL POSITION]
Adjust to the specified value.

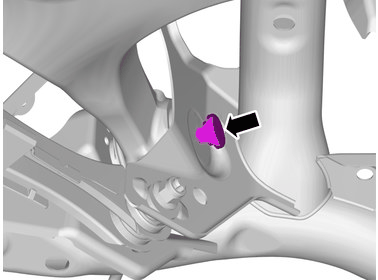

CAUTION:
Make sure that a new bolt is installed.
Install the screw.

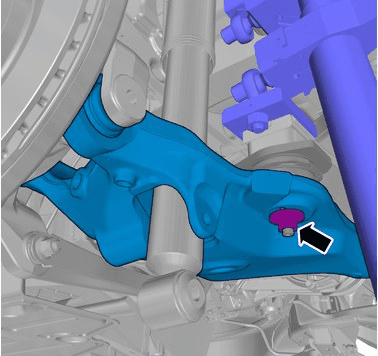

NOTE:
Do not fully tighten the nut yet.
Install the nut.

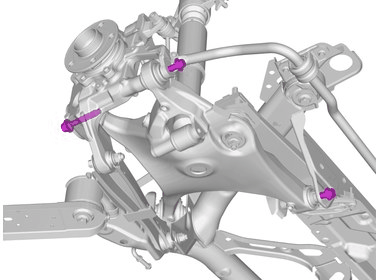

NOTE:
Do not fully tighten the bolts.
Install the screws.

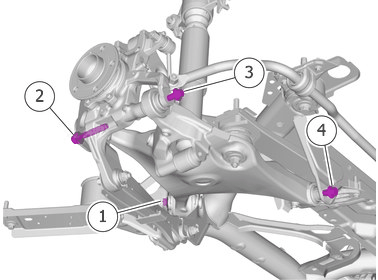

Tighten the bolts.
- Torque:
Arm lower rear, to subframe (front mounting)
- Stage 1: 90Nm
- Stage 2: 90°
- Torque:
Lower control arm rear to wheel knuckle (front mounting)
- Stage 1: 140Nm
- Stage 2: 90°
- Torque:
Lower control arm rear to wheel knuckle (rear mounting)
- Stage 1: 90Nm
- Stage 2: 120°
- Torque:
Arm lower rear, to subframe (rear mounting)
- Stage 1: 140Nm
- Stage 2: 150°

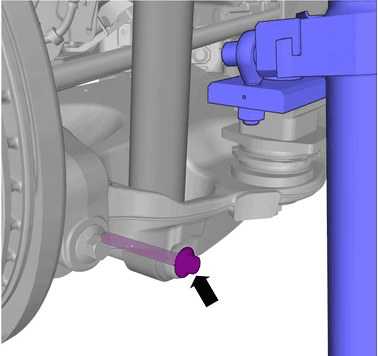

Install the screw.
Tighten the screw.
Torque: Rear shock absorber, to Lower control arm
- Stage 1: 90Nm
- Stage 2: 150°
Remove the Special Tool.

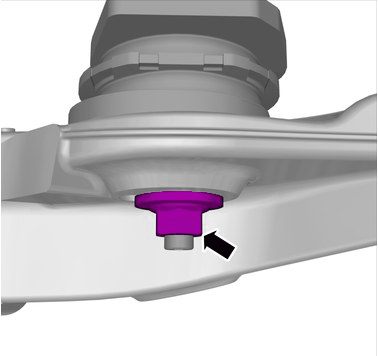

Tighten the nut.
Torque: Spring seat outer, to lower arm rear, 80Nm
VEHICLES EARLY VERSION

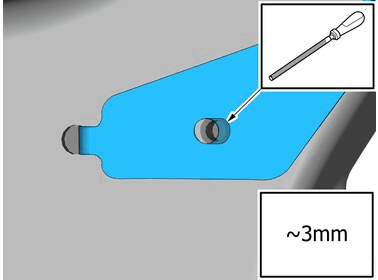

Adjust the hole with a file as necessary.
NOTE:
Note the position.

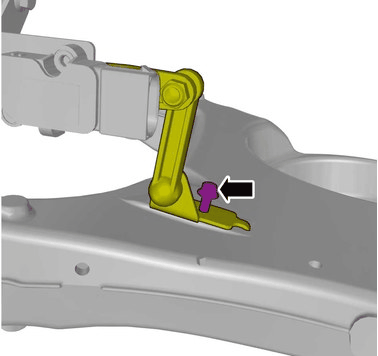

Tighten the screw.
Torque: M5, 5Nm
To install, reverse the removal procedure.
