Removal And Installation

REMOVAL

GLL1047740Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

LEAK DETECTION

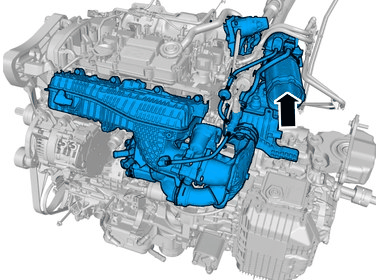

GLL1045189Courtesy of VOLVO CARS CORPORATION
NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Special Tool: 981 4118 LEAK DETECTOR

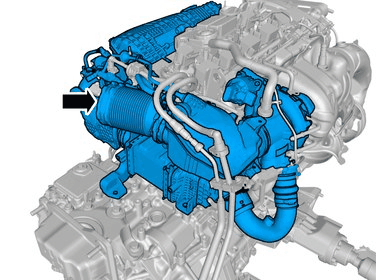

GLL1049253Courtesy of VOLVO CARS CORPORATION
NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Special Tool: 981 4118 LEAK DETECTOR

INSTALLATION

GLL1047740Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.
