Engine Block, Installing Components [2022, B420T2, AWF8G45 Fwd]: Installation

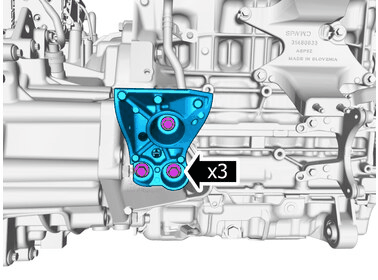

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm
Torque: M6, 10Nm

Replace seal. Refer to: [FUEL INJECTOR]

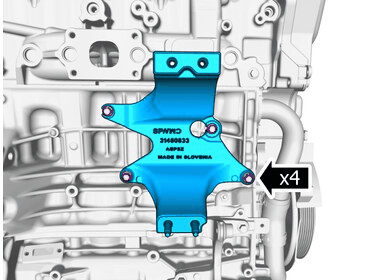

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm
Torque: Fuel rail, 22Nm

Install the following items:

ignition coil. Refer to: [IGNITION COIL]
camshaft position sensor, exhaust side. Refer to: [CAMSHAFT POSITION SENSOR, EXHAUST SIDE]
camshaft position sensor, inlet side. Refer to: [CAMSHAFT POSITION SENSOR, INLET SIDE]
VVT solenoid. Refer to: [VVT SOLENOID]

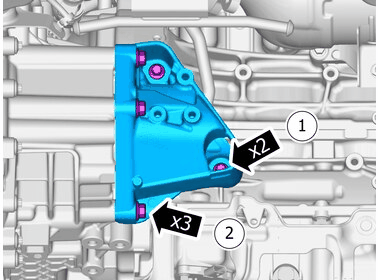

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm
Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M5, 5Nm
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10Nm
Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the nut.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

A click confirms that the component is in the correct position.

Install the hose.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the marked components.

Install the screws.

Torque: Knock sensor, 20Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Clean the surface.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Check the component. If it displays any type of damage, it must be replaced.

Check the surfaces for abrasion.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the installation marks are aligned.

If necessary

Turn the engine

Courtesy of VOLVO CARS CORPORATION

Measure

Use: Vernier caliper

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the seal remains correctly located.

CAUTION:

Check the component. If it displays any type of damage, it must be replaced.

NOTE:

Use a new seal.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Use hands only.

Tighten each bolt 1 turn at a time.

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: Injection pump, 30Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

A click confirms that the component is in the correct position.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nuts finger tight at this stage.

Install the marked component.

Make sure to replace the marked component with a new.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Tighten the nuts.

Torque: High pressure fuel line

Stage 1: 18Nm
Stage 2: 30Nm

Special Tool: 981 4129 Hook wrench

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is installed.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the Special Tool.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Install the screw.

Torque: M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the torque converter is kept in place when installed, to avoid the transmission getting damaged.

Install the marked component.

Special Tool: 999 5186 HOOK

Use: Engine lift

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Turn the engine

Torque: Torque converter, to Flexplate, 60Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: Starter motor cover, 40Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Install the following items:

turbocharger. Refer to: [TURBOCHARGER]
water pump belt. Refer to: [WATER PUMP BELT]
the intake manifold. Refer to: [INDUCTION PIPE]

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the hoses.

Tighten the hose clamps.

Install the screws.

Torque: M6, 10Nm
Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the wire positions are correct.

Install the marked component.

Connect the connectors.

Install the screws.

Torque: M6, 10Nm
Torque: M8, 24Nm

Install the engine. Refer to: [ENGINE]
