Strut And Spring Assembly Bar [2019, 2020, 2021, 2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL1049279Courtesy of VOLVO CARS CORPORATION

Remove the screws.

On both sides.

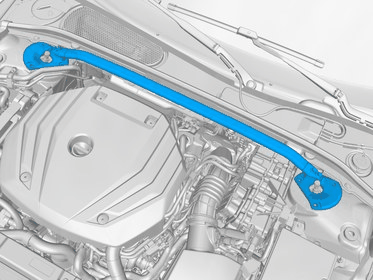

Fig 1: Strut And Spring Assembly Bar Component Location
GLL1044899Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
