Front SUBFRAME, Service Position [2021, B420T | 2021-2022, B420T2]: Installation

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

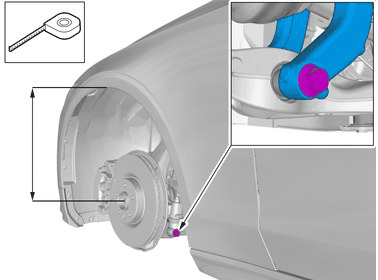

NOTE:

Only tighten the nuts and bolts when the suspension is in the normal drive position.

Torque: Shock Absorber Fork to Front Lower Control Arm

See information about normal position. Refer to: [NORMAL POSITION]

Courtesy of VOLVO CARS CORPORATION

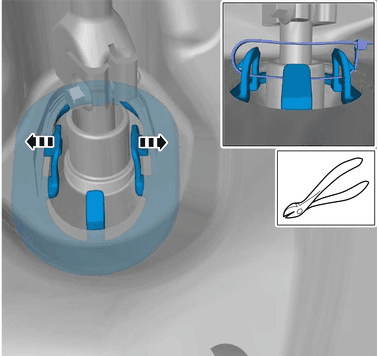

NOTE:

Make sure that the seal is correctly located.

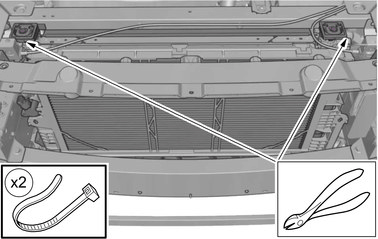

Remove the cable tie(s).

Courtesy of VOLVO CARS CORPORATION

Remove the cable tie(s).
