Front Bushing SUBFRAME Front [2020-2022]: Installation

Courtesy of VOLVO CARS CORPORATION

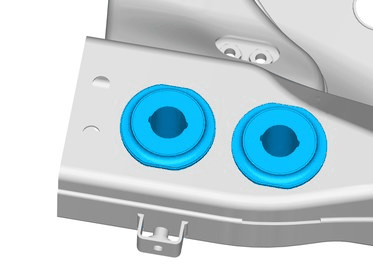

NOTE:

Make sure that this component is installed to the noted removal position.

Courtesy of VOLVO CARS CORPORATION

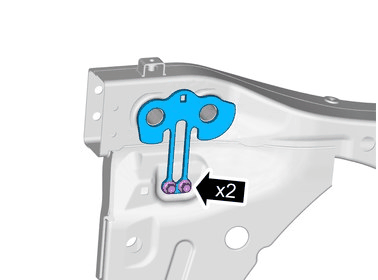

Install the marked component.

Use: Plastic mallet

Courtesy of VOLVO CARS CORPORATION

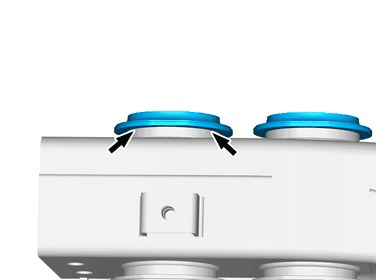

CAUTION:

Make sure that the components are positioned correctly.

Courtesy of VOLVO CARS CORPORATION

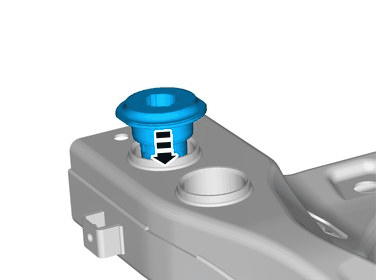

NOTE:

Make sure that this component is installed to the noted removal position.

Install the screws.

Torque: M8, 24Nm
