Sim Card Reader [2019-2022]: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Remove sill molding front. Refer to: [FRONT SILL MOLDING]

RHD: The procedure is carried out on the opposite side.

Courtesy of VOLVO CARS CORPORATION

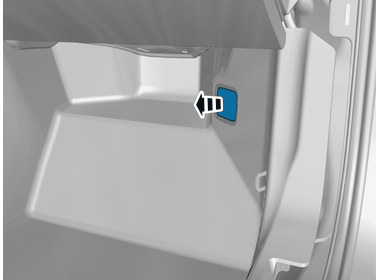

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

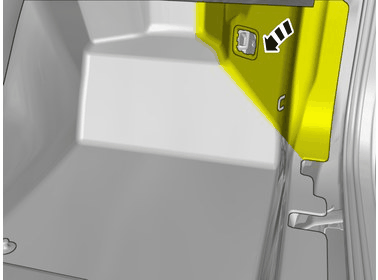

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

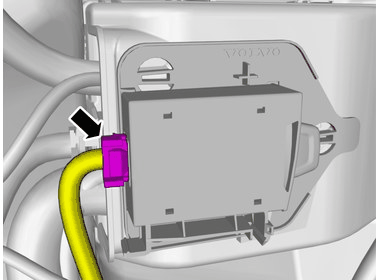

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

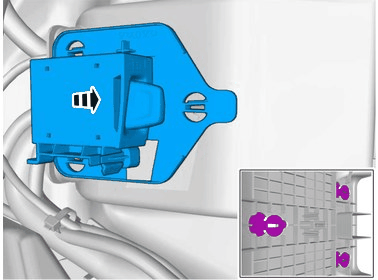

Remove the marked part.
