MULTIBAND Antenna Module Mam [2019-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the following items:

A-pillar trim panel. Refer to: [A-PILLAR TRIM PANEL]
inner rear view mirror. Refer to: [INNER REAR VIEW MIRROR]

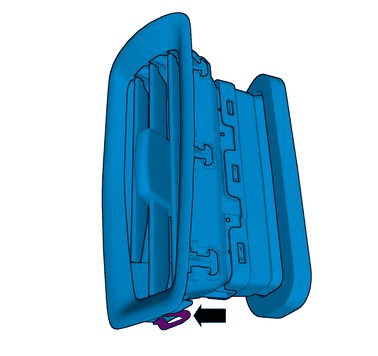

GLL1023883

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

GLL1021461

Courtesy of VOLVO CARS CORPORATION

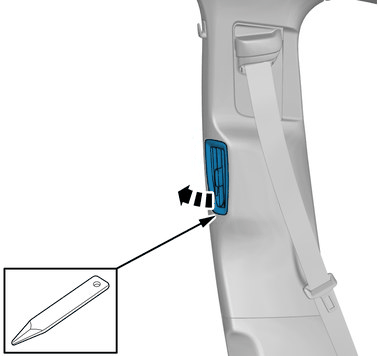

On both sides.

Remove the marked part.

GLL1026830

Courtesy of VOLVO CARS CORPORATION

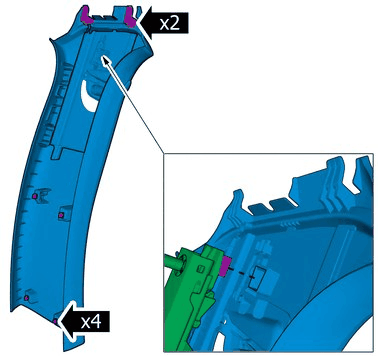

NOTE:

The graphic shows the back of the component before removal.

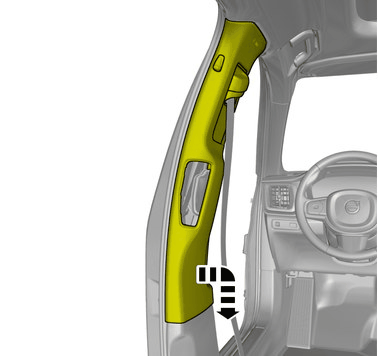

GLL1018932

Courtesy of VOLVO CARS CORPORATION

On both sides.

Loosen the marked detail.

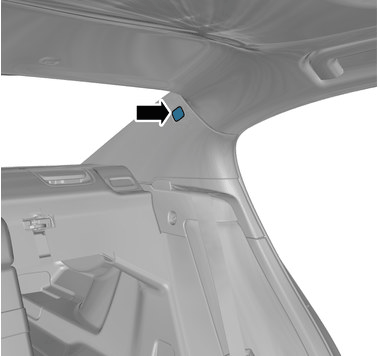

GLL1028253

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the marked part.

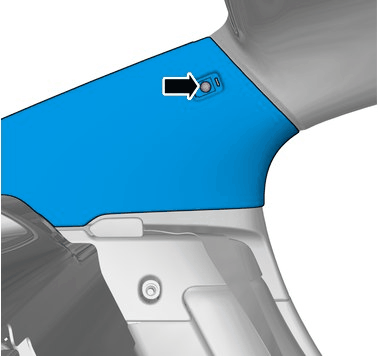

GLL1011406

Courtesy of VOLVO CARS CORPORATION

On both sides.

Torque: Panel, to C pillar, 4.5Nm

Remove the screw.

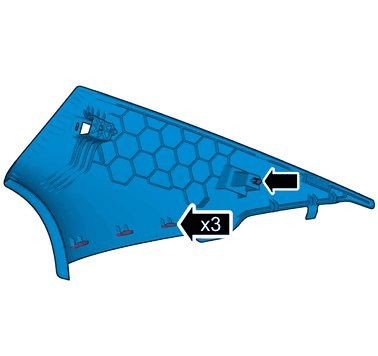

GLL1024944

Courtesy of VOLVO CARS CORPORATION

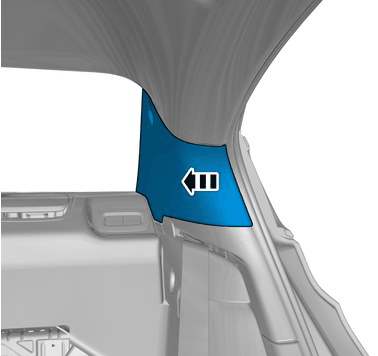

NOTE:

The graphic shows the back of the component before removal.

GLL1029577

Courtesy of VOLVO CARS CORPORATION

GLL1004386

Courtesy of VOLVO CARS CORPORATION

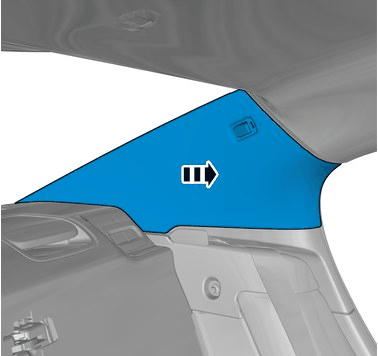

On both sides.

Remove the marked part.

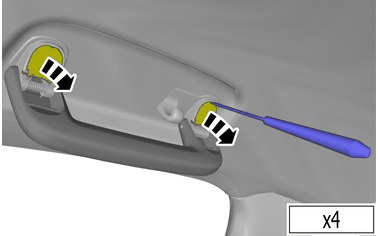

GLL1018880

Courtesy of VOLVO CARS CORPORATION

GLL1029954

Courtesy of VOLVO CARS CORPORATION

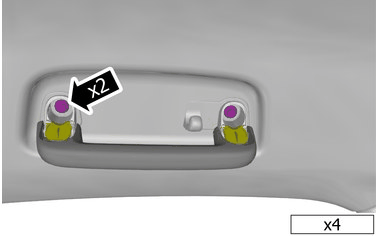

Remove the screws.

Torque: Entry handle, to bracket, 6Nm

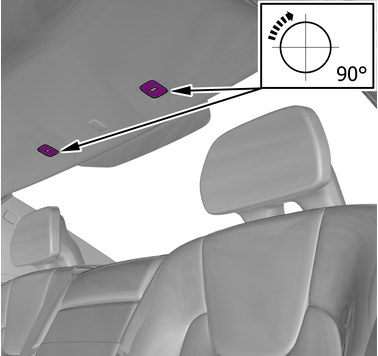

GLL1003466

Courtesy of VOLVO CARS CORPORATION

Remove the fasteners.

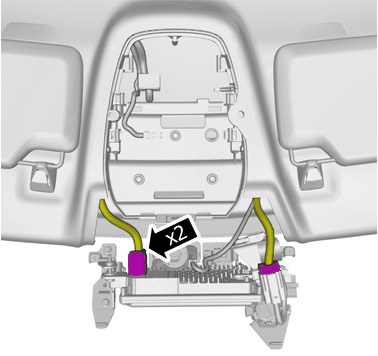

GLL1011802

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

GLL1031792

Courtesy of VOLVO CARS CORPORATION

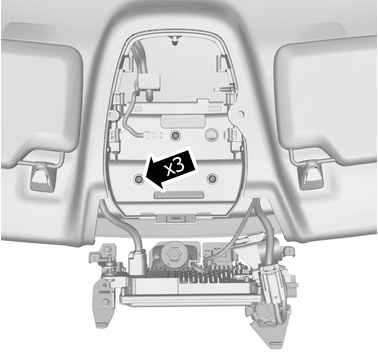

Remove the screws.

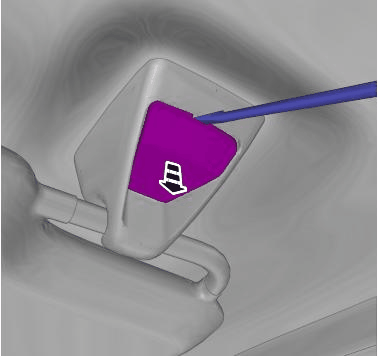

GLL1015858

Courtesy of VOLVO CARS CORPORATION

Remove the fastener.

On both sides.

GLL1028707

Courtesy of VOLVO CARS CORPORATION

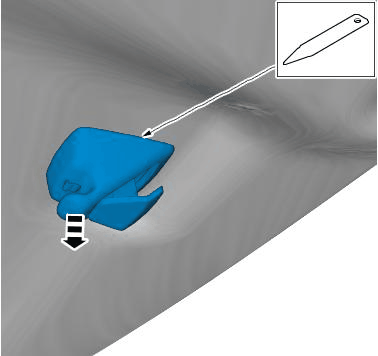

Remove the marked part.

On both sides.

GLL1025896

Courtesy of VOLVO CARS CORPORATION

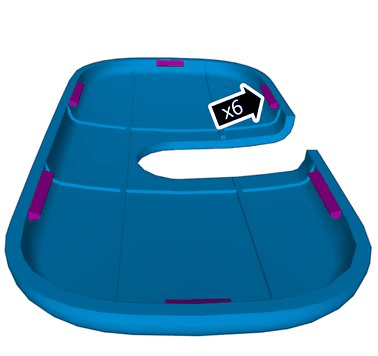

NOTE:

The graphic shows the back of the component before removal.

GLL1000172

Courtesy of VOLVO CARS CORPORATION

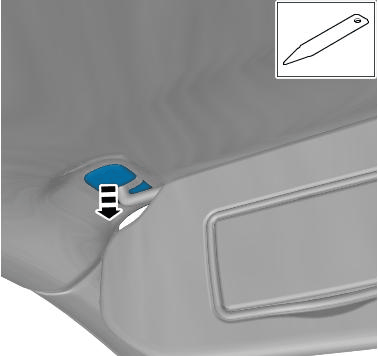

Remove the marked part.

On both sides.

GLL1017177

Courtesy of VOLVO CARS CORPORATION

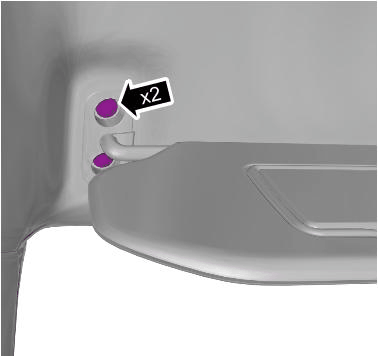

Remove the screws.

Torque: M5, 5Nm

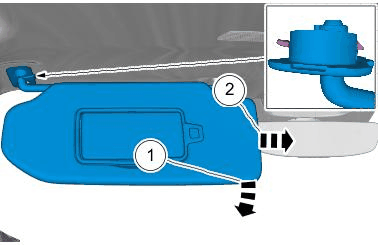

GLL1028034

Courtesy of VOLVO CARS CORPORATION

GLL1004090

Courtesy of VOLVO CARS CORPORATION

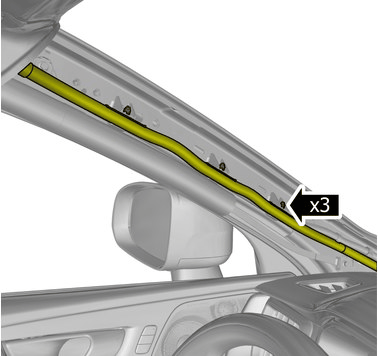

On both sides.

Remove the cable harness clips.

VEHICLES WITH HEATED WINDSHIELD

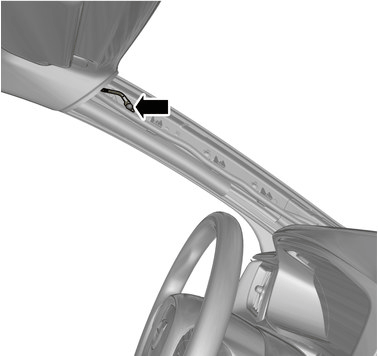

GLL1015095

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

On both sides.

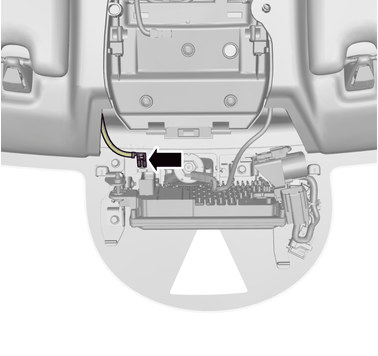

GLL1037605

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

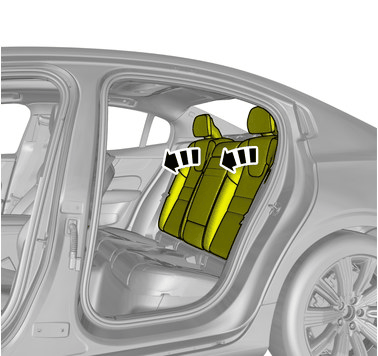

GLL1005622

Courtesy of VOLVO CARS CORPORATION

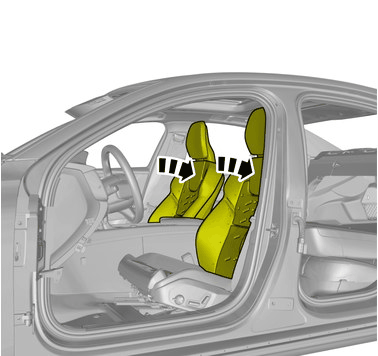

GLL1020325

Courtesy of VOLVO CARS CORPORATION

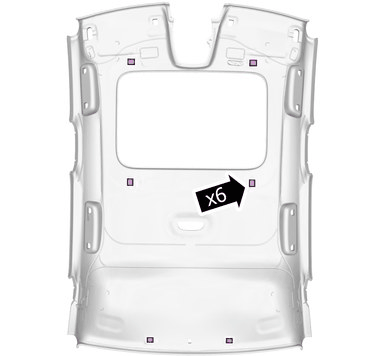

GLL1020395

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

NOTE:

Velcro strip

Use: Interior trim remover

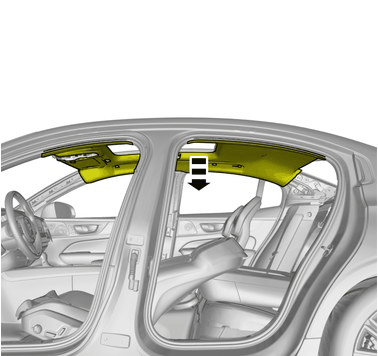

GLL1032849

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

HINT: This step may require the aid of another technician.

Remove the part carefully

Lower to suitable height.

GLL1002295

Courtesy of VOLVO CARS CORPORATION

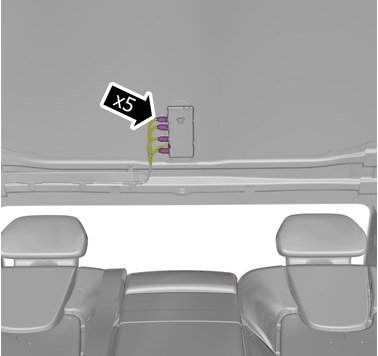

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

Disconnect the connectors.

GLL1012381

Courtesy of VOLVO CARS CORPORATION

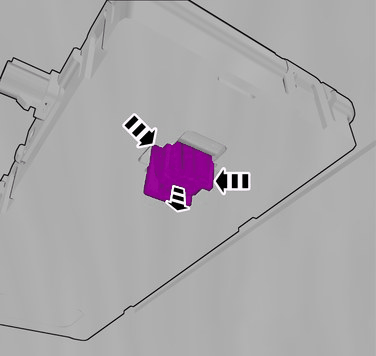

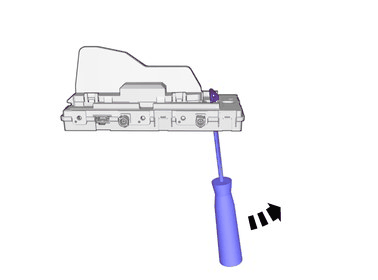

Release the lock.

GLL1026206

Courtesy of VOLVO CARS CORPORATION

Release the lock.

GLL1016434

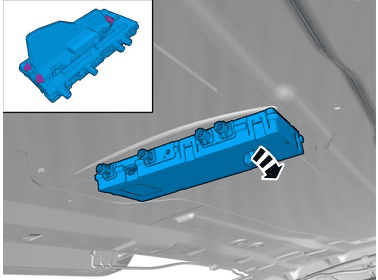

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
