Removal And Installation

REMOVAL

Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]

Follow instructions for lifting points body frame. Refer to: [JACKING POINTS BODY]

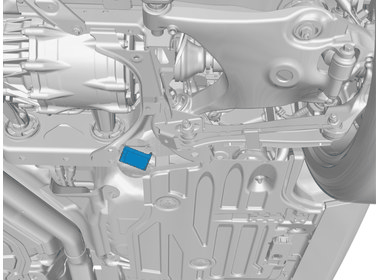

ORIENTATION VIEW

Courtesy of VOLVO CARS CORPORATION

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

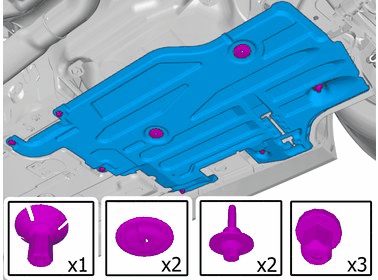

Remove the fasteners.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

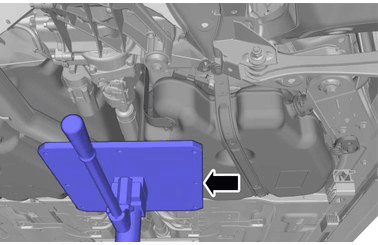

Use:  Unit lift

Courtesy of VOLVO CARS CORPORATION

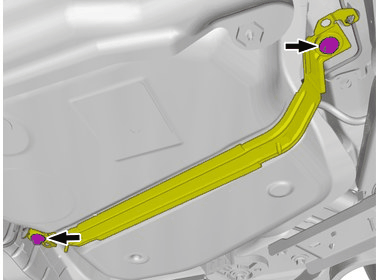

Remove the screws.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Fold marked parts aside.

Courtesy of VOLVO CARS CORPORATION

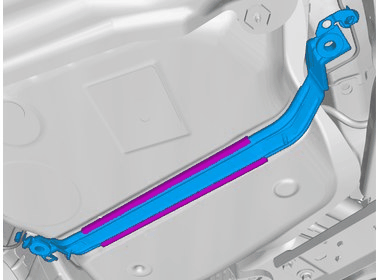

Remove the part carefully

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

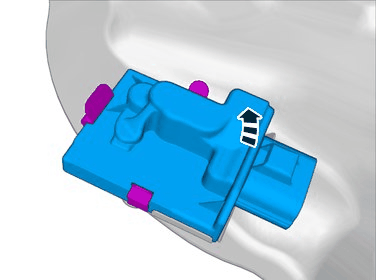

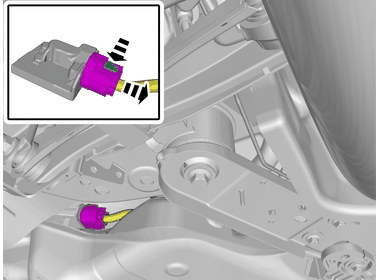

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

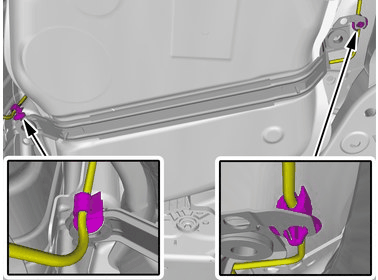

Loosen the clips.

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.

VEHICLES WITH GASOLINE ENGINES

Reset according to: Diagnostics / Components / Control modules / Engine control module (ECM) / Diagnostic Sequences/Resetting adaptations for the fuel pump, low pressure side
