System Wiring Diagrams: Transmission

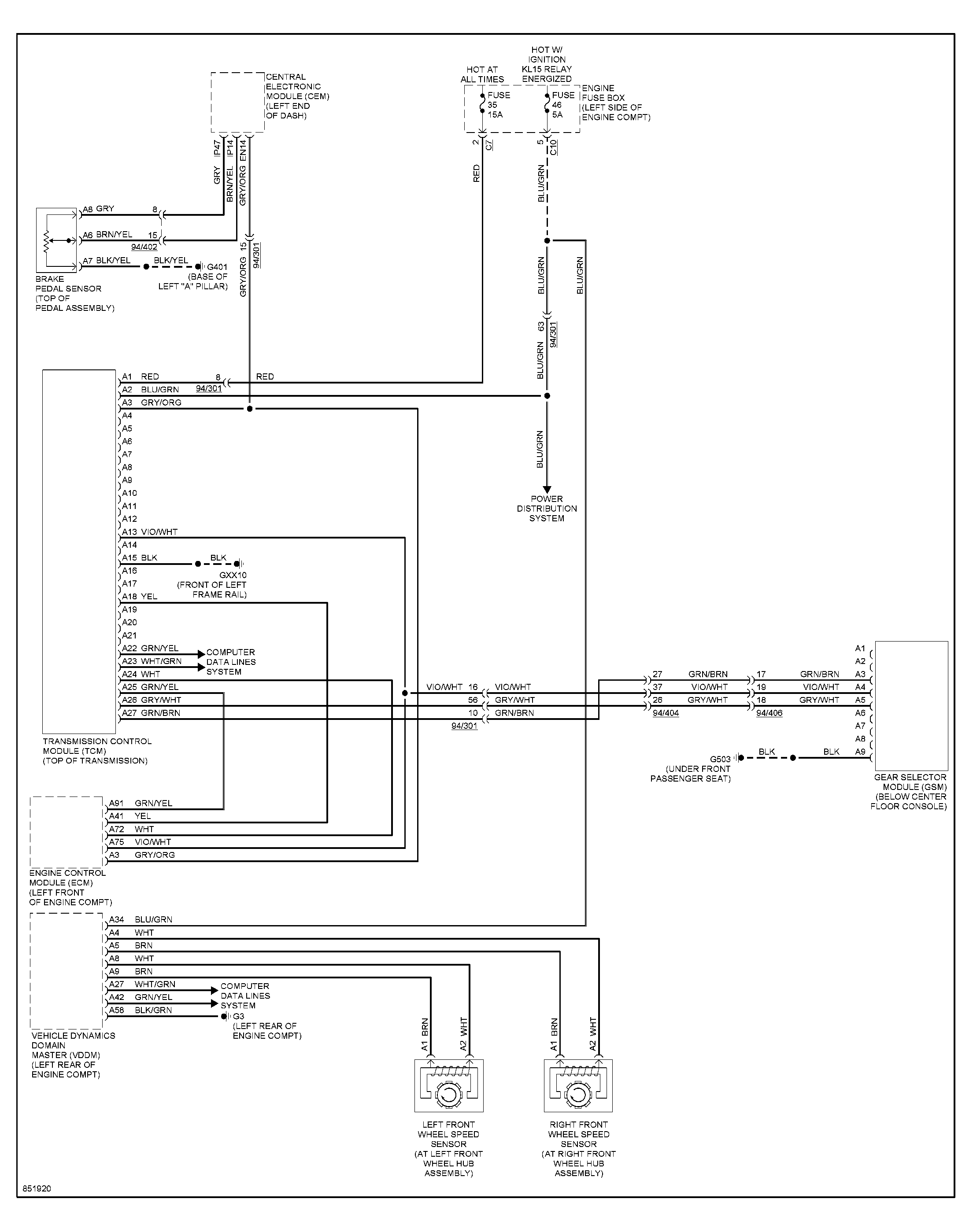

Fig 1: A/T Circuit, Except Hybrid

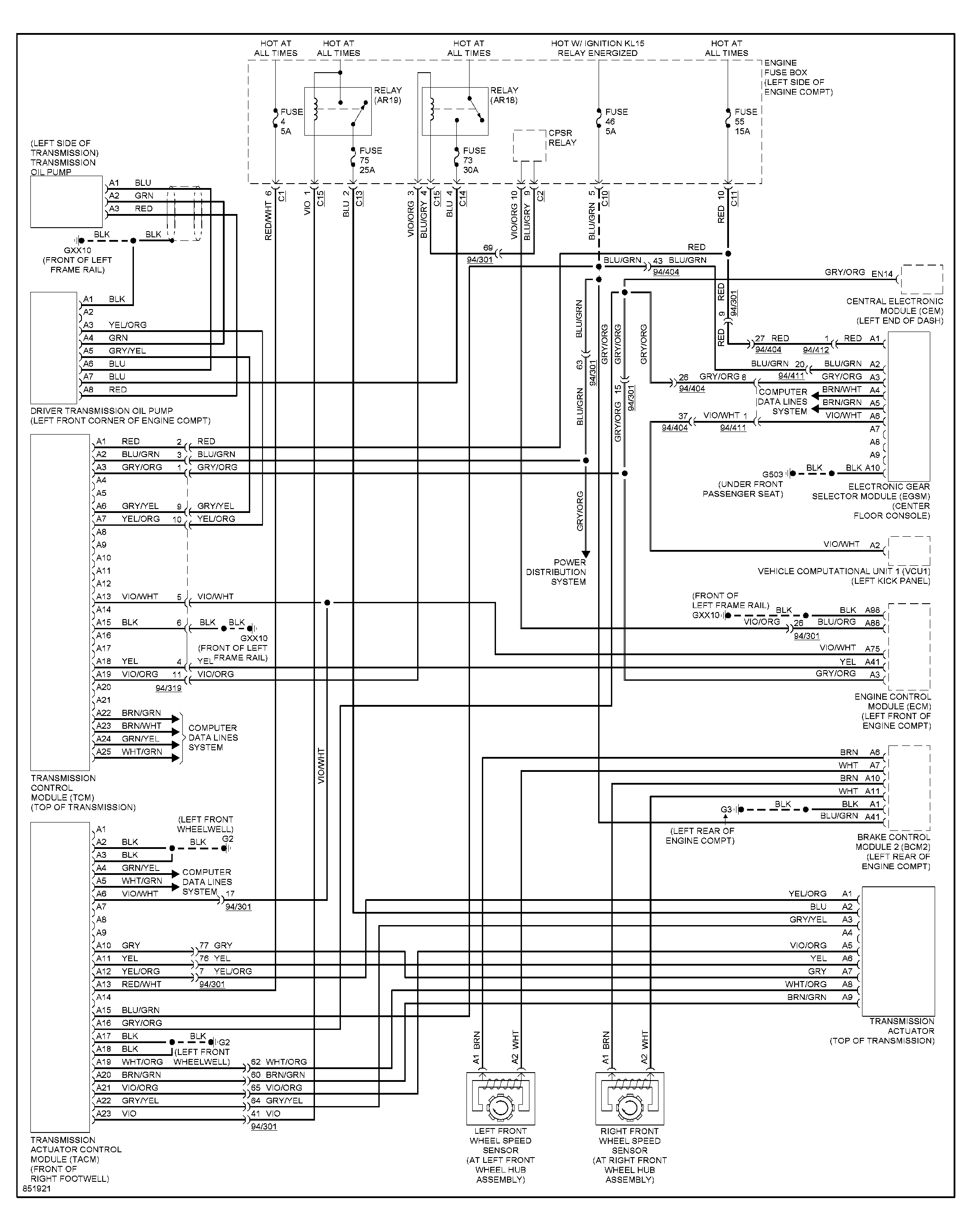

Fig 2: A/T Circuit, Hybrid

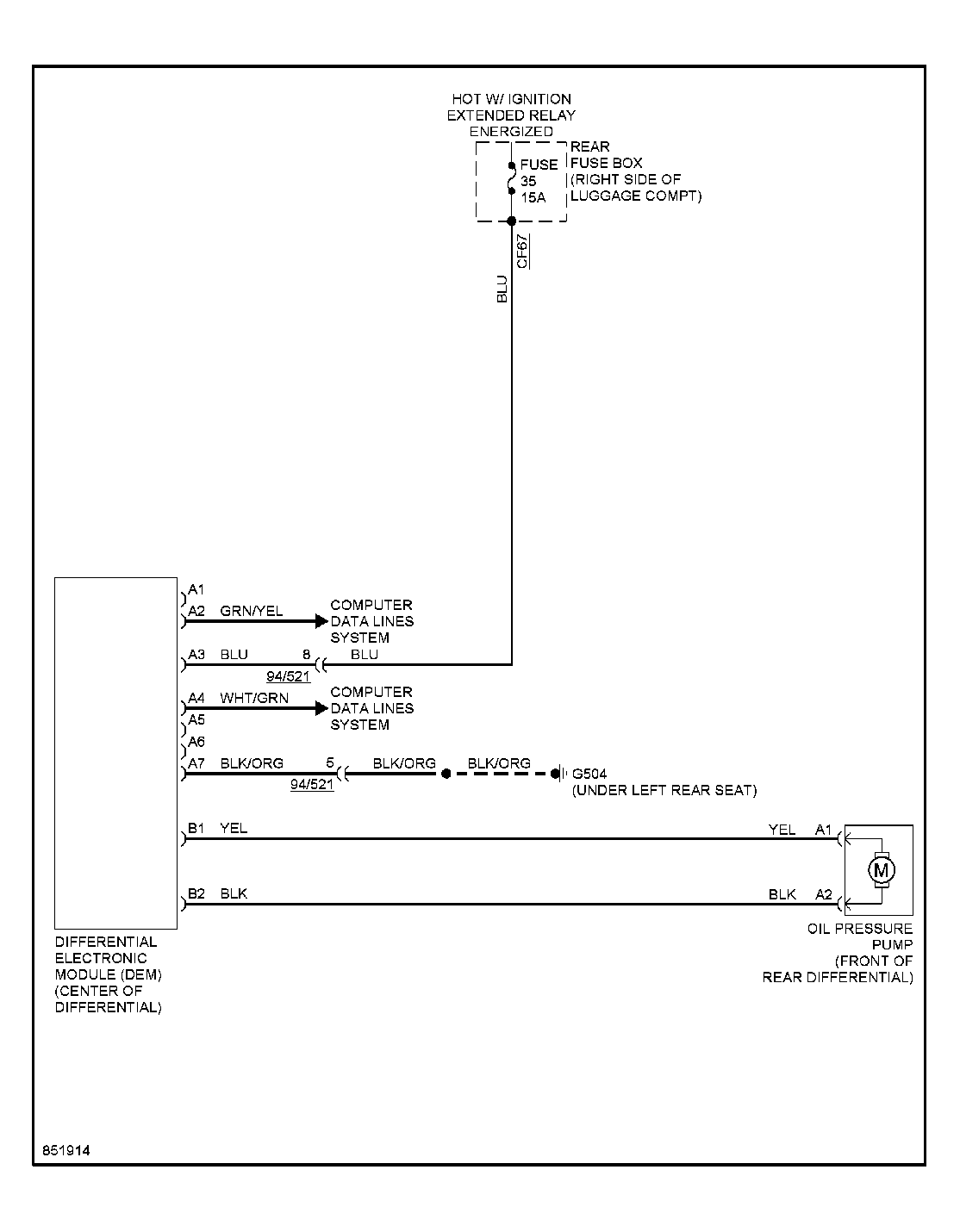

Fig 3: AWD Circuit
