System Wiring Diagrams: Radio

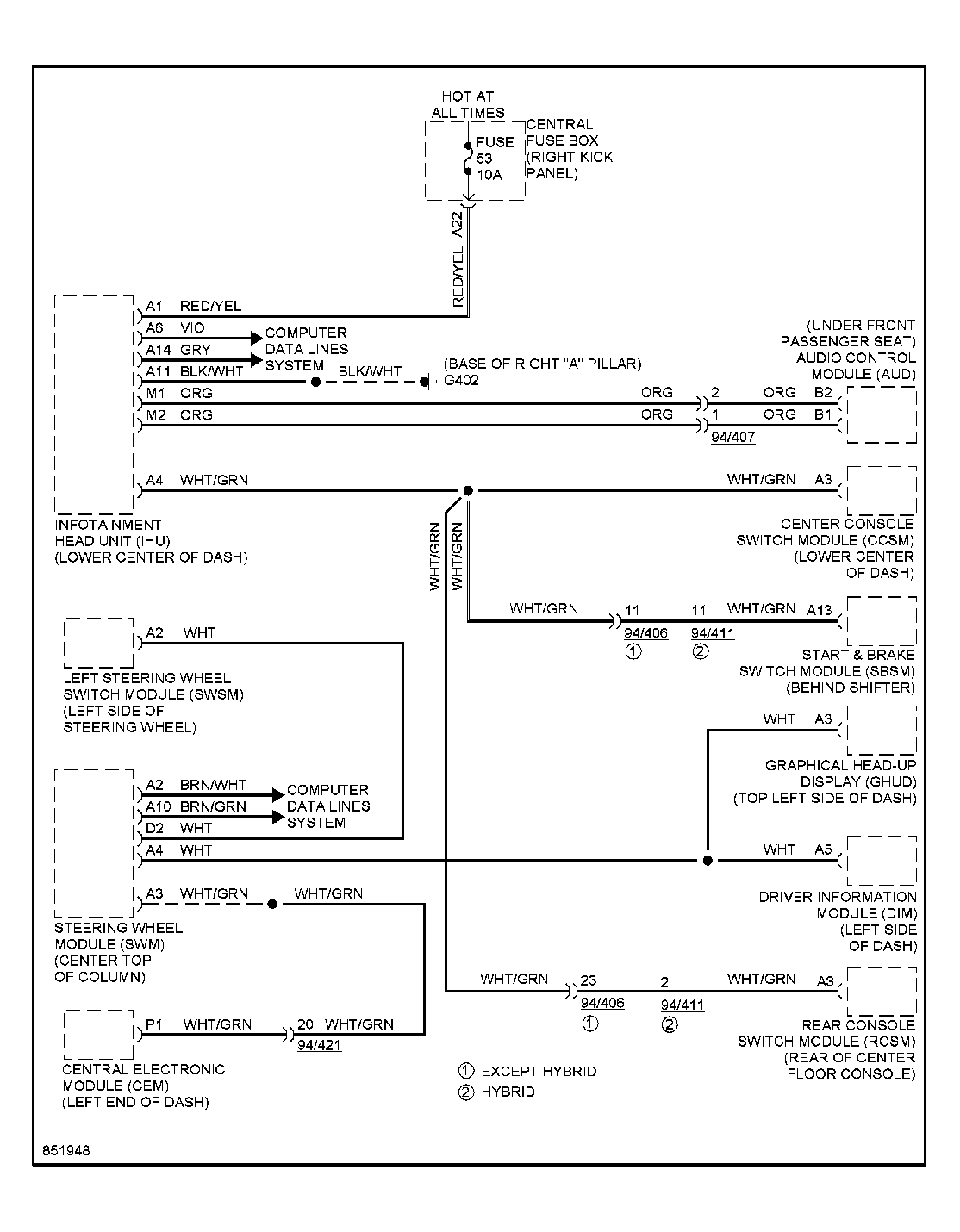

Fig 1: MOST Data Bus Circuit

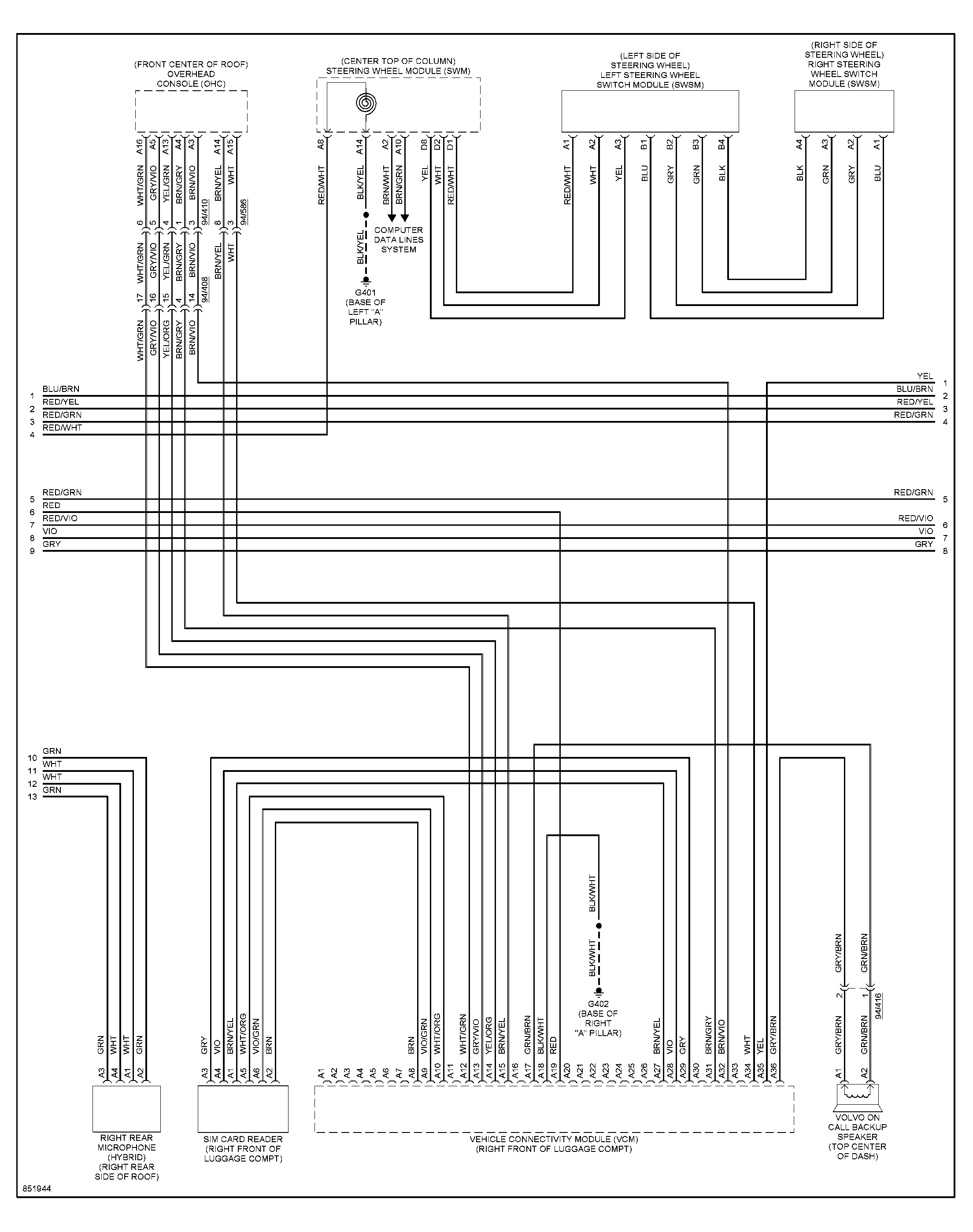

Fig 2: Radio Circuit (1 of 5)

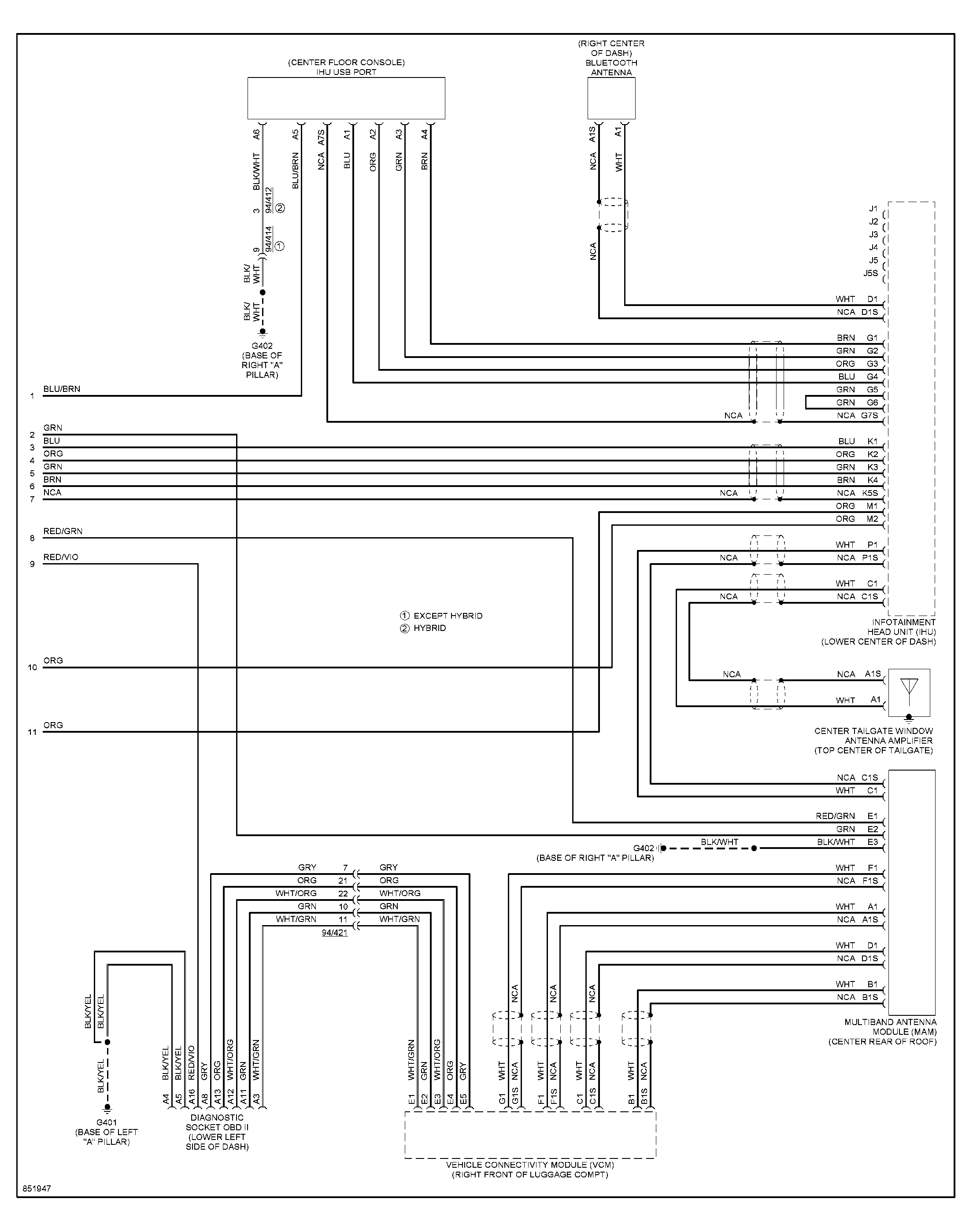

Fig 3: Radio Circuit (2 of 5)

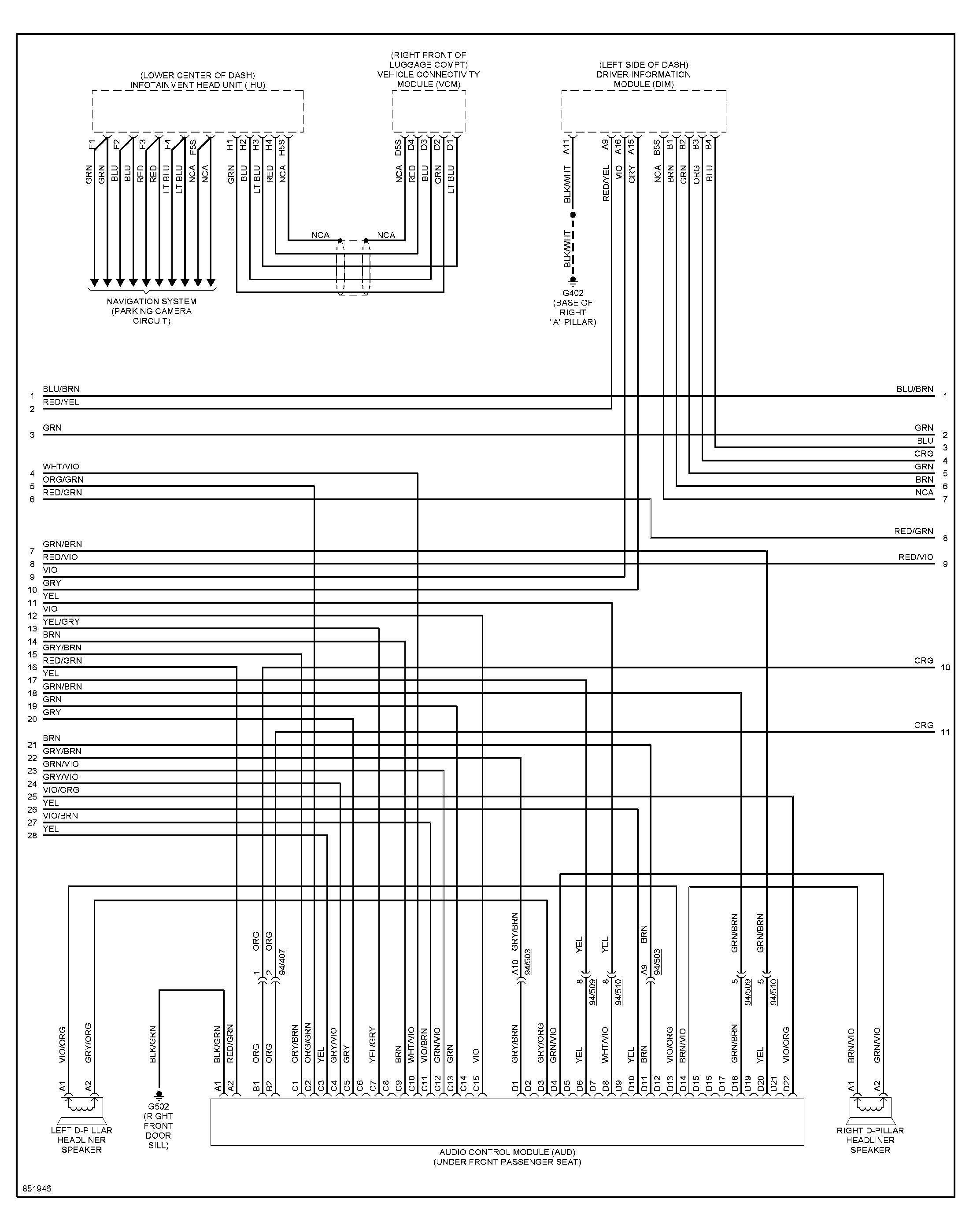

Fig 4: Radio Circuit (3 of 5)

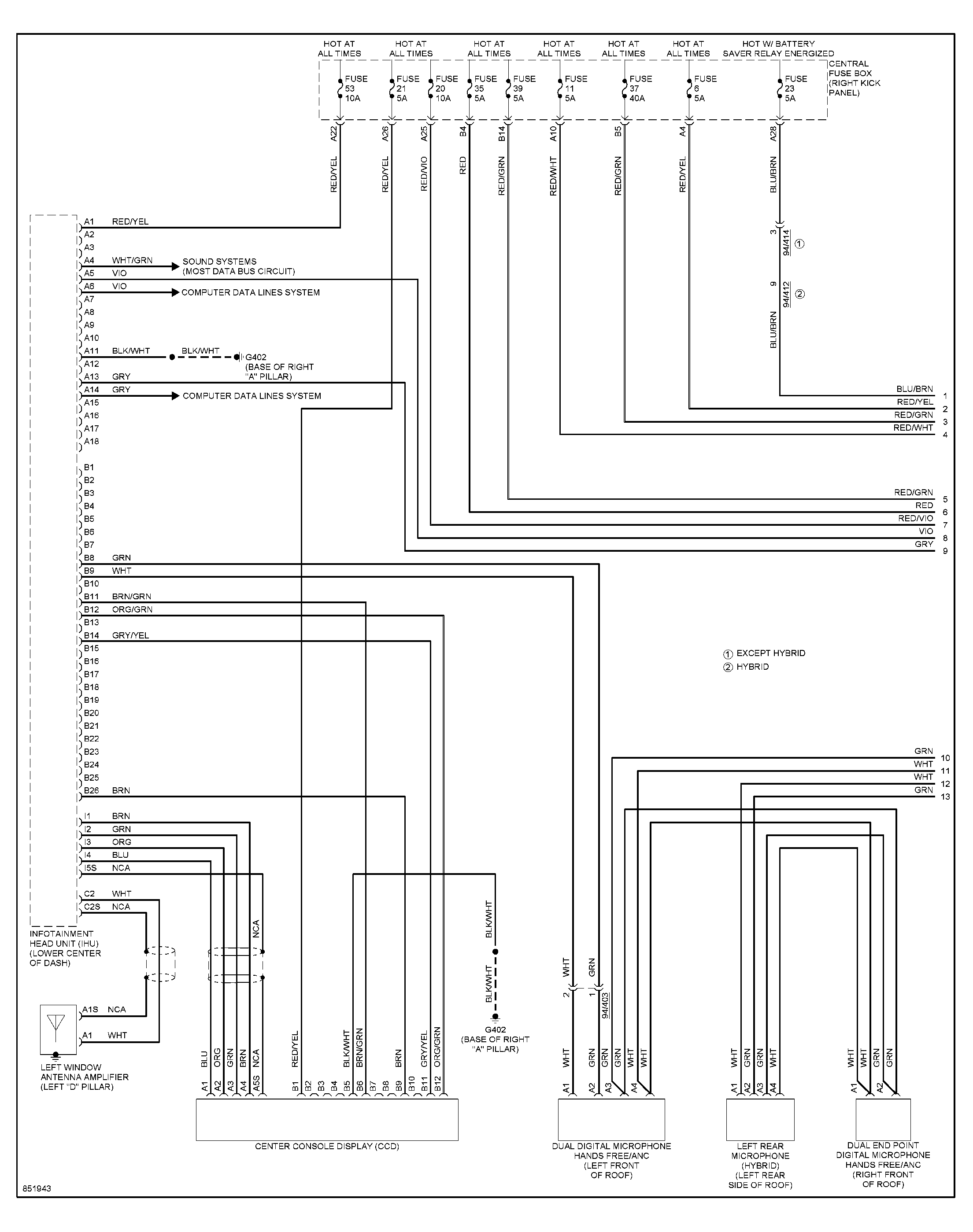

Fig 5: Radio Circuit (4 of 5)

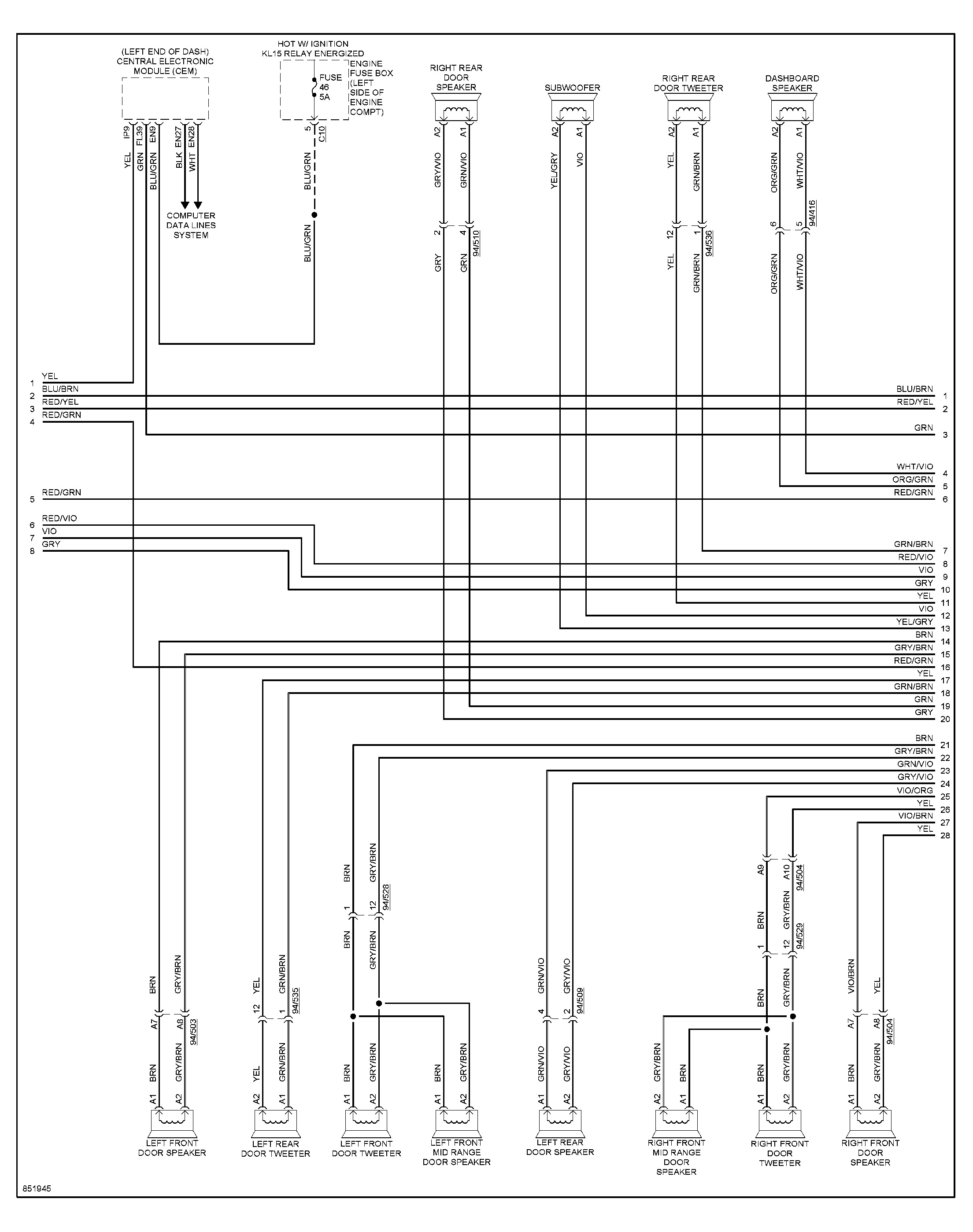

Fig 6: Radio Circuit (5 of 5)
