Power Seats

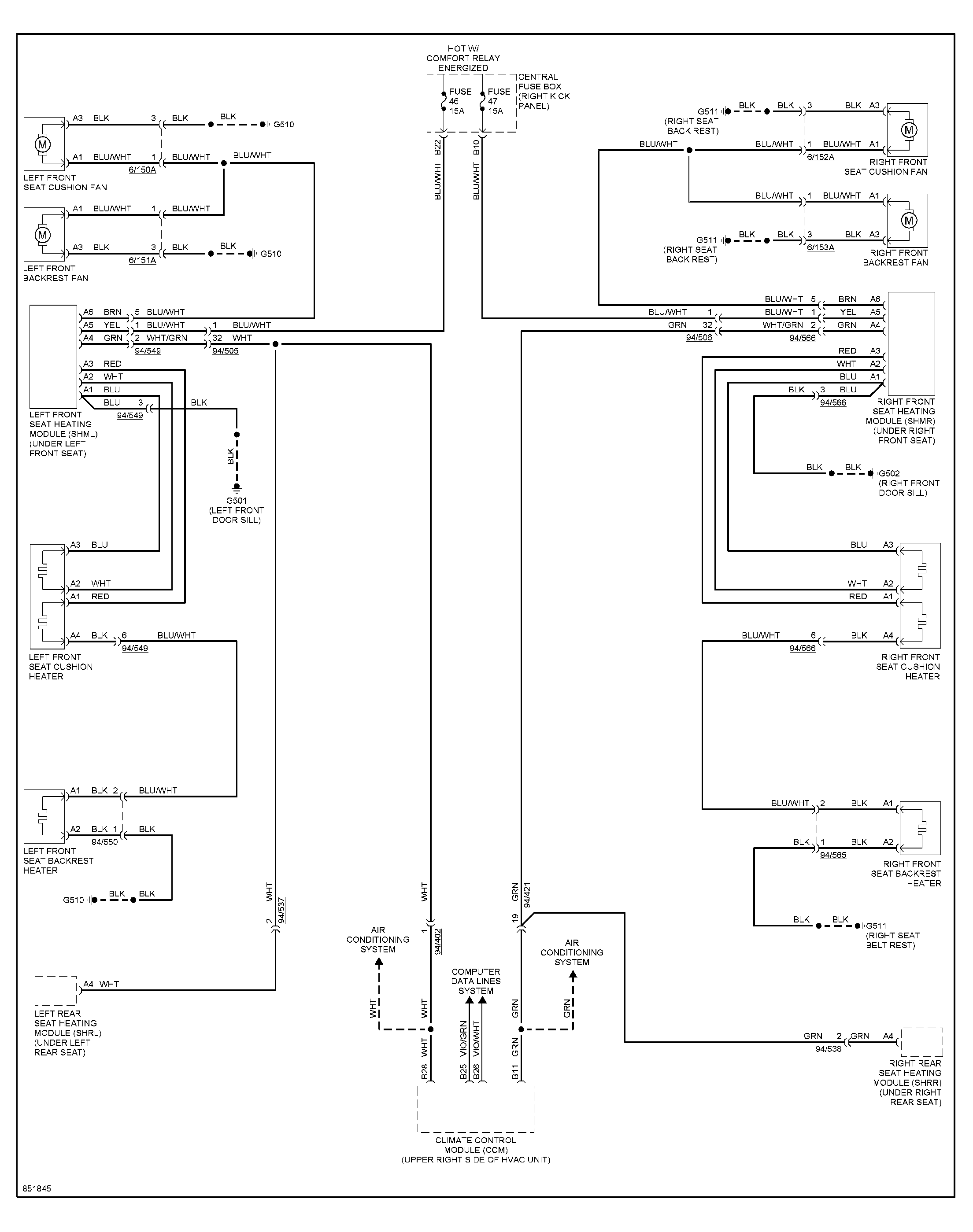

Fig 1: Front Heated Seats Circuit

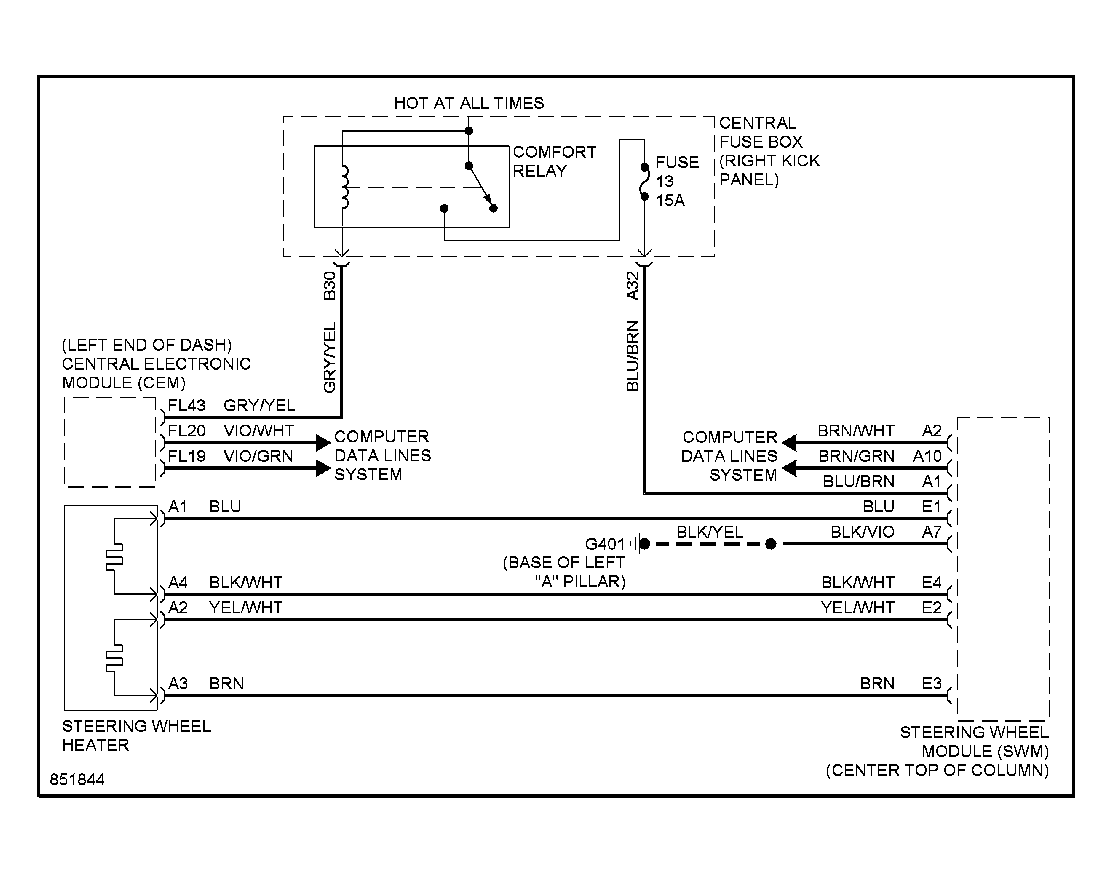

Fig 2: Heated Steering Wheel Circuit

Fig 3: Rear Head Restraint Circuit
