Rear Door Module RDM [2016-2020]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Remove panel side door rear, refer to: PANEL REAR DOOR

Courtesy of VOLVO CARS CORPORATION

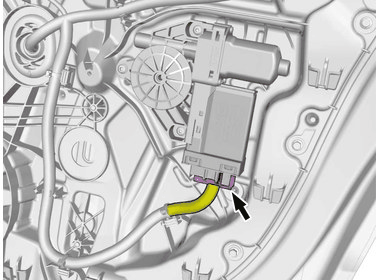

Release the connector's catch.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

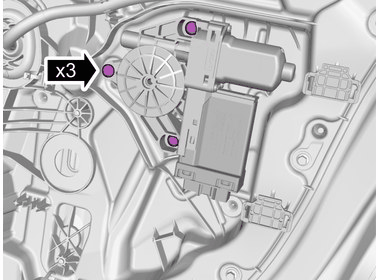

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

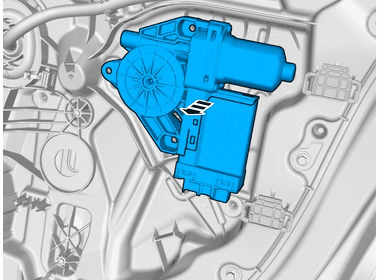

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

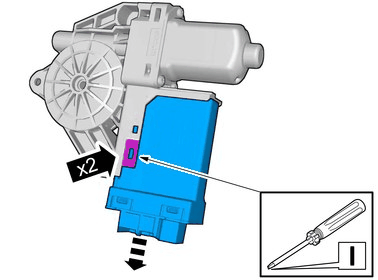

Release the catches.

Remove the marked part.

Use:  Electrician's screwdriver
