Power Steering Delivery Pipe [2015-2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain reservoir fluid power steering

Remove right front wheel, refer to: WHEELS

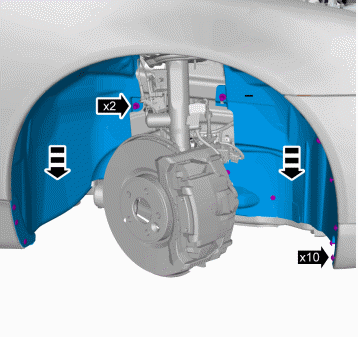

GLL161866Courtesy of VOLVO CARS CORPORATION

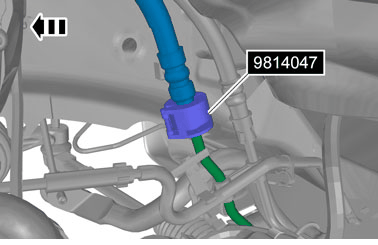

GLL178555Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that all openings are sealed.

Special Tool: 981 4047

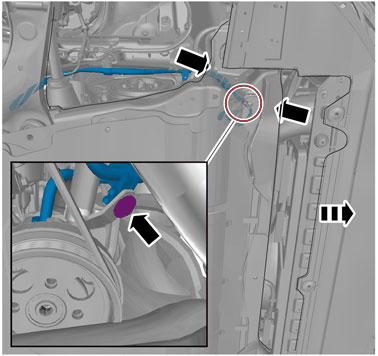

GLL178554Courtesy of VOLVO CARS CORPORATION

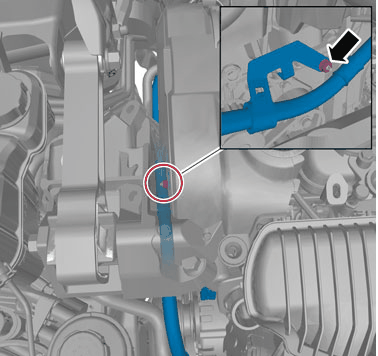

GLL178556Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

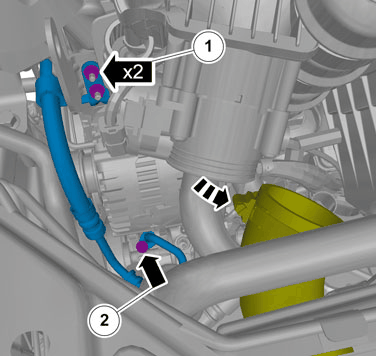

GLL178557Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

  1. Torque:  M7, 17Nm
  2. Torque:  M6, 10Nm
