Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Set the vehicle to Inactive mode, described in user mode. Refer to: [USAGE MODE]
Follow instructions for lifting points body frame. Refer to: [JACKING POINTS BODY]

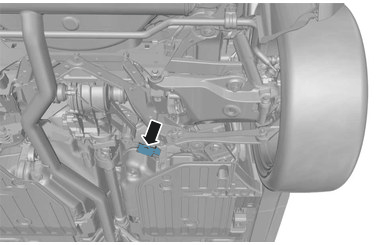

ORIENTATION VIEW
APPLIES TO THE RIGHT-HAND SIDE

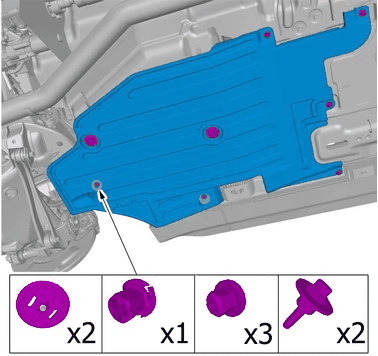

Remove the fasteners.
Remove the marked part.
Use: Unit lift

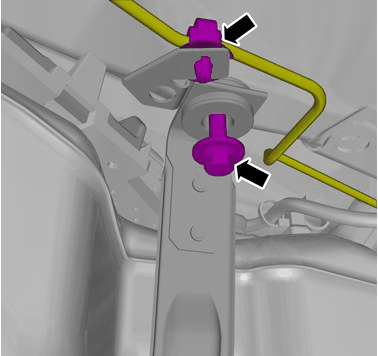

Loosen the clip.

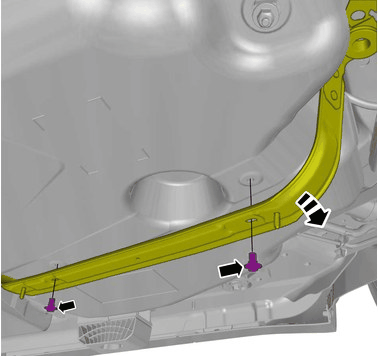

Remove the screw.
Torque: M8, 24Nm

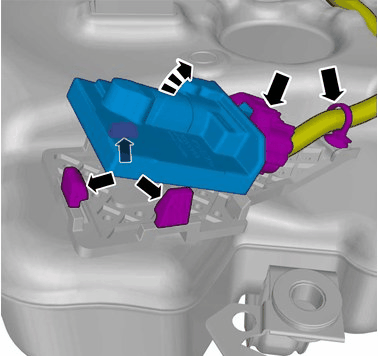

Carefully bend the clips loose without damaging the clip mountings in the bottom of the tank.
Loosen the marked detail/details.
INSTALLATION
To install, reverse the removal procedure.
VEHICLES WITH GASOLINE ENGINES
Reset according to: Diagnostics / Components / Control modules / Engine control module (ECM) / Diagnostic Sequences/Resetting adaptations for the fuel pump, low pressure side
