Component Location, Engine Control Module (ECM) [2014-2016, B6304T4 | 2015-2016, B6304T5]

LOCATION OF COMPONENTS

Courtesy of VOLVO CARS CORPORATION

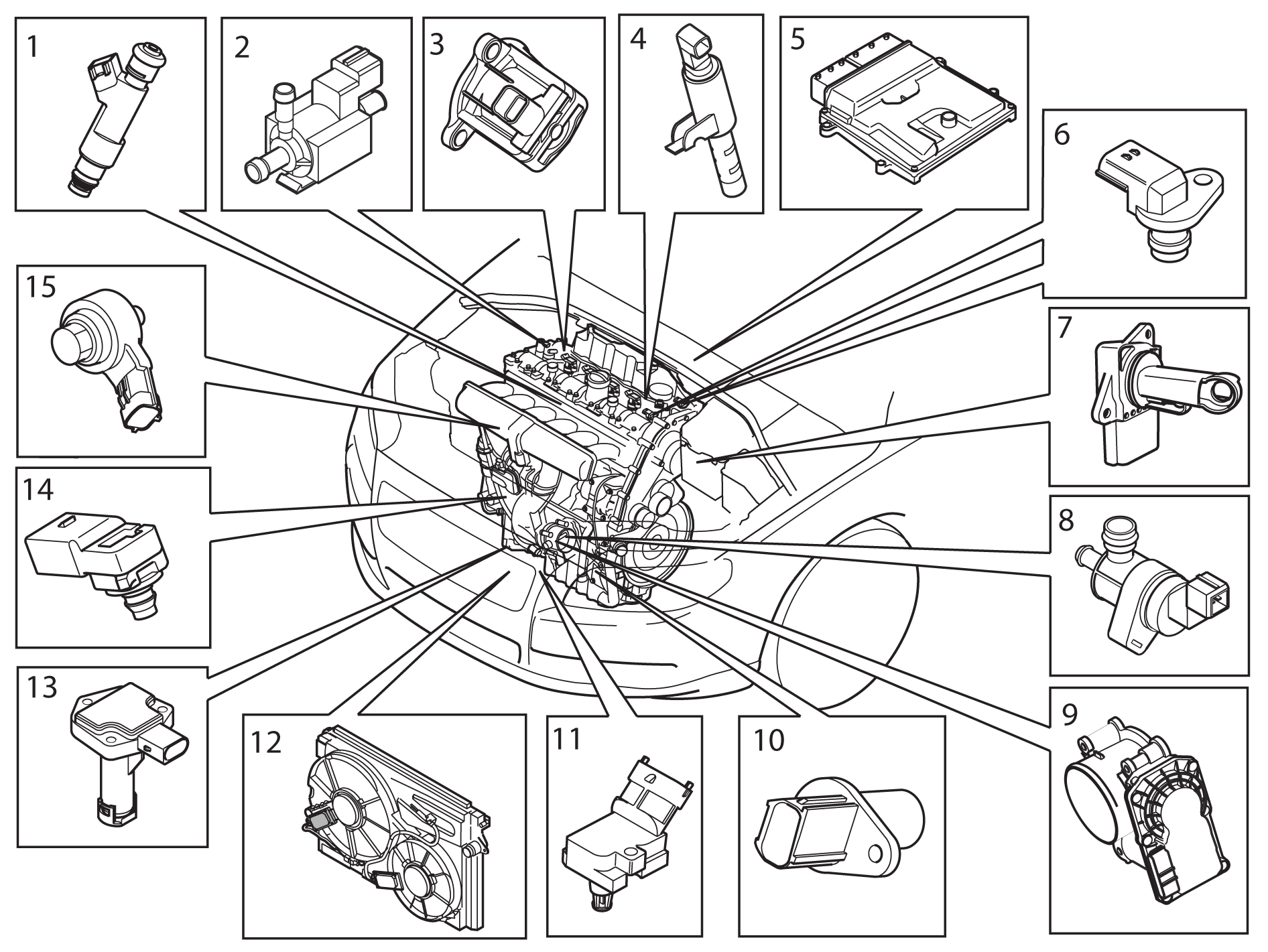

Location of components

1. Injectors x 6
2. Turbocharger (TC) control valve
3. Relief valve.
4. Reset valve camshaft (CVVT)
5. Engine control module (ECM).
6. Camshaft sensor, 2 x.
7. Mass airflow sensor/air temperature sensor.
8. Evaporative emission system (EVAP) valve.
9. Throttle unit.
10. Engine speed (RPM) sensor.
11. Charge pressure sensor.
12. Engine cooling fan (FC).
13. Oil level sensor.
14. Intake pressure sensor.
15. Knock sensor, x 2
