Volvo
>>
2017
>>
S90 T5 Inscription
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
System Wiring Diagrams
>>
Warning Systems
Warning Systems

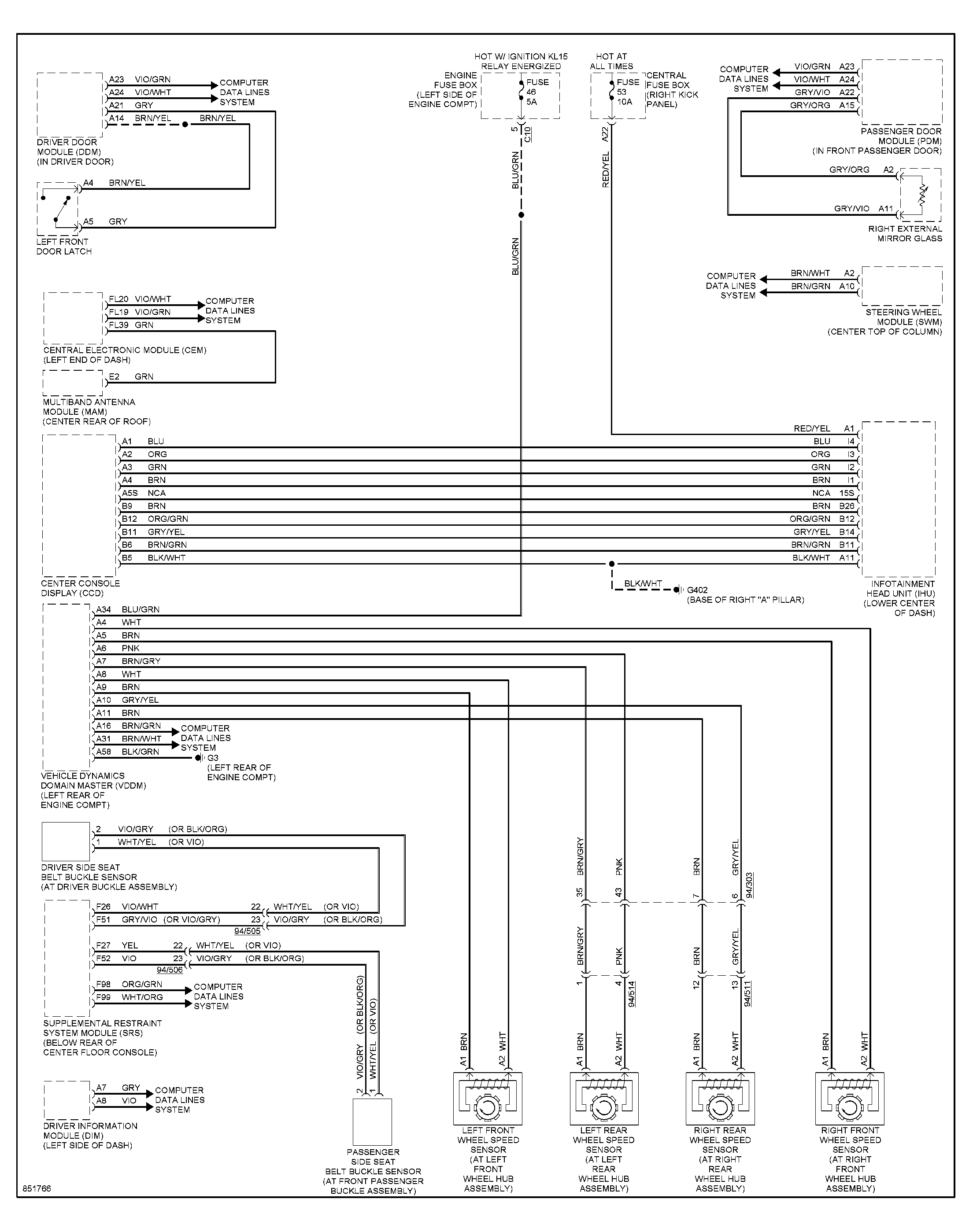

Fig 1: Warning Systems Circuit
