Front Bumper Cover, Transferring Components: Removal

VEHICLES WITH PARKING ASSISTANCE CAMERA

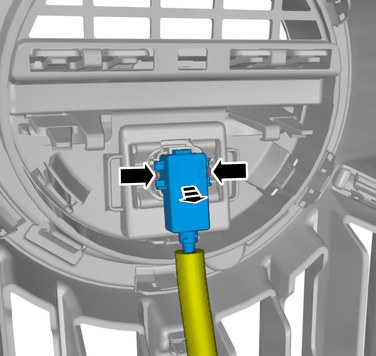

GLL1032275Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

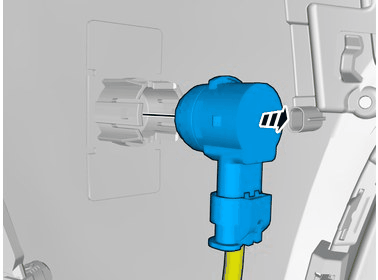

GLL1006395Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Fold marked part aside.

Repeat on the other side.

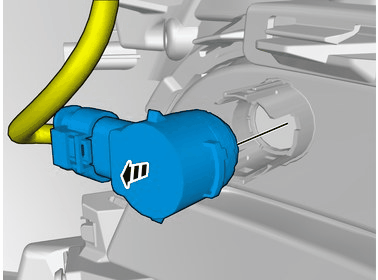

GLL1026515Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Fold marked part aside.

Repeat on the other side.

ALL VEHICLES

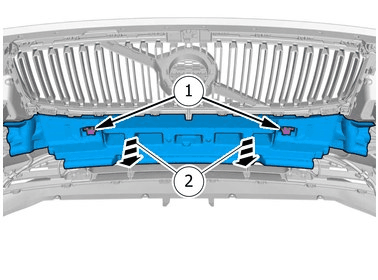

GLL1010447Courtesy of VOLVO CARS CORPORATION
  1. Release the catches.
  2. Remove the marked part.

VEHICLES WITH HEADLAMP WASHERS

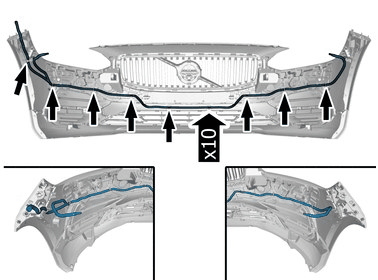

GLL1022671Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH FRONT FOG LAMPS

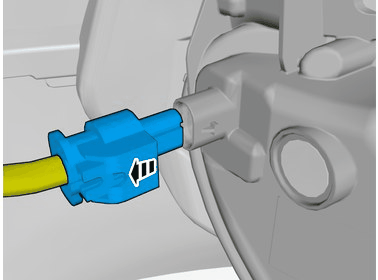

GLL1010262Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Repeat on the other side.

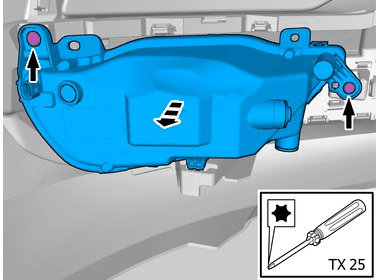

GLL1036634Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Repeat on the other side.

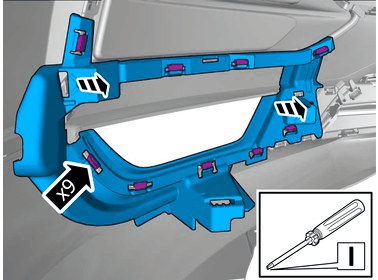

GLL1019317Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

Repeat on the other side.

ALL VEHICLES

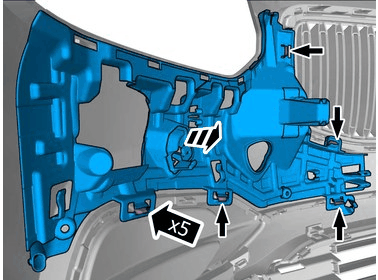

GLL1025319Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

Repeat on the other side.

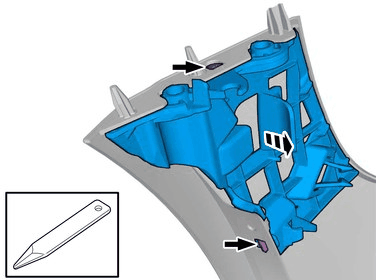

GLL1020339Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

Repeat on the other side.

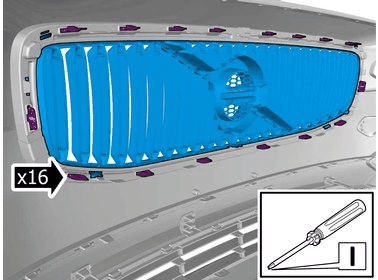

GLL1024431Courtesy of VOLVO CARS CORPORATION
NOTE:

The graphic shows the back of the component before removal.

Release the catches.

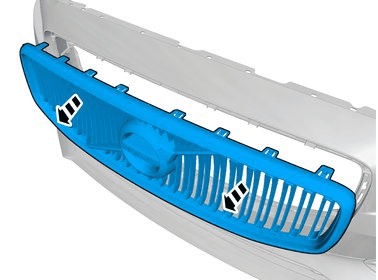

GLL1005603Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

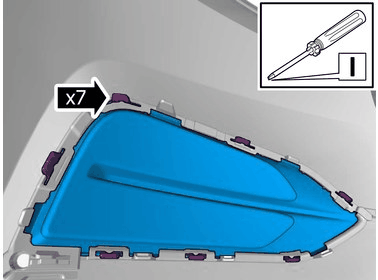

GLL1037569Courtesy of VOLVO CARS CORPORATION
NOTE:

The graphic shows the back of the component before removal.

Release the catches.

Remove the marked part.

Repeat on the other side.

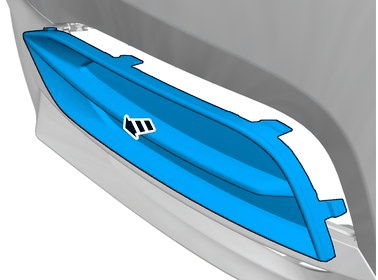

GLL1027125Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Repeat on the other side.

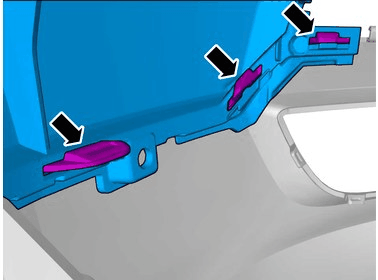

GLL1029580Courtesy of VOLVO CARS CORPORATION
NOTE:

The graphic shows the back of the component before removal.

Release the catches.

Repeat on the other side.

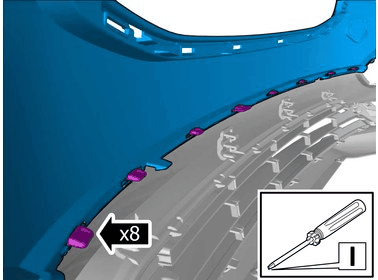

GLL1033097Courtesy of VOLVO CARS CORPORATION
NOTE:

The graphic shows the back of the component before removal.

Release the catches.

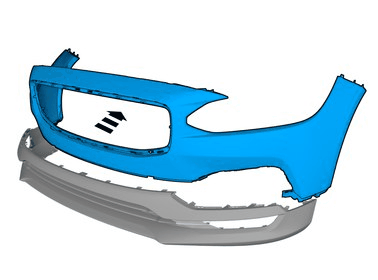

GLL1017646Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
