Side Members, Front Dimensions [2017]

Courtesy of VOLVO CARS CORPORATION

1. Measure from the center.
2. Measure from the edge.
3. Measure from the cut edge.

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. See image. If only a measuring point symbol is shown this applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the figure.

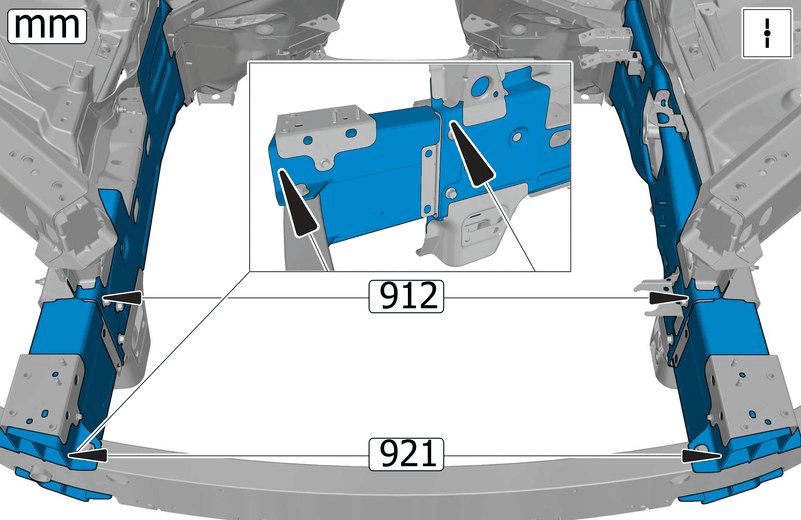

Fig 1: Front Side Members Dimensions And Measurement Points (1 Of 7)

Courtesy of VOLVO CARS CORPORATION

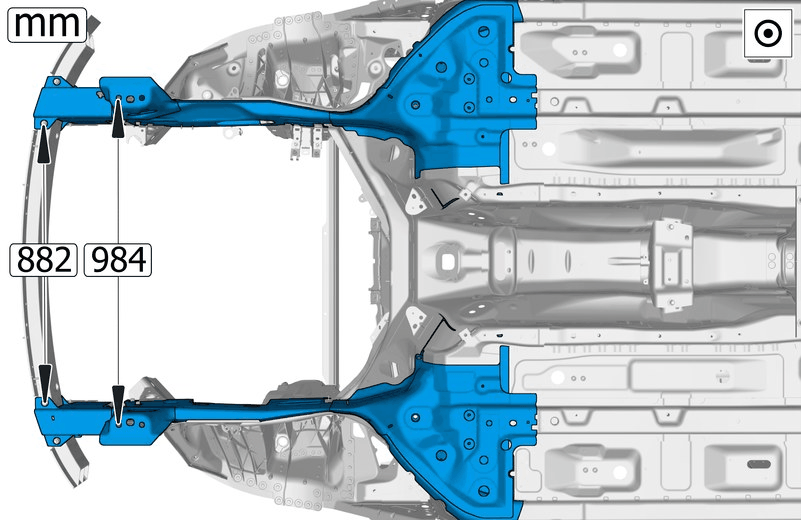

Fig 2: Front Side Members Dimensions And Measurement Points (2 Of 7)

Courtesy of VOLVO CARS CORPORATION

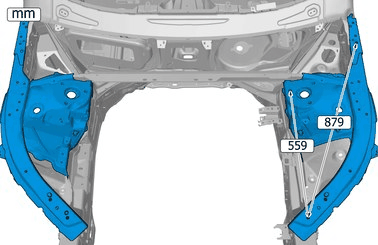

Fig 3: Front Side Members Dimensions And Measurement Points (3 Of 7)

Courtesy of VOLVO CARS CORPORATION

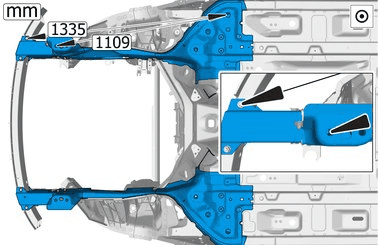

Fig 4: Front Side Members Dimensions And Measurement Points (4 Of 7)

Courtesy of VOLVO CARS CORPORATION

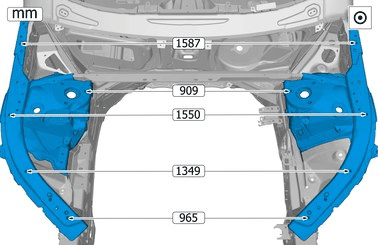

Fig 5: Front Side Members Dimensions And Measurement Points (5 Of 7)

Courtesy of VOLVO CARS CORPORATION

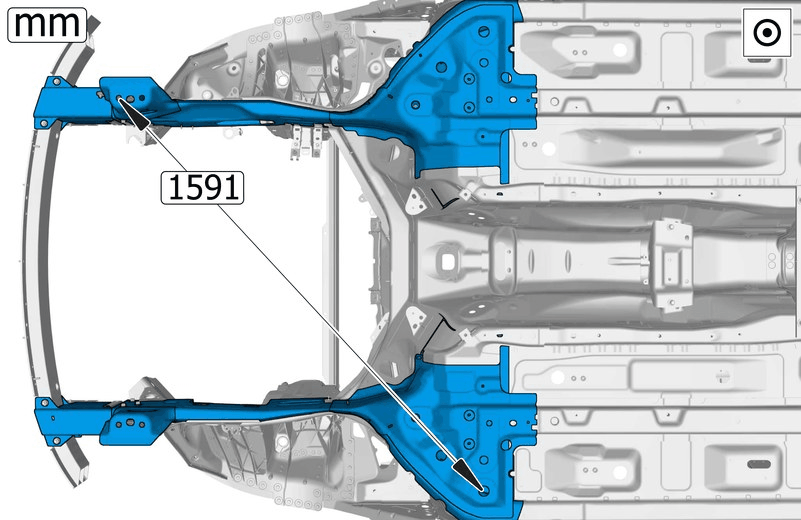

Fig 6: Front Side Members Dimensions And Measurement Points (6 Of 7)

Courtesy of VOLVO CARS CORPORATION

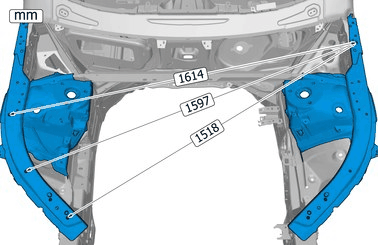

Fig 7: Front Side Members Dimensions And Measurement Points (7 Of 7)

Courtesy of VOLVO CARS CORPORATION
