System Overview: Signals

WARNING: This page is about a different variant/trim than selected.

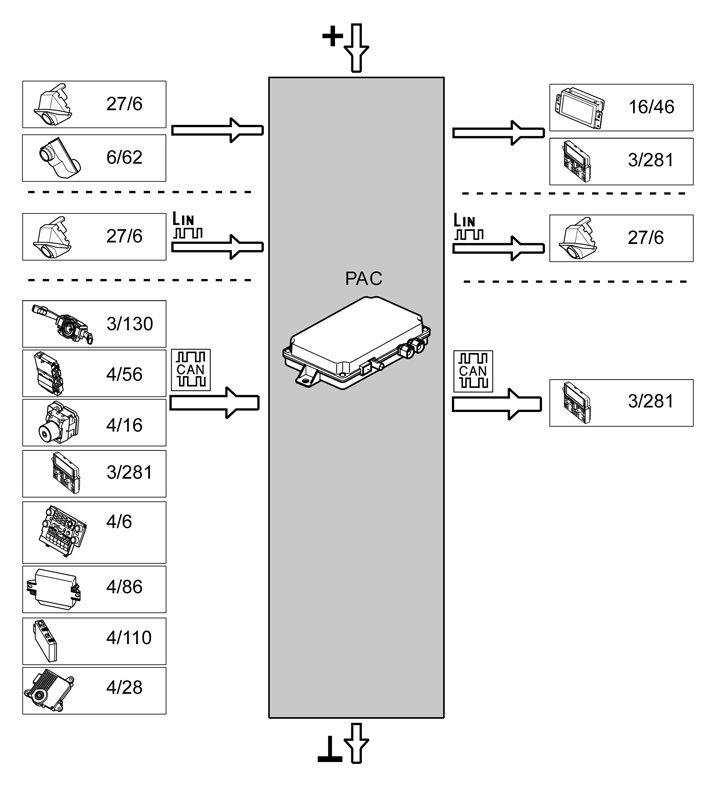

The table below summarizes the input signals to and output signals from the Parking Assistance Camera (PAC). The signal types are divided into directly connected signals, LIN communication and controller area network (CAN) communication. The illustration below displays the same information with the Volvo component designations.

Input signals:	Output signals:
Directly connected:	Directly connected:
Rear camera (27/6) Sideview camera (6/62) (only Japanese market, (not S60 (11-) /V60))	High Level Display Front (HLDF) (16/46) (only XC60 before structure week 201046) Infotainment control module (ICM) (3/281) video signal to screen (only S60 (11-), V60 and XC60 (XC60 from structure week 201046))
Via LIN communication:	Via LIN communication:
Rear camera (27/6)	Rear camera (27/6)
Via Controller Area Network (CAN) communication:	Via Controller Area Network (CAN) communication:
Steering wheel angle sensor module (SAS) (3/130) Central electronic module (CEM) (4/56) Brake control module (BCM) (4/16) Infotainment control module (ICM) (3/281) Climate control module (CCM) (4/6) (not S60 (11-), V60 or XC60 (XC60 to structure week 201046)) Parking Assistance Module (PAM) (4/86) Trailer module (TRM) (4/110) (accessory) Transmission Control Module (TCM) (4/28)	Infotainment control module (ICM) (3/281)
