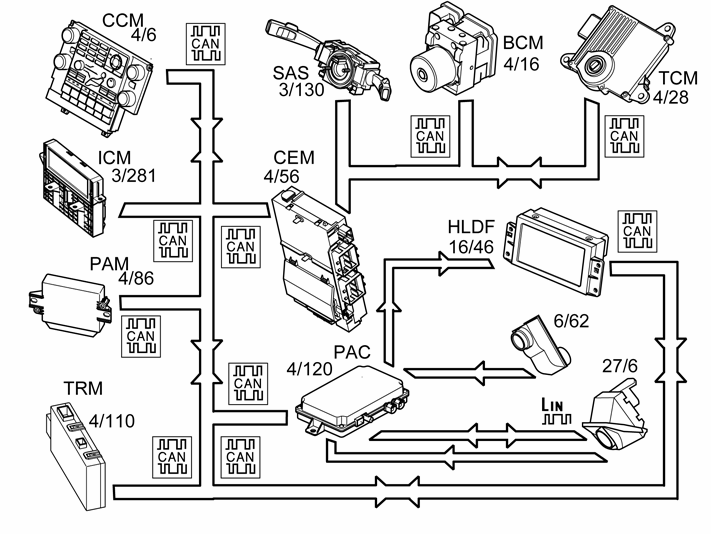

XC60 (before structure week 201046)

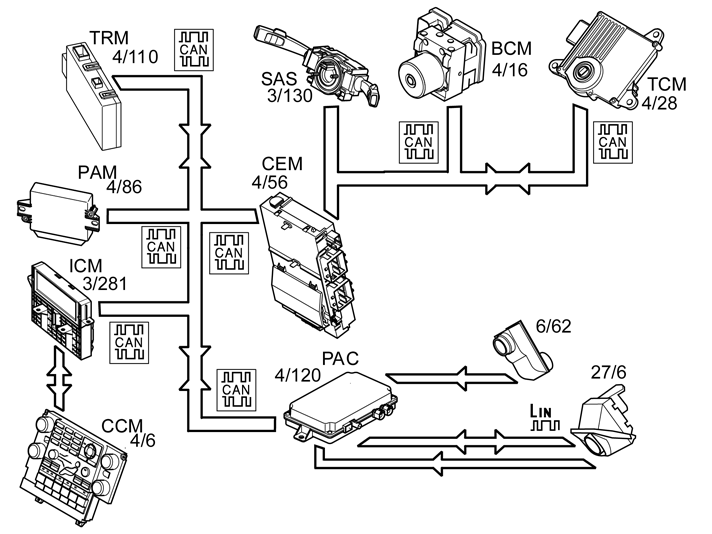

S60 (11-), V60 and XC60 (XC60 from structure week 201046)
The Parking Assistance Camera (PAC) (4/120) controls the rear camera (27/6) via LIN-communication. The camera transmits a LVDS video signal to the Parking Assistance Camera (PAC). The Parking Assistance Camera (PAC) converts this signal to an NTSC video signal, which is transmitted to the High Level Display Front (HLDF) (16/46) for XC60 (before structure week 201046) and for the screen in Infotainment control module (ICM) for S60 (11-), V60 and XC60 (XC60 from structure week 201046).
XC60 on the Japanese market is equipped with a side-view camera (6/62) that sends an analogue video signal to Parking Assistance Camera (PAC). Parking Assistance Camera (PAC) converts this signal to an NTSC video signal that is sent on to the High Level Display Front (HLDF) (16/46). For XC60 after structure week 201046 the signal is sent to the screen in Infotainment control module (ICM).
For S60 (11-), V60 and XC60 (XC60 from structure week 201046) it is also possible to activate automatic or manual zooming. In this mode it is also possible to activate guidelines for trailer hitch. Automatic setting is activated from the menu in Infotainment control module (ICM).
In order for the Parking Assistance Camera (PAC) to work, it needs the following signals:
- Information is received about the steering wheel angle from the Steering wheel angle sensor module (SAS) (3/130) via the Central electronic module (CEM) (4/56).
- Information is received about settings for the Parking Assistance Camera (PAC) from the Infotainment control module (ICM) (3/281).
- Information is received about switches for activating the Parking Assistance Camera (PAC) (only XC60 before structure week 201046) from the Climate control module (CCM) (4/6).
- Information is received from Infotainment control module (ICM) about switches for activating Parking Assistance Camera (PAC) (only S60 (11-), V60 and XC60 (XC60 from structure week 201046))
- Information is received about the distance to the rear object from the Parking Assistance Module (PAM) (4/86).
- Information about whether a trailer is attached or not is received from the Trailer module (TRM) (4/110).
- Information is received about which gear is engaged is received from the Transmission control module (TCM) (4/28) via the Central electronic module (CEM).
- Information about the vehicle's speed is received from the Brake control module (BCM) (4/16) via the Central electronic module (CEM).
The Parking Assistance Camera (PAC) transmits information about the following signals:
- Signals about the request of displaying the parking view as well as signals about activating the monitor are transmitted to the Infotainment control module (ICM).
Other signals needed for the Parking Assistance Camera (PAC) to work are:
- Information about what is to be displayed in the monitor (only XC60 before structure week 201046) from the Infotainment control module (ICM) to the High Level Display Front (HLDF).
