System Overview: Signals
WARNING: This page is about a different variant/trim than selected.

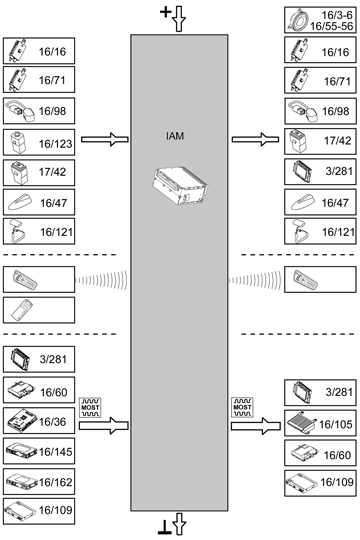

The table below summarizes the input signals to and output signals from the Integrated Audio Module (IAM). The signal types are divided into directly connected signals, Bluetooth, and MOST-communication. The illustration below displays the same information with the Volvo component designations.
| Input signals |
Output signals |
| Directly connected: |
Directly connected: |
- Power supply
- Ground
- Antenna booster (AM/FM1) (Antenna signal) (16/16)
- Antenna booster (FM2) (Antenna signal) (16/71)
- Microphone (signal) (16/98)
- AUX input (16/123)
- USB/iPod input (17/42)
- GPS-antenna (16/47) (only vehicles with option navigation)
- VICS-antenna (16/121) (traffic information/navigation only Japanese market)
|
- Loudspeaker (16/3-6, 16/55-56), 6 (Performance) or 4 (Base, front doors only)
- Microphone (phantom feed) (16/98)
- Antenna booster (AM/FM1) (voltage feed) (16/16)
- Antenna booster (FM2) (voltage feed) (16/71)
- USB/iPod input (17/42)
- Infotainment control module (ICM) (3/281) composite video signal (CVBS)
- GPS-antenna (16/47) (phantom-feed) (only vehicles with option navigation)
- VICS-antenna (16/121) (traffic information/navigation only Japanese market) (phantom-feed)
|
| Via Bluetooth: |
Via Bluetooth: |
- Telephone handsfree (High performance, High performance multimedia, and Premium sound multimedia).
- Infotainment remote control (option)
|
- Telephone handsfree (High performance, High performance multimedia, and Premium sound multimedia).
|
| Via MOST communication: |
Via MOST communication: |
- Infotainment control module (ICM) (3/281)
- Phone module (PHM) (16/60).
- Television Module (TVM) (16/36)
- Remote Digital Audio Receiver (RDAR) (16/145) (market-dependent) (option)
- Digital Audio Broadcast Module (DABM) (16/162) (market-dependent) (option)
- Rear seat entertainment module (RSE) (16/109) (option) (model-dependent)
|
- Infotainment control module (ICM) (3/281)
- Audio module (AUD) (16/105) (High performance, High performance multimedia, and Premium sound multimedia).
- Phone module (PHM) (16/60).
- Rear seat entertainment module (RSE) (16/109) (option) (model-dependent)
|
