Controlling Functions

Courtesy of VOLVO CARS CORPORATION

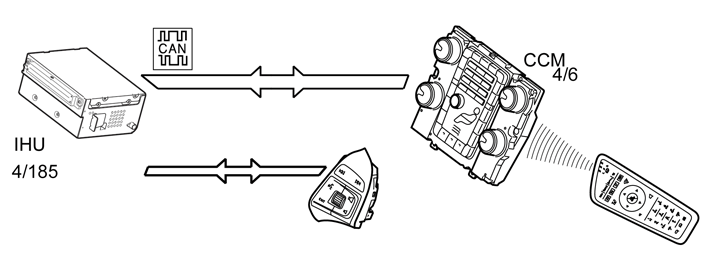

The functions in the Infotainment Head Unit (IHU) (4/185) are controlled with the keypad on Climate Control Module (CCM) (4/6), the Infotainment remote control or via Steering Wheel Switch Right (SWSR). The signals from the keypad on Climate Control Module (CCM) are sent via the CAN. The signals from Steering Wheel Switch Right (SWSR) are sent via LIN. The signals from the remote control are sent via IR.

The following can be controlled using the keypads:

• Scroll/forward/search

  A short button press scrolls between disc tracks, preset radio stations (not on digital radio) or chapter (only for DVDs). A long button press fast forwards disc tracks or searches for the next available radio station.

• VOL

  Regulating volume, up and down.

• OK/MENU

  Press the thumbwheel in the steering wheel or button on the center console to accept menu options. If you are in the main view and press OK/MENU, a menu for the selected media source (e.g. RADIO or MEDIA) appears. An arrow appears to the right of the screen when there are sub menus.

• TUNE

  Turn the thumbwheel in the steering wheel or the knob on the center console to scroll between disc tracks, folders, radio and television stations (option), phone contacts (option) or to navigate through options on the screen.

• EXIT

  A short press of the button leads up in the menu system, stops the current function, ends or rejects calls or erases entered characters. A long press leads to the main view, or if you are already in the view for the top menu level, from which the same options as the buttons on the center console can be reached.

• MUTE (applies to vehicles without navigation)

  One button press mutes the sound from the selected media source, or switches it back on if it has been switched off.

• Voice control (applies to vehicles with navigation)

  One button press activates voice control (for Bluetooth®- connected mobile telephone and navigation system).

For more information about the keypad on the Climate Control Module (CCM), see DESIGN AND FUNCTION - CLIMATE CONTROL MODULE (CCM) .
