Accessory Connectivity Unit (ACU) [2011-2018]: Design: Microphone

WARNING: This page is about a different variant/trim than selected.

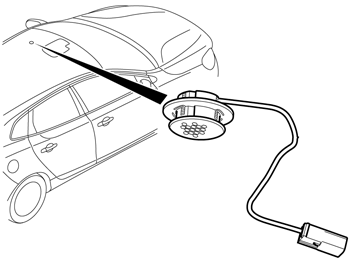

GLL1031808Courtesy of VOLVO CARS CORPORATION

The microphone is directly connected to the ACU. The microphone sends analogue signals to the control module. The microphone is phantom supplied via the control module.
