BLUETOOTH Control Module [2011]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

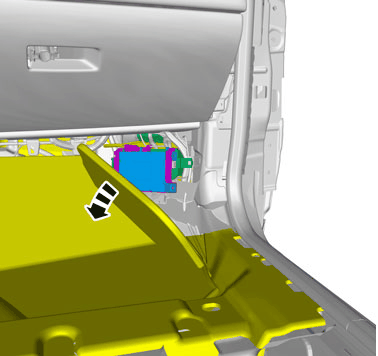

Remove glove compartment, refer to: GLOVE COMPARTMENT

Courtesy of VOLVO CARS CORPORATION

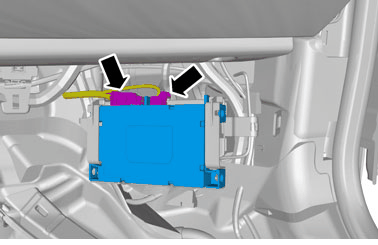

NOTE:

Make sure that the component terminals are not bent or damaged.

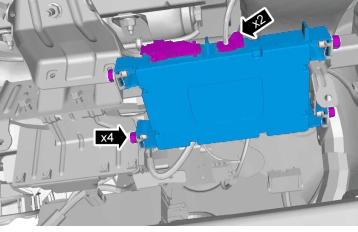

Torque: M6, 10Nm

VEHICLES WITH CELLULAR PHONE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES
