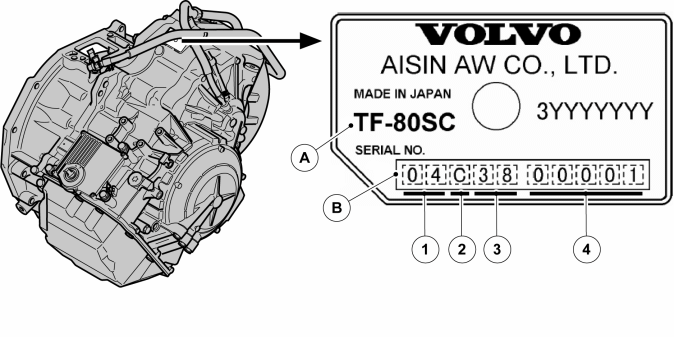

Identification Plate

GLL1037974Courtesy of VOLVO CARS CORPORATION

A. Model number ( ransverse wd, lipping lock-up, integrated omputer)

B. Serial number

  1. Production year (04 indicates 2004)
  2. Production month (C indicates March, see table below)
  3. Transmission model (38 indicates TF-80SC)
  4. Sequence number
  A B C D E F G H J K L M
Month  1 2 3 4 5 6 7 8 9 10 11 12
