Induction Pipe [2007-2010, B8444S]: Installation

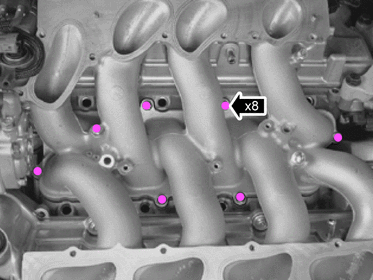

GLL155593Courtesy of VOLVO CARS CORPORATION

Torque:  Induction pipe, 19Nm

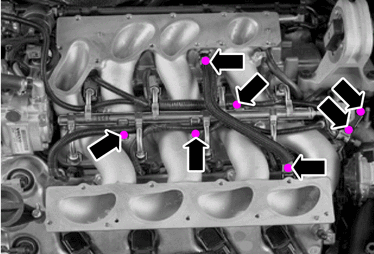

GLL155592Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

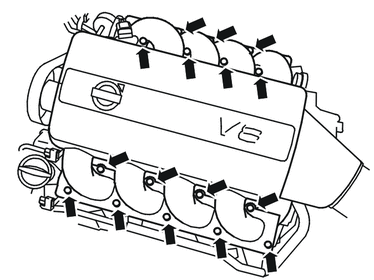

GLL149940Courtesy of VOLVO CARS CORPORATION

Torque:  Induction pipe, 19Nm

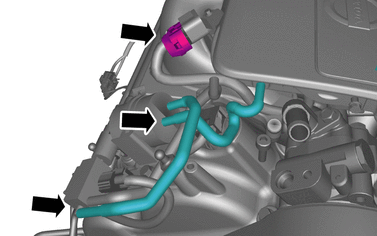

GLL154321Courtesy of VOLVO CARS CORPORATION

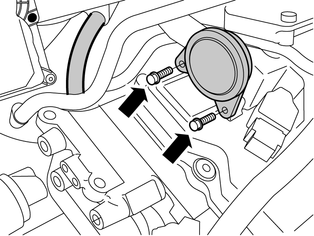

GLL1019508Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

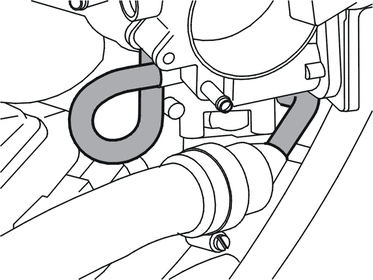

GLL149935Courtesy of VOLVO CARS CORPORATION

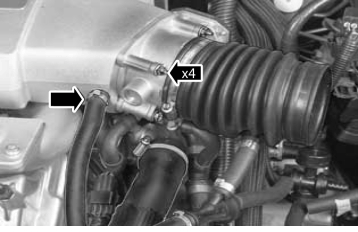

GLL154323Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

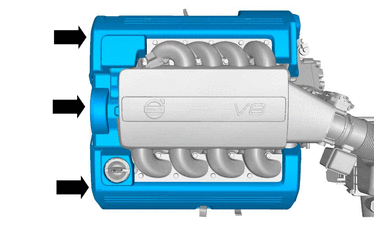

GLL154050Courtesy of VOLVO CARS CORPORATION

Install pump power steering, refer to: POWER STEERING PUMP

Perform filling, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING
