Central Electronic Module (CEM) Connector End View (4/56:C2)

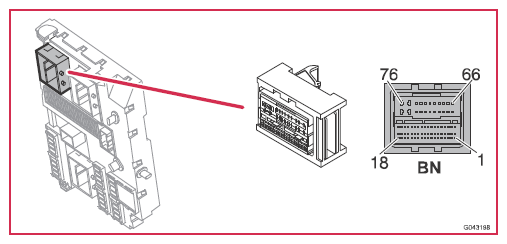

Fig 1: Central Electronic Module (CEM) Connector End View (4/56:C2)

G10805228

Courtesy of VOLVO CARS CORPORATION
